Schneider Electric Thermal Overload Relay TeSys K-Line 0.54-0.8A 690V AC TP
£44.32 Incl. VAT

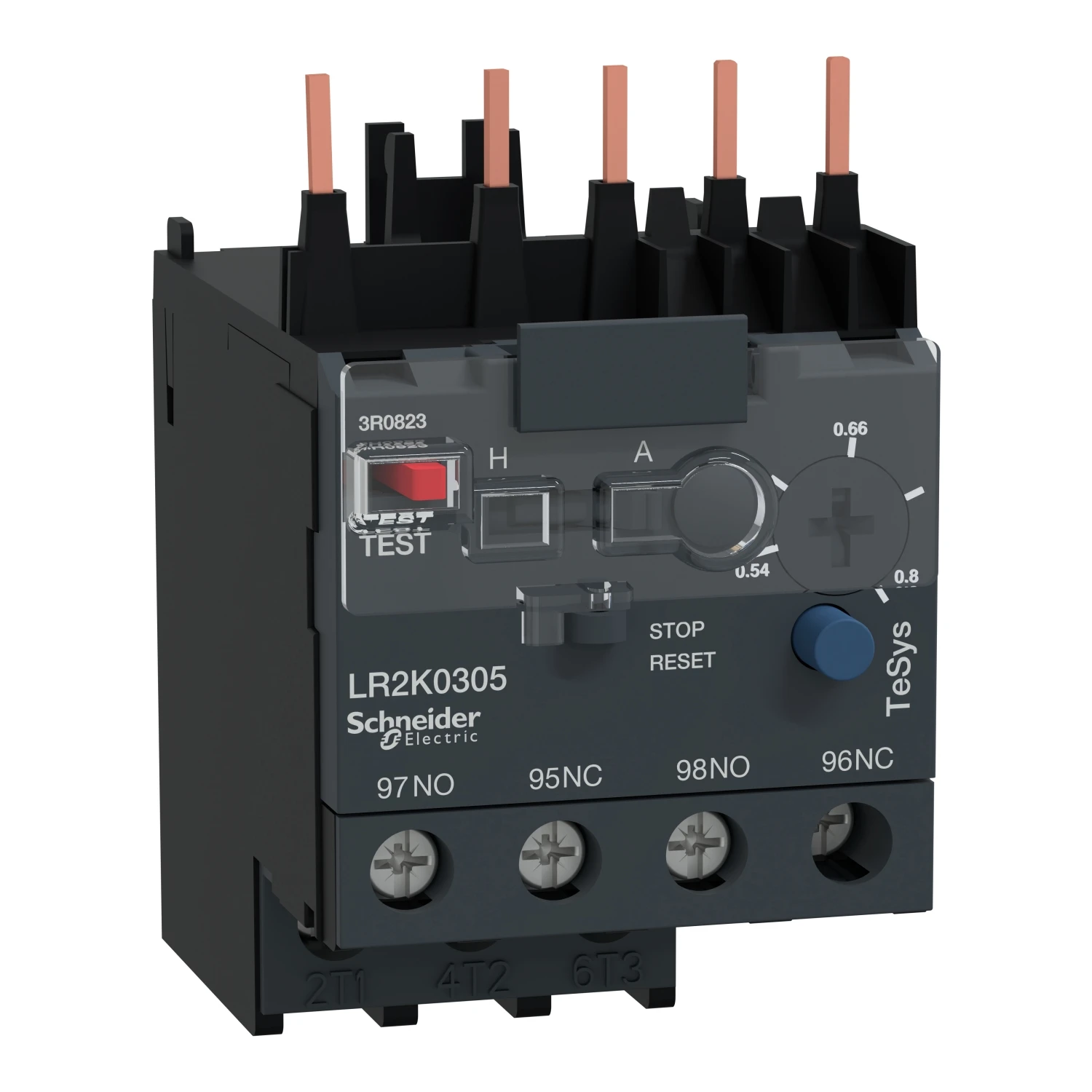

TeSys LRK thermal overload relay, 0.8A/690V, thermal setting range 0.54-0.8A, tripping class 10A, for protection of 3-phase motors 0.18kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test slide switch for simulation of a tripping, reset/stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1K06-K16. Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). · · · TeSys LRK thermal overload relay, 0.8A/690V, thermal setting range 0.54-0.8A, tripping class 10A, for protection of 3-phase motors 0.18kW@400V. · · Differential device with phase failure and load unbalance detection. · · It provides a thermal adjustement dial, a manual-automatic reset selector, a test slide switch for simulation of a tripping, reset/stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. · · Settings are protected by a transparent cover lockable by sealing. · · Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1K06-K16. · · Mounting on DIN rail, separated from the contactor, with use of a terminal block LA7K0064 (to be ordered separately). · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). · · Weight: 145g · · Depth: 65mm · · Reset Type: Automatic/Manual
Out of Stock
Description
Technical Specifications Technical Specifications Thermal overload relay Max. rated operation voltage Ue 690 V Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally closed contact 1 Reset function push-button Yes Adjustable current range 0.54 – 0.8 A Reset function input No Reset function automatic Yes · Technical Data Sheet – Click to Download
