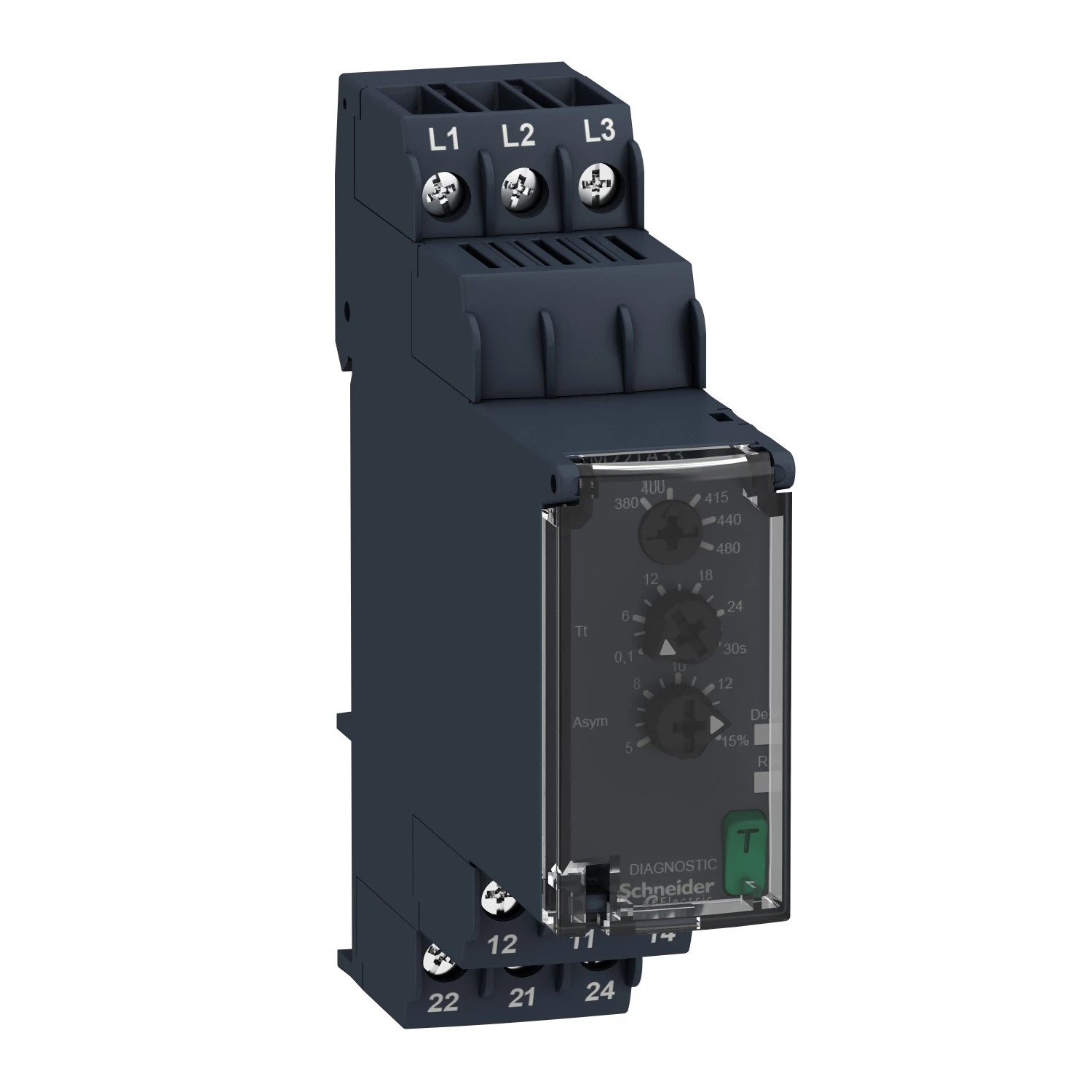

Schneider Electric Three-Phase Asymmetry control relay 380…480Vac, 2 C/O
Schneider Electric Three-Phase Asymmetry control relay 380…480Vac, 2 C/O
Schneider Electric Three-Phase Asymmetry control relay 380…480Vac, 2 C/O - Image 2
Schneider Electric Three-Phase Asymmetry control relay 380…480Vac, 2 C/O - Image 3
Schneider Electric Three-Phase Asymmetry control relay 380…480Vac, 2 C/O - Image 4

Schneider Electric Three-Phase Asymmetry control relay 380…480Vac, 2 C/O

£99.62 Incl. VAT

Three-Phase Asymmetry control relay 380…480Vac, 2 C/O. range of product: Zelio Control – product or component type: modular measurement and control relays – relay type: control relay – network number of phases: 3 phases – relay name: RM22TA – relay monitored parameters: asymmetry, phase failure detection, phase sequence – switching capacity in VA: 2000 VA. · · · This Zelio RM22TA asymmetry control relay allows monitoring of power supply circuits in 3-phase networks. · · This modular 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. · · It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. · · It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. · · It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RM22TA33 Categories: , , , , , Brand: Product Code: 2500892997

Description

Technical Specifications  Technical Specifications Phase monitoring relay Width 22.50 mm Depth 73.00 mm Height 90.00 mm Number of contacts as normally closed contact 0.00 Number of contacts as change-over contact 2.00 Max. permitted off-delay time 30.00 s Min. adjustable delay-on energization time – s Number of contacts as normally open contact 0.00 Max. permitted delay-on energization time – s Min. adjustable off-delay time 0.10 s Voltage measurement range 304.00 – 576.00 V With detachable clamps No Phase imbalance monitoring Yes Phase failure detection Yes Function under voltage detection No Function over voltage detection No Phase sequence monitoring Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205366
