Schneider Electric Trunking Lighting 4Pole 0.5m Tap-Off 40A 3m White Spacings

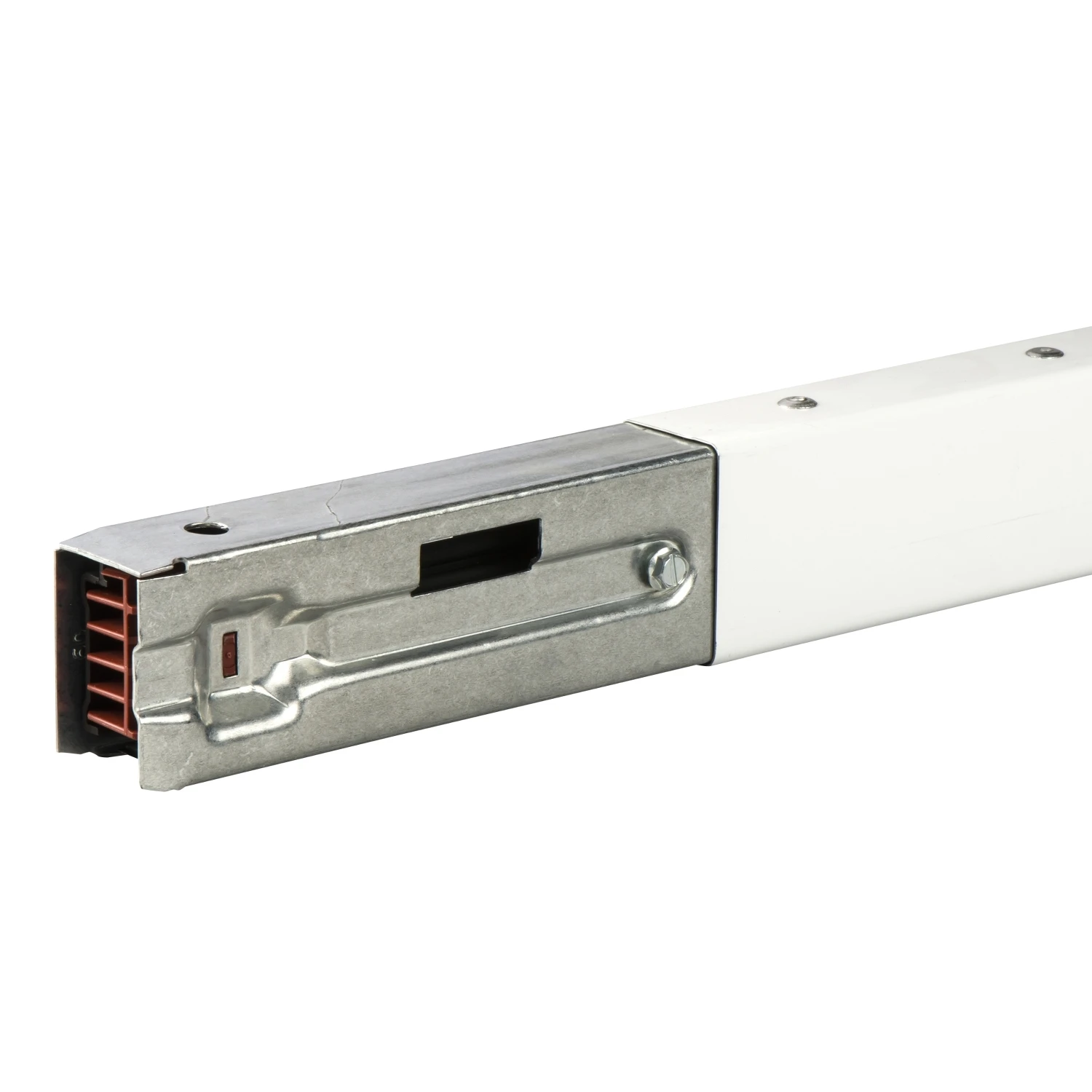

This is a straight length for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This straight length is made of 5 tap-off outlets maximum spaced every meter on the main circuit (front). It embeds 1 electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 3m, and the section is 30mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBA is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2). · · · Canalis busbar trunking for KBA. · · It’s applied to lighting and power socket distribution. · · The operational voltage is from 230VAC 50/60Hz to 400VAC 50/60Hz. · · The rated operational current is 40A at 35 ℃. · · It has white RAL 9003 surface treatment. · · Depth: 30mm · · Straight length busbar which mounting by clips and whose busbar trunking polarity is 3L + N + PE. · · Designed with 5 tap-off outlets. · · It provides 2 pT radiated magnetic field. · · Sold in lots of 6 units.
