Schneider Electric Trunking Lighting Double Pole 1m Tap-Off 25A 3m White Ral 9003 Spacings

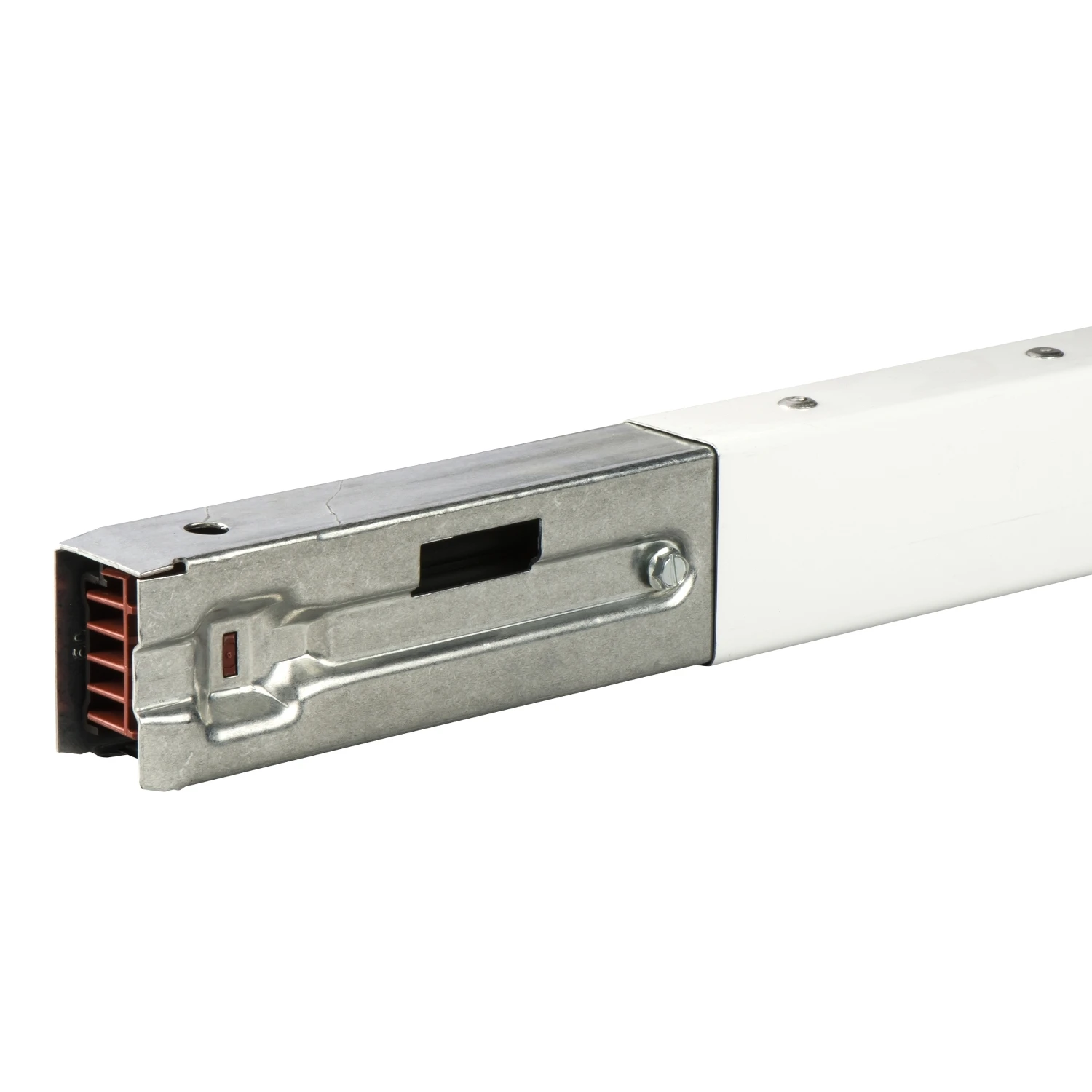

This is a straight length for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. The rated operational current is 25A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This straight length is made of 3 tap-off outlets maximum spaced every meter on the main circuit (front). It embeds 1 electrical circuits with L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 3m, and the section is 30mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBA is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2). · · · Part of the Canalis KBA system. · · It consists of a 3m 25A Distribution element equipped with 3 outlets. · · All run components are delivered with a jointing unit. · · Width: 3,140mm · · Weight: 2.4kg · · Depth: 30mm · · Voltage: 230 – 400 V
