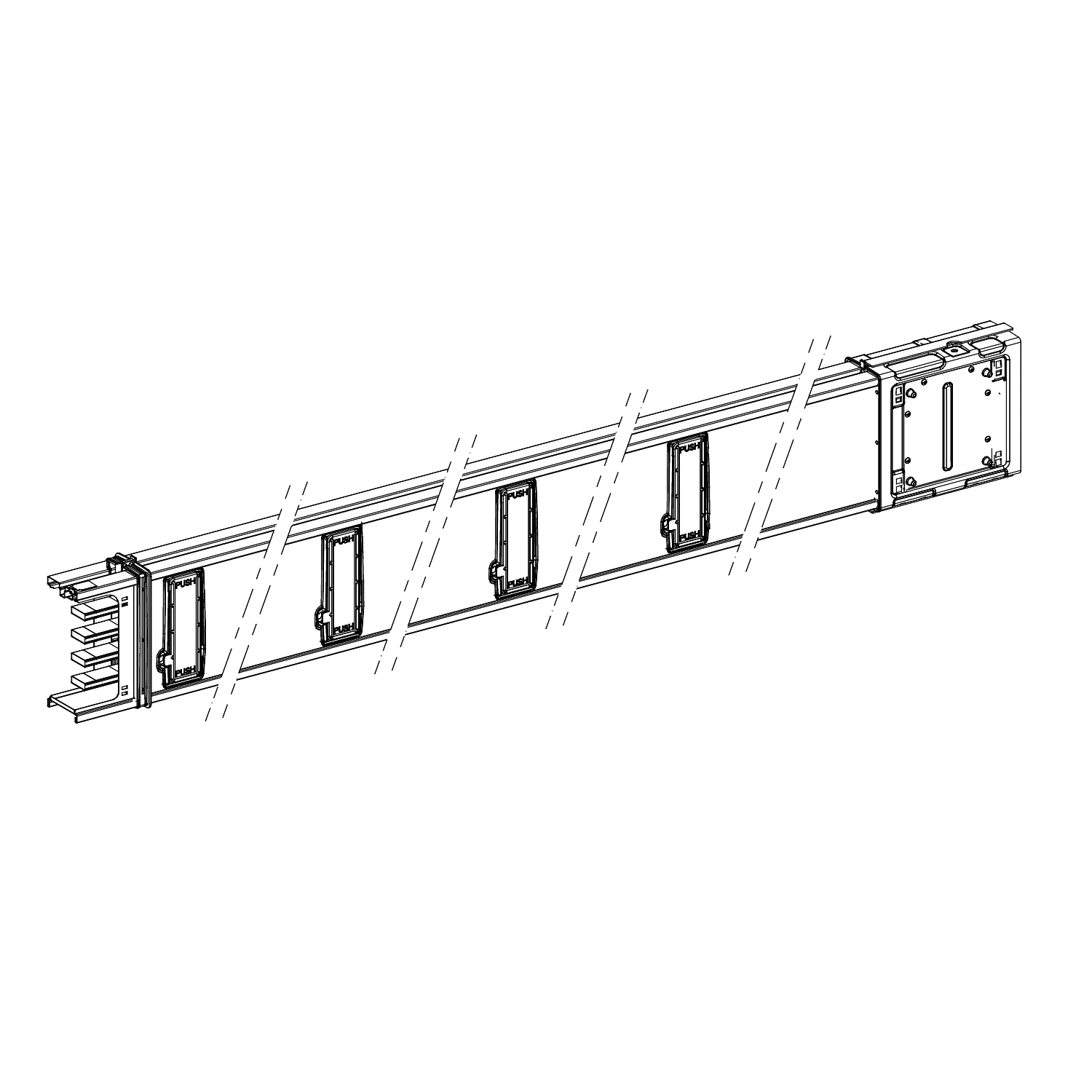

Schneider Electric Trunking Medium Power Distribution 250A 2m Triple Pole+Neutral+Pe IP40
Schneider Electric Trunking Medium Power Distribution 250A 2m Triple Pole+Neutral+Pe IP40
Schneider Electric Trunking Medium Power Distribution 250A 2m Triple Pole+Neutral+Pe IP40 - Image 2

Schneider Electric Trunking Medium Power Distribution 250A 2m Triple Pole+Neutral+Pe IP40

£527.60 Incl. VAT

It is part of the Canalis system. It consists of a 2m 250A Distribution element equipped with 8 outlets. All run components are delivered with a jointing unit. · · · It is part of the Canalis system. · · It consists of a 2m 250A Distribution element equipped with 8 outlets. · · All run components are delivered with a jointing unit. · · Weight: 10.85kg · · Depth: 54mm · · Voltage: 230 – 690 V

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: KSA250ED4208 Categories: , , Brand: Product Code: 2500024843

Description

Technical Specifications  Technical Specifications Busbar trunk unit Height 146 mm Width 54 mm Rated current at AC 50 Hz 250 A Number of conductors (without earthing) 4 Number of tap-off units 8 Number of poles 4 RAL number 9001 Rated voltage at AC 50 Hz 690 – 690 V Length 2000 mm Flexible No · Technical Data Sheet – Click to Download
