Schneider Electric Trunking Medium Power Distribution 250A 5m Triple Pole+Neutral+Pe IP40 1.0m Tap-Offs
£859.50 Incl. VAT

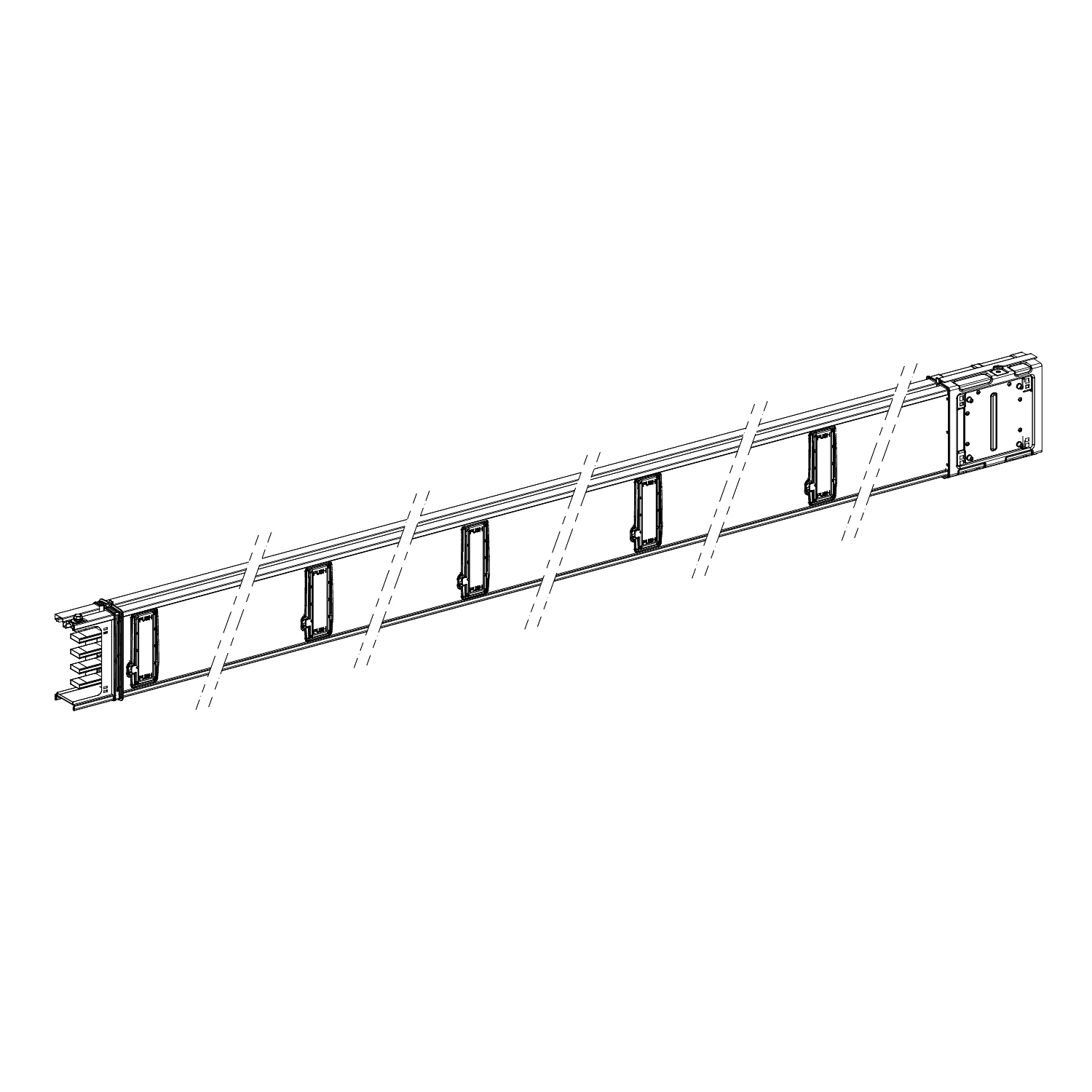

It is part of the Canalis system. It consists of a 5m 250A Distribution element equipped with 10 outlets. All run components are delivered with a jointing unit. · · · It is part of the Canalis system. · · It consists of a 5m 250A Distribution element equipped with 10 outlets. · · All run components are delivered with a jointing unit.
Out of Stock
Description
Technical Specifications Technical Specifications Busbar trunk unit Number of conductors (without earthing) 4 Width 54 mm Number of tap-off units 10 Rated current at AC 50 Hz 250 A Number of poles 4 RAL number 9001 Length 5000 mm Height 146 mm Rated voltage at AC 50 Hz 690 – 690 V Flexible No · Technical Data Sheet – Click to Download
