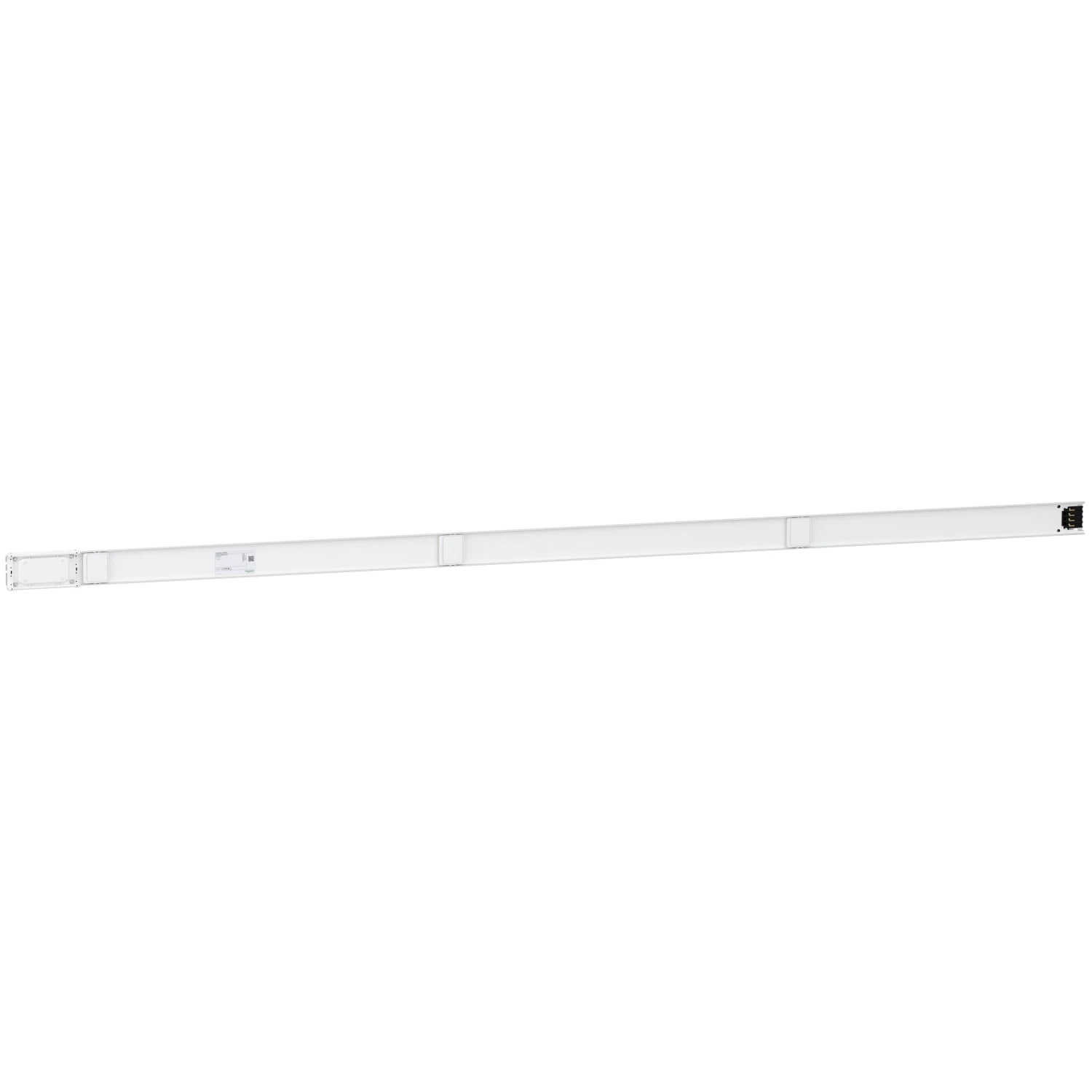

Schneider Electric Trunking Power Distribution Triple Pole+Neutral+Pe 100A 3m 1.0m Tap-Offs

Canalis straight length for KN. It’s applied to low power distribution with lubricated sliding contact. The operational voltage is from 230VAC to 500VAC 50/60Hz. The rated operational current is 100A at 35 °C. It provides white RAL 9001 surface treatment. Mounted by screws with up neutral position. Busbar trunking polarity is 3L + N + PE and 3L + PEN. Designed with 1 circuit allowing and 3 tap-off outlets. It provides 0.106 pT radiated magnetic field. It provides IP55 protection conforming to IEC 60529. IK08 conforms to EN/IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH). · · · Canalis straight length for KN. · · It’s applied to low power distribution with lubricated sliding contact. · · The operational voltage is from 230VAC to 500VAC 50/60Hz. · · The rated operational current is 100A at 35 ℃. · · It provides white RAL 9001 surface treatment. · · Mounted by screws with up neutral position. · · Busbar trunking polarity is 3L + N + PE and 3L + PEN. · · Designed with 1 circuit allowing and 3 tap-off outlets. · · It provides 0.106 pT radiated magnetic field.
