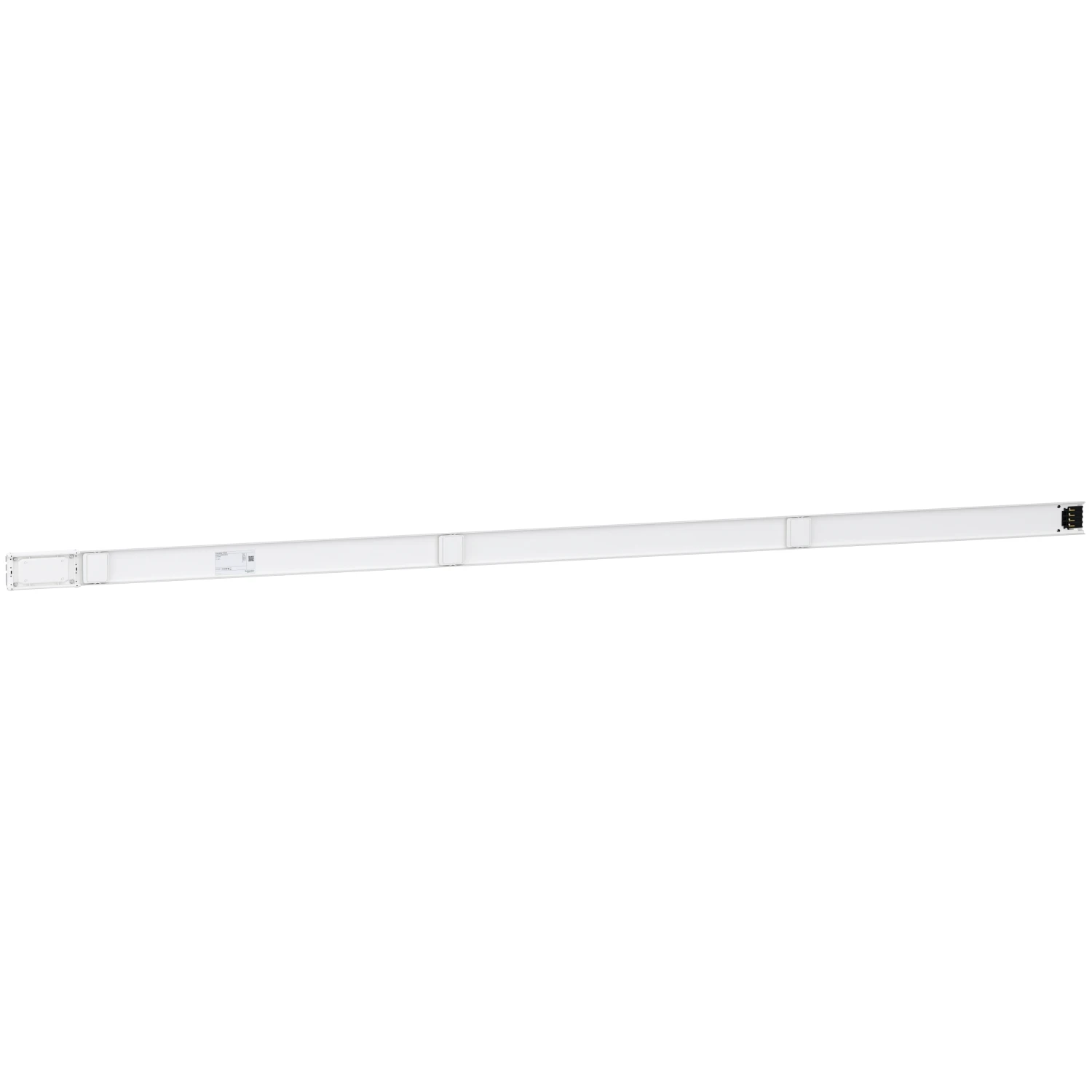

Schneider Electric Trunking Power Distribution Triple Pole+Neutral+Pe 160A 3M
£385.30 Incl. VAT
Canalis straight length for KN. It’s applied to low power distribution with lubricated sliding contact. The operational voltage is from 230VAC to 500VAC 50/60Hz. The rated operational current is 160A at 35 °C. It provides white RAL 9001 surface treatment. Mounted by screws with up neutral position. Busbar trunking polarity is 3L + N + PE and 3L + PEN. Designed with 1 circuit allowing and 3 tap-off outlets. It provides 0.186 pT radiated magnetic field. It provides IP55 protection conforming to IEC 60529. IK08 conforms to EN/IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH). · · · Canalis straight length for KN. · · It’s applied to low power distribution with lubricated sliding contact. · · The operational voltage is from 230VAC to 500VAC 50/60Hz. · · The rated operational current is 160A at 35 ℃. · · It provides white RAL 9001 surface treatment. · · Mounted by screws with up neutral position. · · Busbar trunking polarity is 3L + N + PE and 3L + PEN. · · Designed with 1 circuit allowing and 3 tap-off outlets. · · It provides 0.186 pT radiated magnetic field.
Out of Stock
Description
Technical Specifications Technical Specifications Busbar trunk unit Width 27.5 mm Rated current at AC 50 Hz 160 A Number of poles 4 Number of tap-off units 3 Number of conductors (without earthing) 4 Length 3000 mm Height 92 mm RAL number 9001 Rated voltage at AC 50 Hz 500 – 500 V Flexible No · Technical Data Sheet – Click to Download
