Schneider Electric Undervoltage Release Mn Instantaneous 200-250V AC/DC
£322.19 Incl. VAT

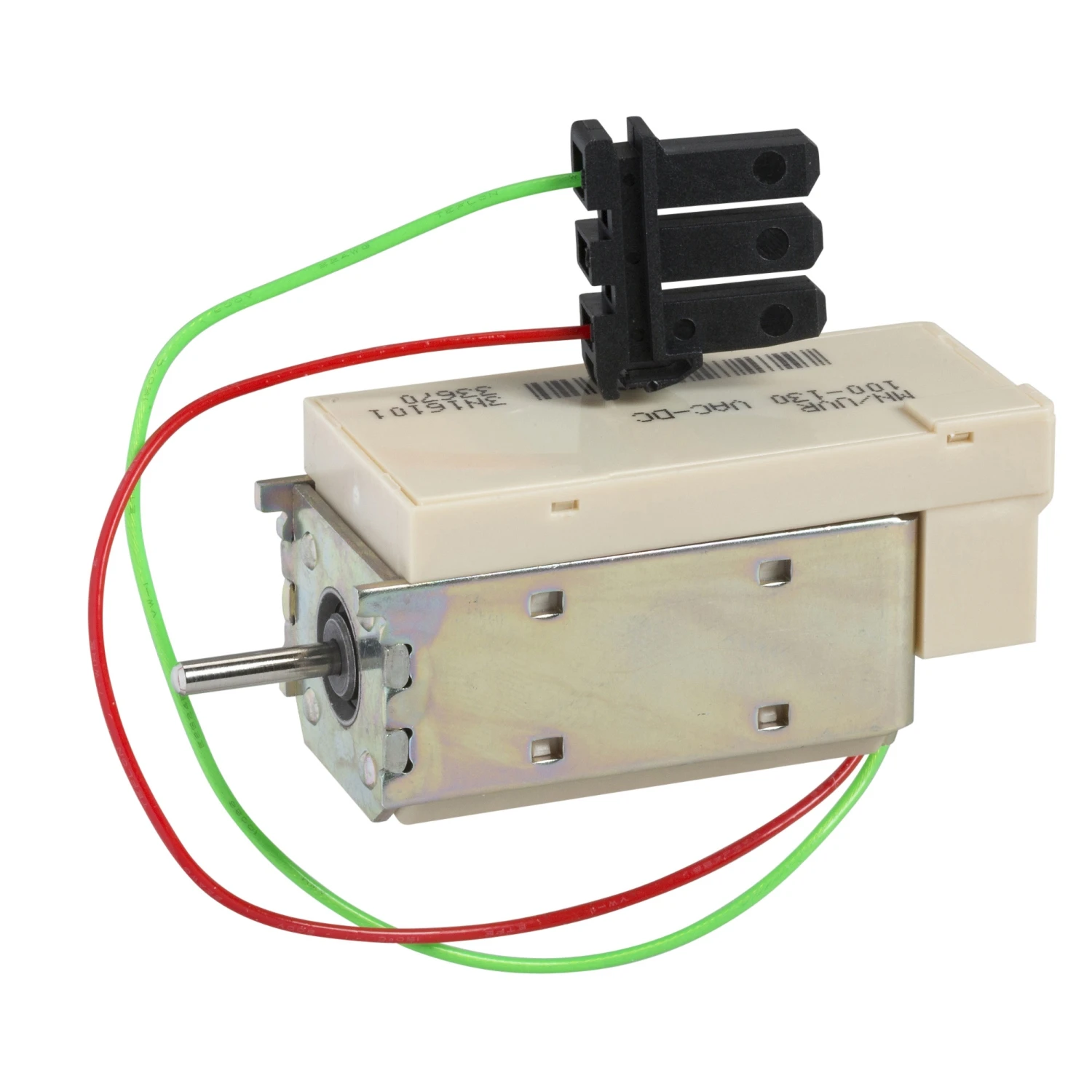

This is a MN undervoltage release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage is 200VDC to 250VDC or 200VAC to 250VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary. · · · This is a MN undervoltage release for Compact NS 630b to Compact NS 3200 devices. · · Its rated voltage is 200VDC to 250VDC or 200VAC to 250VAC 50/60Hz. · · It is an auxiliary used for emergency off or remote opening applications. · · This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. · · It complies with IEC 60947-2 standard. · · Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary.
Out of Stock
Description
Technical Specifications Technical Specifications Under voltage coil Number of contacts as normally open contact 0 Number of contacts as change-over contact 0 Number of contacts as normally closed contact 0 Rated control supply voltage at AC 60 Hz 200 – 250 V Rated control supply voltage at AC 50 Hz 200 – 250 V Rated control supply voltage at DC 200 – 250 V Delayed No Suitable for off-load switch Yes Suitable for overload relay No Suitable for power circuit breaker Yes Suitable for motor safety switch Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2186649 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2214351
