Schneider Electric Variable speed drive, Altivar Machine ATV320, 2.2 kW, 380...500 V, 3 phases, enclosed
Schneider Electric Variable speed drive, Altivar Machine ATV320, 2.2 kW, 380...500 V, 3 phases, enclosed

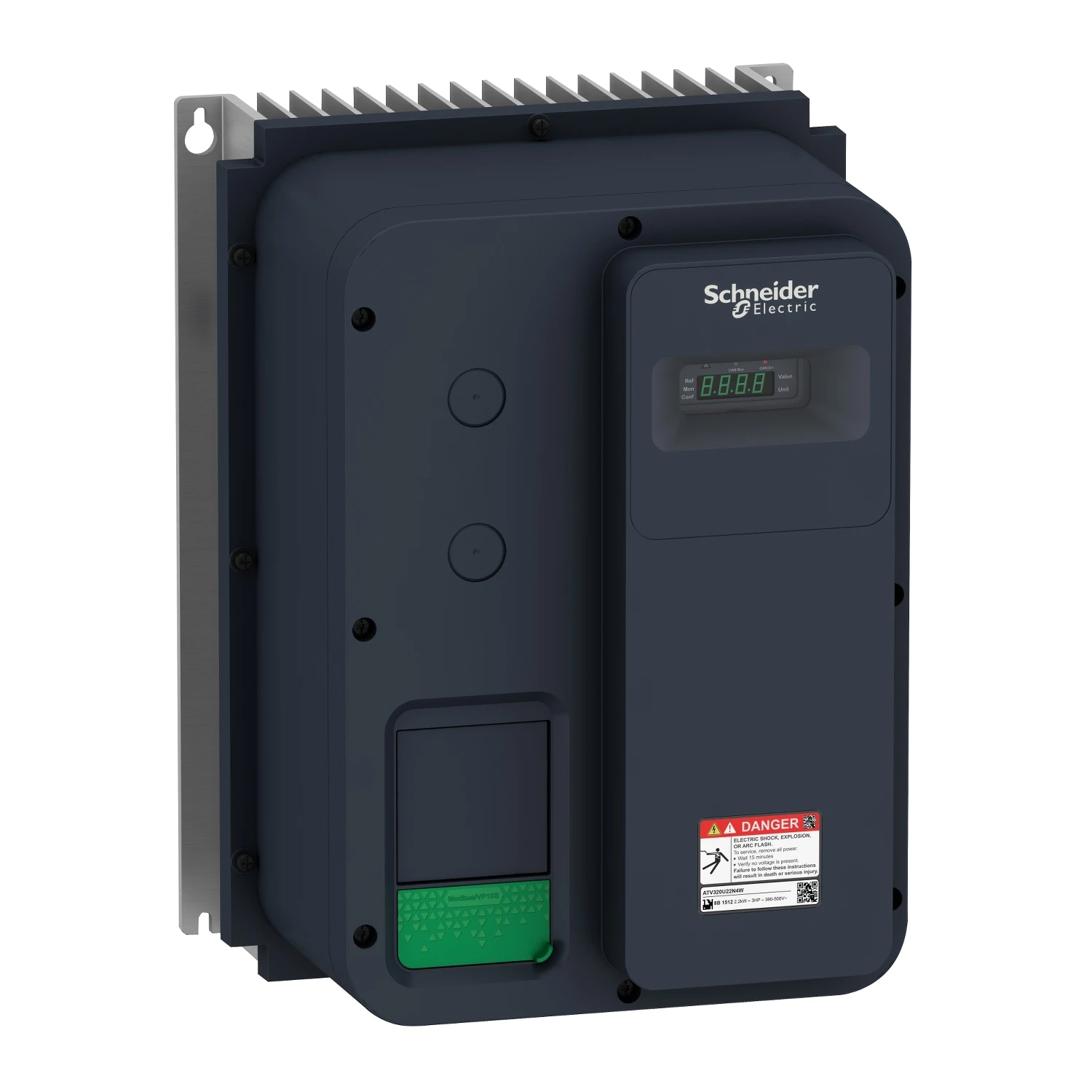

Schneider Electric Variable speed drive, Altivar Machine ATV320, 2.2 kW, 380...500 V, 3 phases, enclosed - Image 2

Schneider Electric Variable speed drive, Altivar Machine ATV320, 2.2 kW, 380…500 V, 3 phases, enclosed

£977.45 Incl. VAT

ATV320 IP66 2,2kW 400V no vario · · · Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). · · This ATV320 drive can feed 3-phase synchronous and asynchronous motors. · · It works at a rated power up to 2.2kW, and a rated voltage from 380V to 500V. · · Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. · · It is delivered without fan, with embedded EMC C2 filter and it provides IP66 protection. · · It integrates as standard Modbus and CANopen communication protocols with access via the RJ45 connector on the front of the drive. · · It weighs 7.7kg. · · The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. · · This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. · · It conforms to IEC, UL, TUV, KC and other international standards.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ATV320U22N4W Categories: , Brand: Product Code: 2501297533

Description

Technical Specifications  Technical Specifications Frequency converter =< 1 kV Width 250 mm Height 340 mm Depth 235 mm Number of digital outputs 3 Number of digital inputs 7 Number of analogue inputs 3 Number of analogue outputs 1 Number of HW-interfaces industrial Ethernet 0 Number of HW-interfaces RS-422 0 Number of HW-interfaces RS-232 0 Number of HW-interfaces serial TTY 0 Number of HW-interfaces RS-485 1 Number of HW-interfaces USB 0 Number of HW-interfaces parallel 0 Number of HW-interfaces other 1 Nominal output current I2N 5.5 A Number of HW-interfaces PROFINET 0 Max. output frequency 599 Hz Max. output at linear load at rated output voltage 2.2 kW Max. output at quadratic load at rated output voltage 2.2 kW Relative symmetric net voltage tolerance 10 % Relative symmetric net frequency tolerance 5 % Max. output voltage 500 V Mains voltage 380 – 500 V Supporting protocol for PROFIsafe No Supporting protocol for PROFINET CBA No Supporting protocol for PROFINET IO Yes Supporting protocol for Foundation Fieldbus No With PC connection Yes 4-quadrant operation possible Yes Integrated breaking resistance Yes Application in industrial area permitted Yes Application in domestic- and commercial area permitted No Supporting protocol for EtherNet/IP Yes Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for INTERBUS-Safety No Supporting protocol for SERCOS No Supporting protocol for other bus systems Yes Supporting protocol for SUCONET No Supporting protocol for DeviceNet Yes Supporting protocol for Data-Highway No Supporting protocol for SafetyBUS p No Supporting protocol for BACnet No Supporting protocol for MODBUS Yes Supporting protocol for KNX No Supporting protocol for ASI No With optical interface No Supporting protocol for INTERBUS No Supporting protocol for CAN Yes Supporting protocol for PROFIBUS Yes Supporting protocol for TCP/IP Yes Supporting protocol for LON No With control unit Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2208274 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2208324
