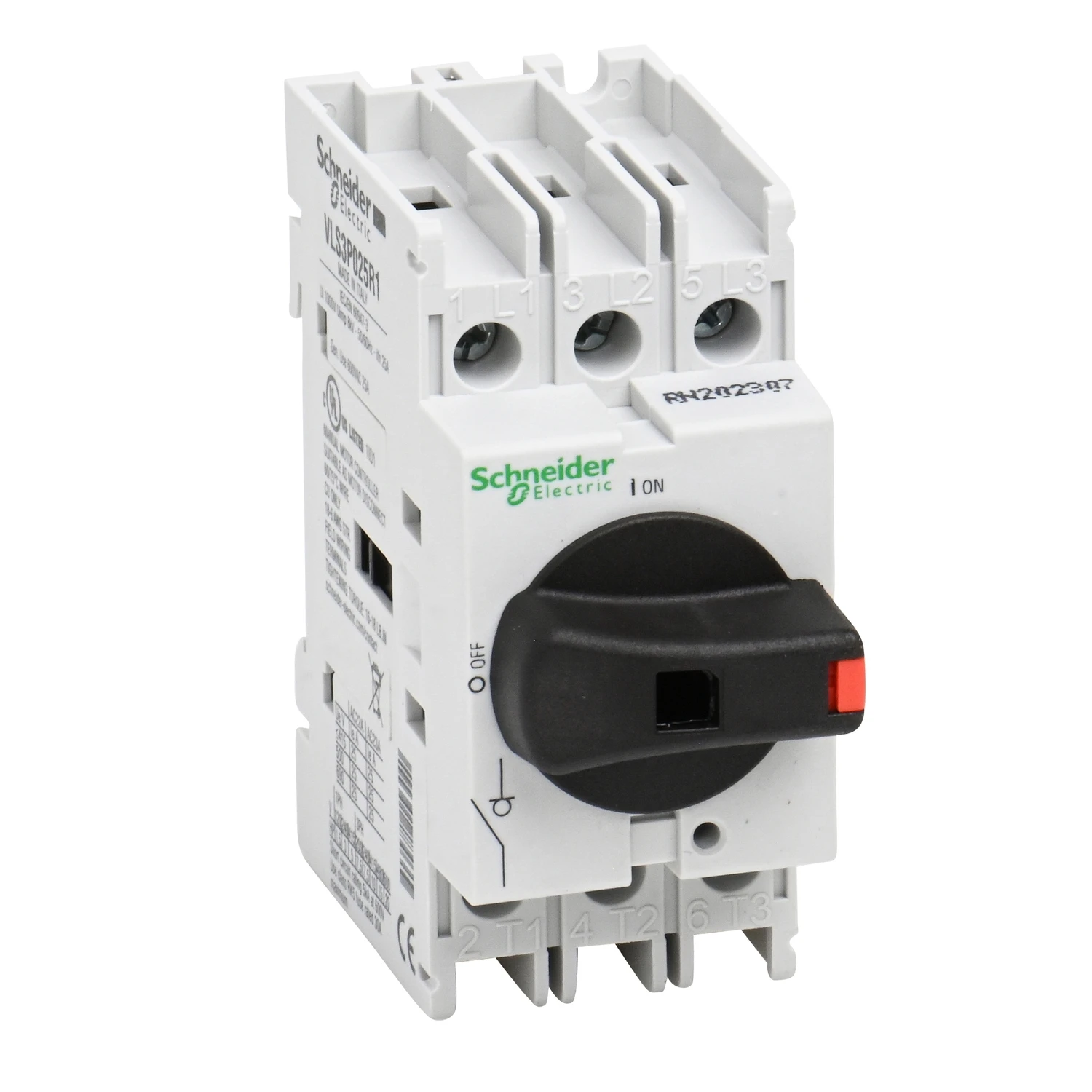

Schneider Electric VLS 3 POLES 25A WITH ROT BLA
Schneider Electric VLS 3 POLES 25A WITH ROT BLA
Schneider Electric VLS 3 POLES 25A WITH ROT BLA - Image 2

Schneider Electric VLS 3 POLES 25A WITH ROT BLA

£29.22 Incl. VAT

VLS 3 POLES 25A WITH ROT BLA · · · These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. · · This family of disconnect switches has switches ranging from 16A to 125A. · · The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. · · The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. · · This 25A disconnect switch has 3 normally open poles and mounts on DIN rail.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VLS3P025R1 Category: Brand: Product Code: 2501231876

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated permanent current at AC-21, 400 V 25 A Switching power at 400 V 11 kW Rated short-time withstand current lcw 800 kA Rated permanent current at AC-23, 400 V 25 A Rated operation power at AC-23, 400 V 11 kW Number of switches 1 Conditioned rated short-circuit current Iq 50 kA Max. rated operation voltage Ue AC 690 V Rated permanent current Iu 25 A Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally closed contact 0 Number of poles 3 Rated operation power at AC-3, 400 V – kW Number of auxiliary contacts as normally open contact 0 Rated operating voltage 0 – 690 V Interlockable Yes Version as emergency stop installation No Version as main switch Yes Version as safety switch No Motor drive integrated No Version as maintenance-/service switch No Suitable for front mounting 4-hole No Suitable for distribution board installation Yes Suitable for intermediate mounting No Suitable for front mounting centre No Motor drive optional No Voltage release optional No Version as reversing switch No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/420818
