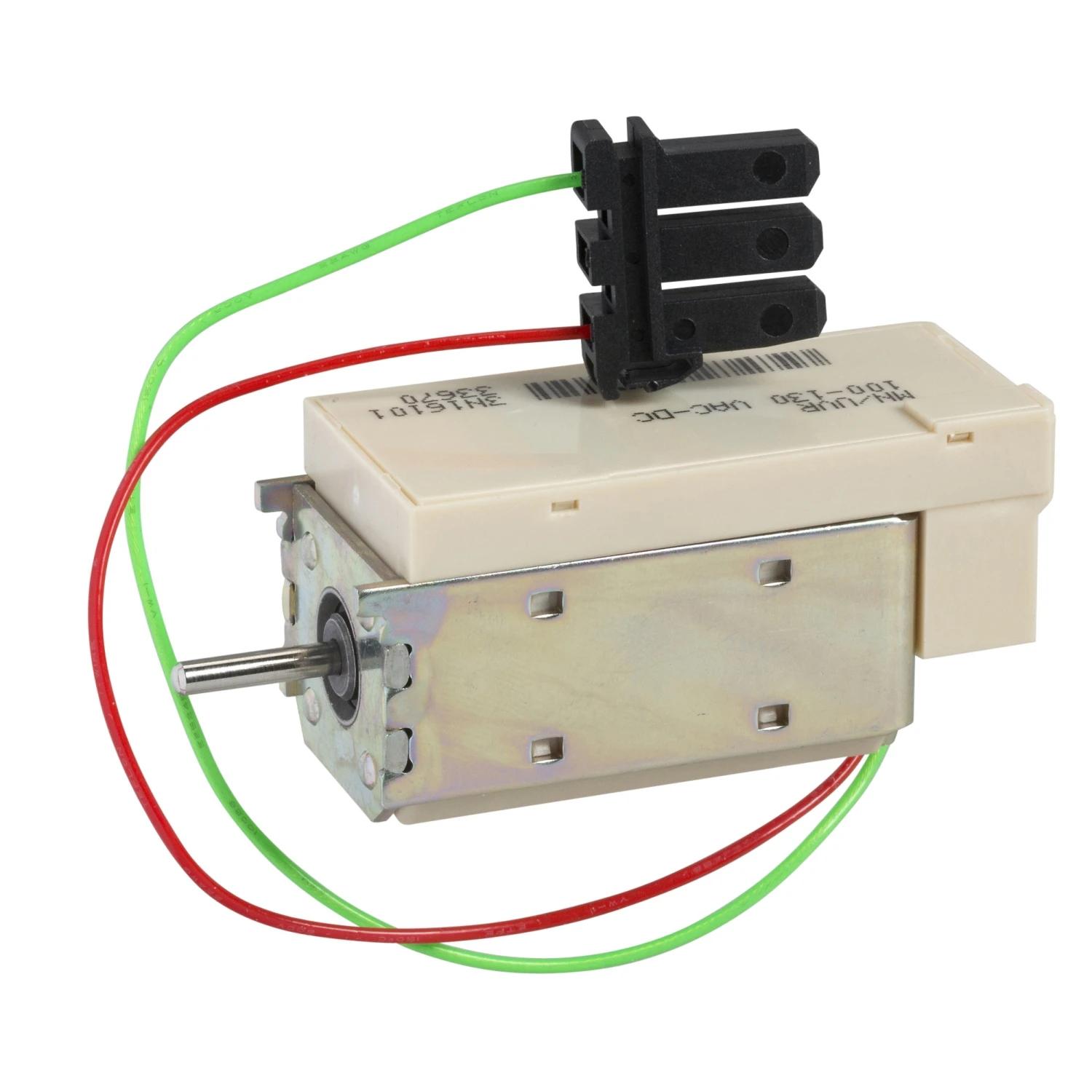

Schneider Electric Voltage release MX or XF, 100..130 V DC/AC 50/60 Hz
£194.30 Incl. VAT
This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage is 100VDC to 130VDC or 100VAC to 130VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary. · · · This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices. · · Its rated voltage is 100VDC to 130VDC or 100VAC to 130VAC 50/60Hz. · · It is an auxiliary used for emergency off or remote opening applications. · · This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. · · It complies with IEC 60947-2 standard.
Out of Stock
Description
Technical Specifications Technical Specifications Shunt release (for power circuit breaker) Initial value of the undelayed short-circuit release – setting range – A End value adjustment range undelayed short-circuit release – A Number of contacts as change-over contact 0.00 Number of contacts as normally closed contact 0.00 Number of contacts as normally open contact 0.00 Rated control supply voltage at AC 50 Hz 100.00 – 130.00 V Rated control supply voltage at DC 100.00 – 130.00 V Rated control supply voltage at AC 60 Hz 100.00 – 130.00 V Suitable for motor safety switch Yes Suitable for overload relay No Suitable for power circuit breaker Yes Suitable for off-load switch Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2186649
