Schneider Electric Voltage release MX or XF, 24..30 V DC/AC 50/60 Hz
Schneider Electric Voltage release MX or XF, 24..30 V DC/AC 50/60 Hz
Schneider Electric Voltage release MX or XF, 24..30 V DC/AC 50/60 Hz - Image 2

Schneider Electric Voltage release MX or XF, 24..30 V DC/AC 50/60 Hz

£264.88 Incl. VAT

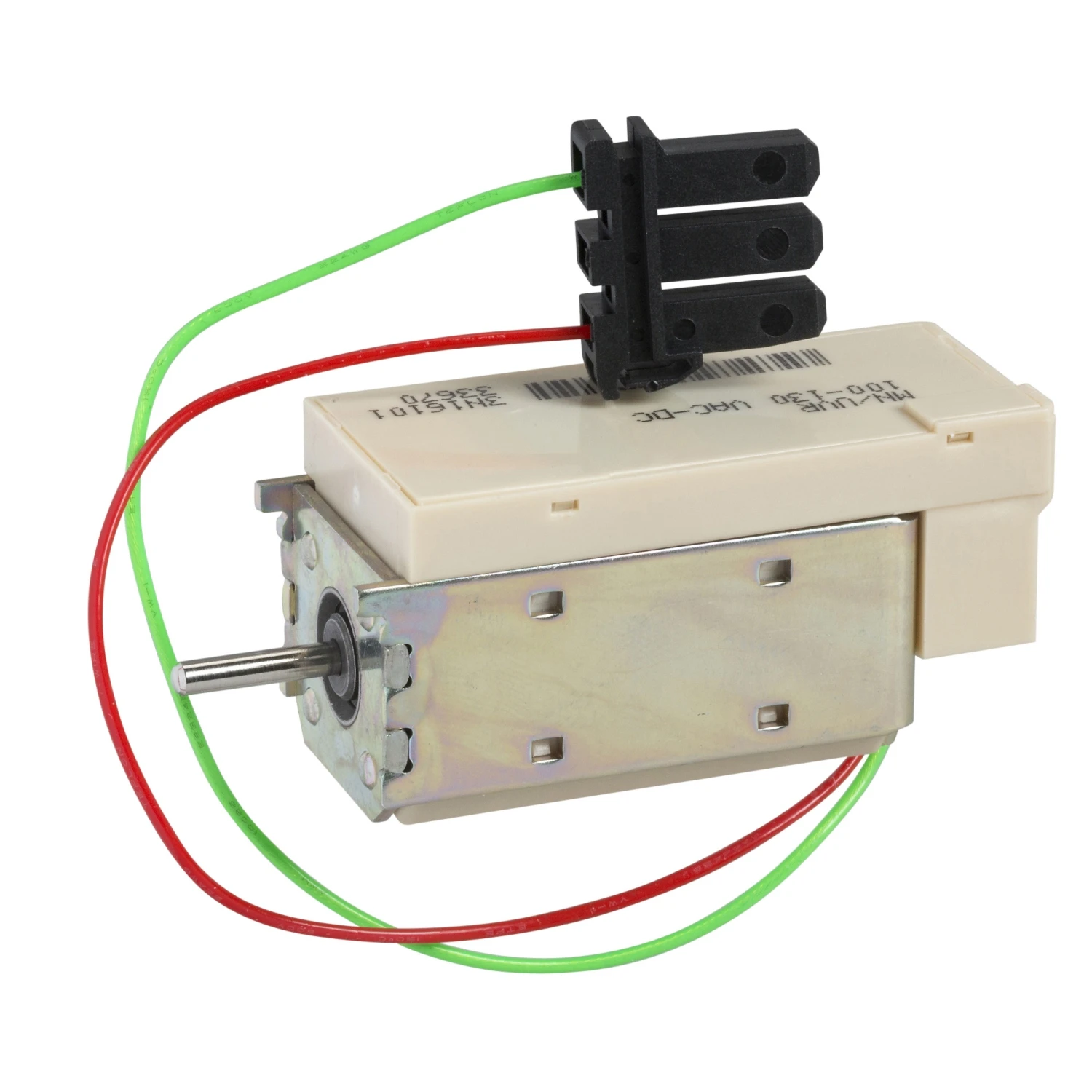

This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage is 24VDC to 30VDC or 24VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary. · · · This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices. · · Its rated voltage is 24VDC to 30VDC or 24VAC 50/60Hz. · · It is an auxiliary used for emergency off or remote opening applications. · · This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. · · It complies with IEC 60947-2 standard. · · Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 33659 Categories: , Brand: Product Code: 2500107419

Description

Technical Specifications  Technical Specifications Shunt release (for power circuit breaker) End value adjustment range undelayed short-circuit release – A Initial value of the undelayed short-circuit release – setting range – A Number of contacts as change-over contact 0 Number of contacts as normally closed contact 0 Number of contacts as normally open contact 0 Rated control supply voltage at AC 50 Hz 24 – 30 V Rated control supply voltage at DC 24 – 30 V Rated control supply voltage at AC 60 Hz 24 – 30 V Suitable for off-load switch Yes Suitable for motor safety switch No Suitable for power circuit breaker Yes Suitable for overload relay No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2186649 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2214351
