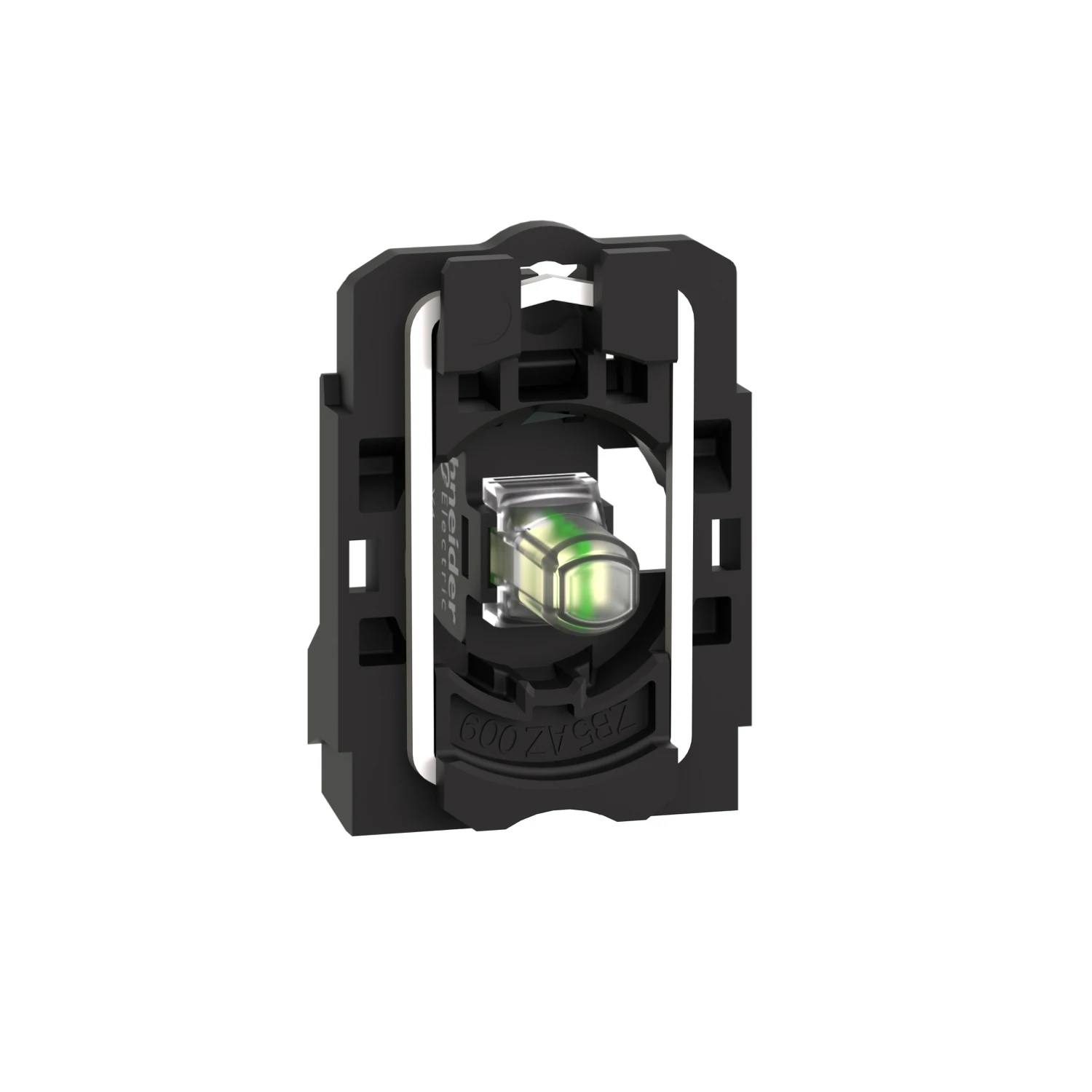

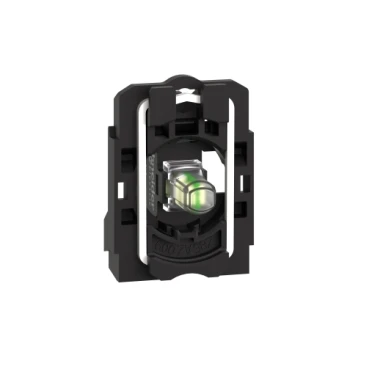

Schneider Electric White Light Block with Body/Fixing Collar Integral LED 110-120V
£17.27 Incl. VAT
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. · · · This light block allows fast and easy replacement and configuration of your signaling units. · · It is easily installed and replaced on compatible illuminated push button or selector switch units . · · It is assembled via clips and connected with simple screw-clamp connections. · · It enables visual distinction of signaling units via illumination by integral LED. · · It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Out of Stock
Description
Technical Specifications Technical Specifications Lamp holder block for control circuit devices Lamp cap/base E10 Rated voltage Ue at DC 0.00 – 0.00 V Rated voltage Ue at AC 50 Hz 110.00 – 120.00 V Transformer integrated No Rated voltage Ue at AC 60 Hz 110.00 – 120.00 V With integrated voltage decreasing resistor No With integrated diode Yes Light source included Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226406 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226169
