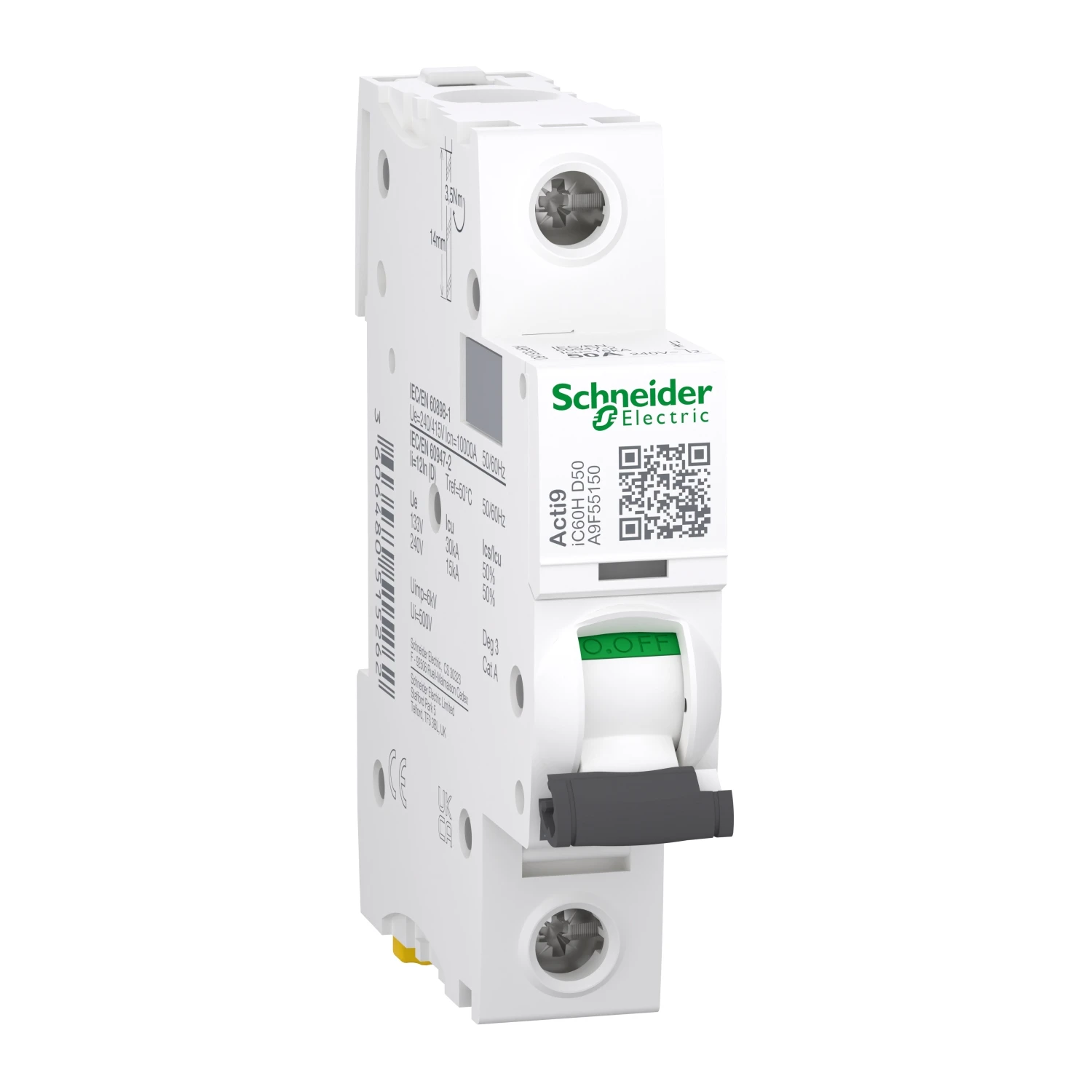

Schneider Electric Acti9 iC60H 1-Pole 50A Curve-D Miniature Circuit Breaker 10/15kA
£29.88 Incl. VAT
This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 1P circuit breaker with 1 protected pole, 50A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 15kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 240VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.125kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C. · · · Set a new benchmark in final distribution circuit breakers · · Enhanced security when it comes to circuit protection thanks to VisiSafe · · Provide greater continuity of service thanks to VisiTrip · · Come with easily identifiable part numbers, making Acti9 iC60 miniature circuit breakers simple to order and use · · Easy installation with quick and ergonomic IP20B terminal shutters · · Highly durable with robust connections that provide twice the standard tightening torque · · Environmentally friendly with 100% recyclable and recoverable materials · · Toggle control type · · Clip-on mounting mode · · Rail mounting support
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) D Rated current 50.00 A Recess depth 44.50 mm Rated insulation voltage Ui 500.00 V Rated voltage 240.00 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10.00 kA Over voltage category 4.00 Pollution degree 3.00 Number of protected poles 1.00 Current limiting class 3.00 Number of poles (total) 1.00 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15.00 kA Width in number of modular spacings 1.00 Rated impulse-withstand voltage (Uimp) 6.00 kV Frequency 50.00 – 60.00 Hz Connectable conductor cross section solid-core 1.00 – 35.00 mm² Connectable conductor cross section multi-wired 1.00 – 25.00 mm² Ambient temperature during operating 35.00 – 70.00 °C Additional equipment possible Yes Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
