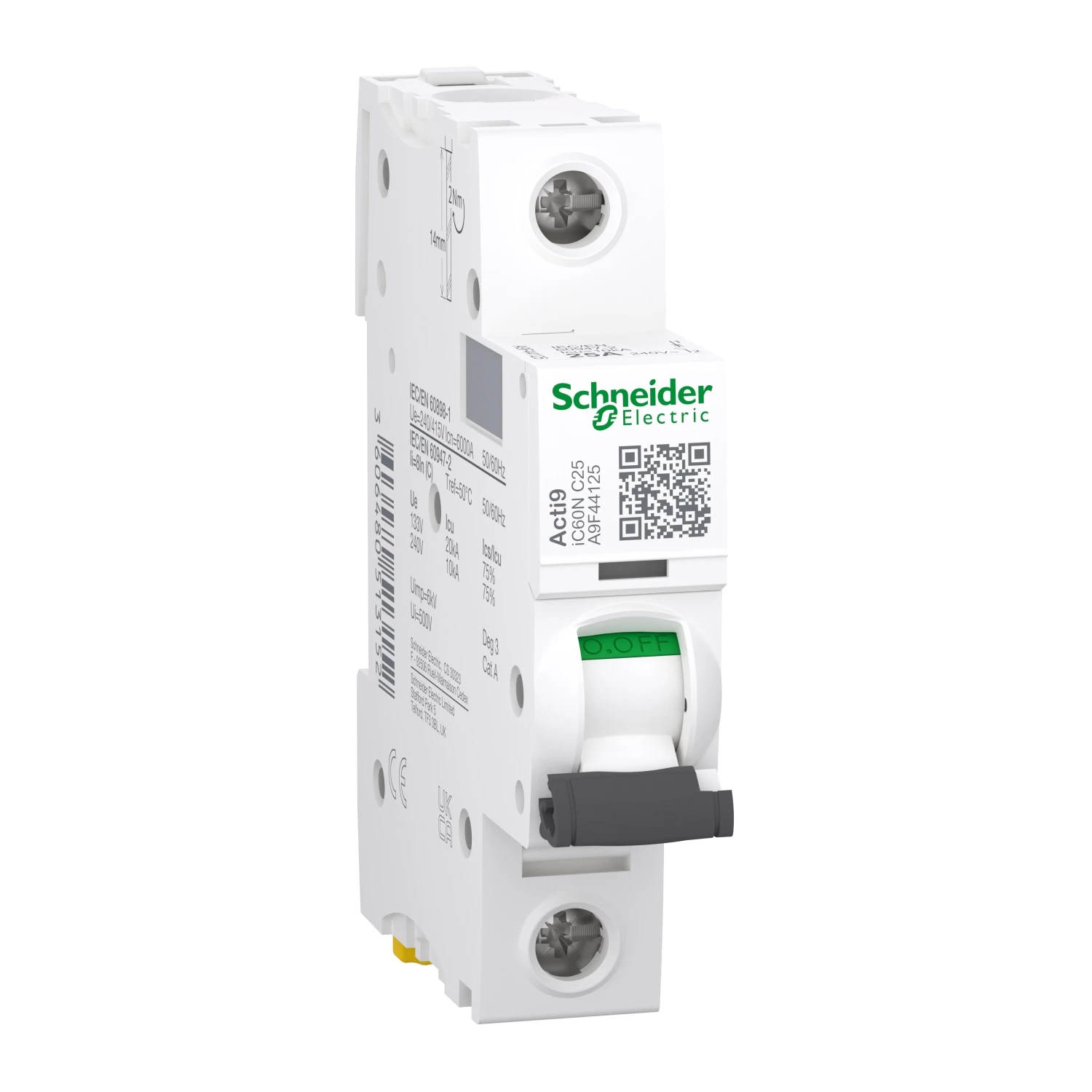

Schneider MCB Acti9 iC60N 1p 25A C
£42.41 Incl. VAT
ACTI9 IC60N 1P 25A C MCB · · · This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). · · It is a 1P circuit breaker with 1 protected pole, 25A rated current and C tripping curve. · · The rated short circuit breaking capacity goes up to 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 240VAC conforming to EN/IEC 60898-1 standard. · · It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. · · This miniature circuit breaker protects circuits against short circuit and overload current.
Out of stock
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated current 25 A Recess depth 44.5 mm Rated insulation voltage Ui 500 V Rated voltage 240 V Width in number of modular spacings 1 Rated impulse-withstand voltage (Uimp) 6 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Pollution degree 3 Number of protected poles 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Connectable conductor cross section multi-wired 1 – 16 mm² Connectable conductor cross section solid-core 1 – 25 mm² Frequency 50 – 60 Hz Over voltage category 4 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Number of poles (total) 1 Ambient temperature during operating -35 – 70 °C Suitable for flush-mounted installation No Concurrently switching N-neutral No Additional equipment possible Yes
