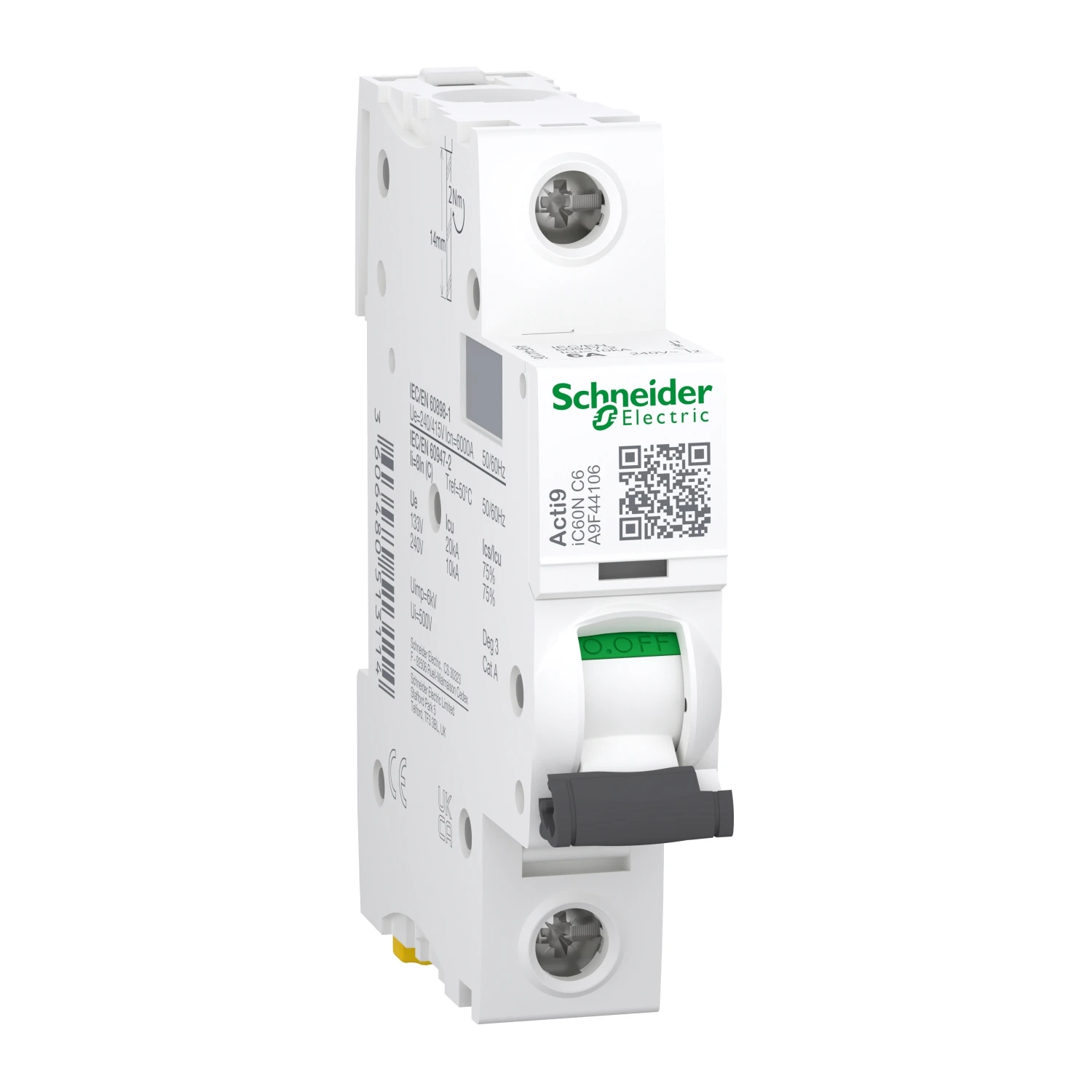

Schneider MCB Acti9 iC60N 1p 6A C
£36.08 Incl. VAT
The Acti 9 minature circuit breaker range is a great addition to your installation. If a small amperage breaker is required and you only have minimal space this is the way to go! · · · 1 Pole (Protected) · · 6 amp · · Thermal magnetic trip unit · · EN/IEC 60947-2 , EN/IEC 60898-1 (Standards) · · Clip on mounting mode, Rail support · · Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. · · Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. · · Its fast closing mechanism independent of manual operation improves its service life. · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ui rated insulation voltage is 500VAC.
12 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated current 6 A Recess depth 44.5 mm Tripping characteristic (type/curve) C Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Number of poles (total) 1 Number of protected poles 1 Rated insulation voltage Ui 500 V Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10 kA Width in number of modular spacings 1 Rated impulse-withstand voltage (Uimp) 6 kV Rated voltage 240 V Current limiting class 3 Over voltage category 4 Pollution degree 3 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating 35 – 70 °C Concurrently switching N-neutral No Suitable for flush-mounted installation No Additional equipment possible Yes
