Schneider Electric Multi9 C60N 1P 1A C 10kA MCB
Schneider Electric Multi9 C60N 1P 1A C 10kA MCB

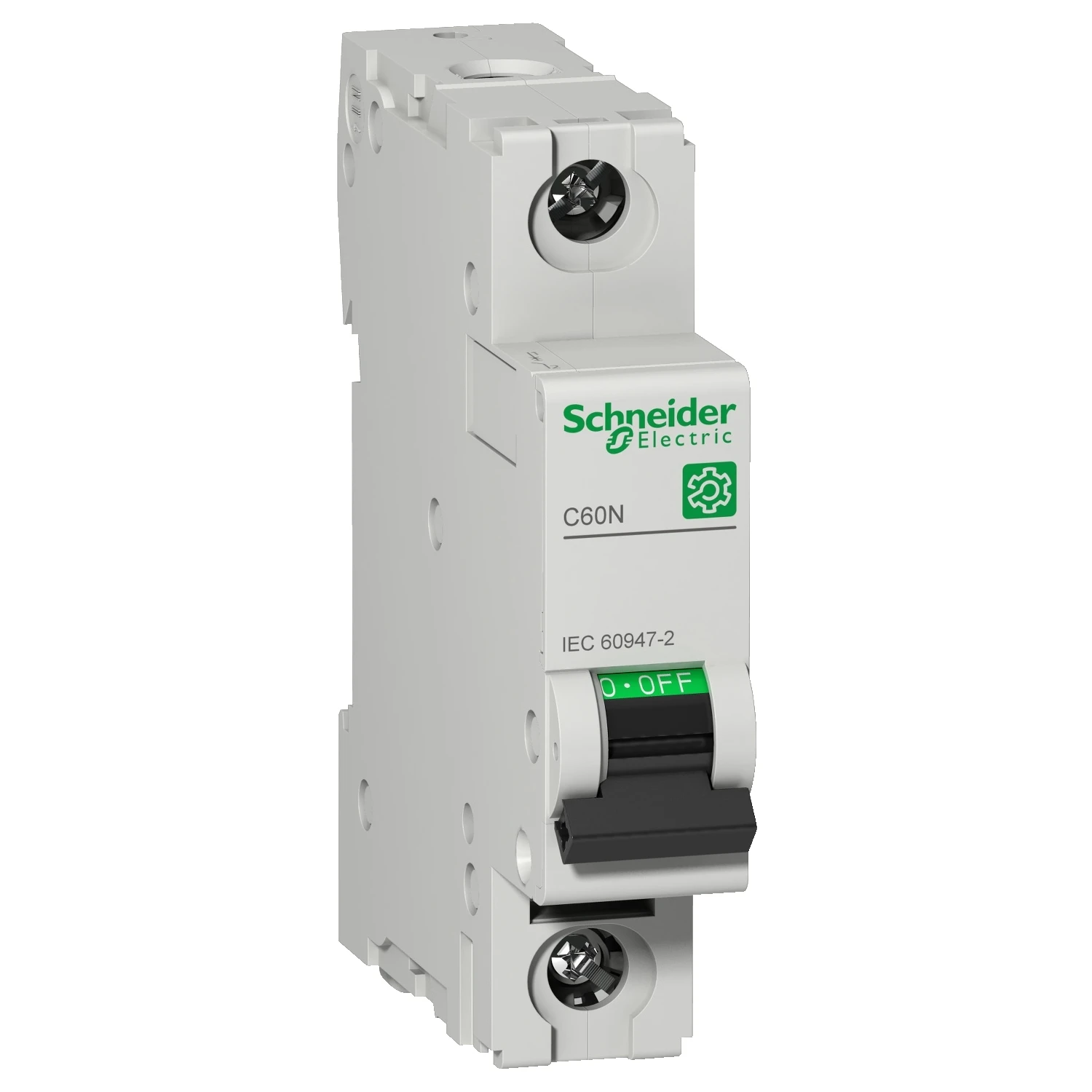

Schneider Electric Multi9 C60N 1P 1A C 10kA MCB - Image 2
Schneider Electric Multi9 C60N 1P 1A C 10kA MCB - Image 3

Schneider Electric Multi9 C60N 1P 1A C 10kA MCB

£25.33 Incl. VAT

This Multi 9 C60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit-breaker with 1 protected pole, 1A rated current and C tripping curve. It can be mounted on DIN rail for modular installation. As circuit-breaker, its breaking capacity, · · · C60N circuit breakers are circuit breakers which combine the following functions: · · circuit protection against short-circuit currents · · circuit protection against overload currents · · breaking and industrial disconnection as per standards IEC/EN 60947-2 · · A green strip on the toggle indicates full opening of all the poles allowing downstream maintenance operation

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: M9F11101 Categories: , , Brand: Product Code: 2501192284

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated current 1.00 A Rated voltage 240.00 V Recess depth 44.00 mm Rated impulse-withstand voltage (Uimp) 6.00 kV Width in number of modular spacings 1.00 Over voltage category 4.00 Pollution degree 3.00 Number of poles (total) 1.00 Rated insulation voltage Ui 500.00 V Current limiting class 3.00 Number of protected poles 1.00 Frequency 50.00 – 60.00 Hz Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10.00 kA Connectable conductor cross section solid-core 1.00 – 25.00 mm² Connectable conductor cross section multi-wired 1.00 – 25.00 mm² Ambient temperature during operating 30.00 – 70.00 °C Additional equipment possible Yes Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
