Schneider MCB SP Type C 16A 10kA
Schneider MCB SP Type C 16A 10kA

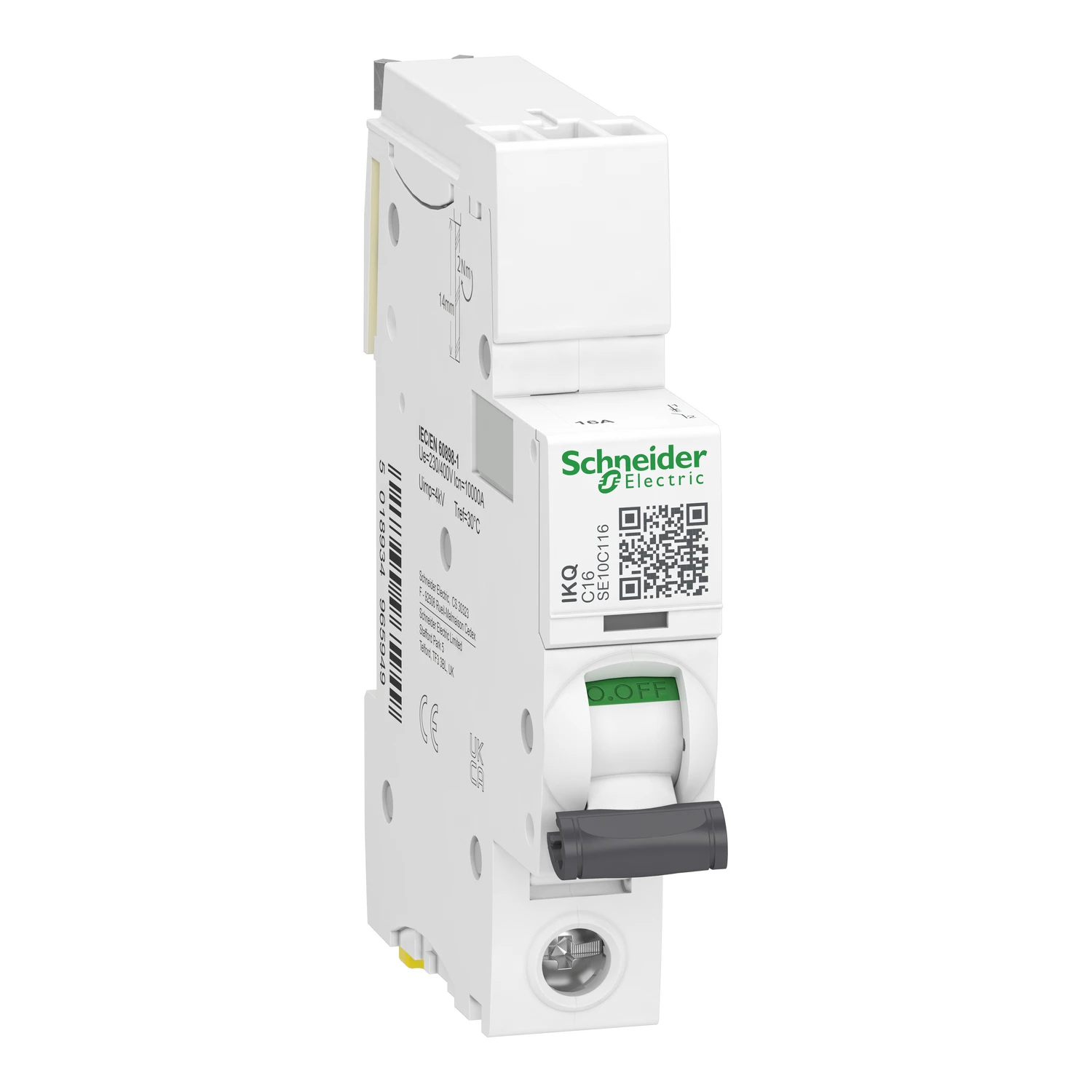

Schneider MCB SP Type C 16A 10kA - Image 2
Schneider MCB SP Type C 16A 10kA - Image 3

Schneider MCB SP Type C 16A 10kA

£15.24 Incl. VAT

Acti9 iKQ 1P 16A C Miniature Circuit breaker · · · Let through energy classification of 3 (lowest let through energy giving best cable protection classification) · · Positive contact indication (guaranteed on/off indication) · · Trip free mechanism operates even when the toggle is locked on · · Lockable in the ON or OFF position · · Speed of connection of Plug-On devices – guaranteed connection Plug-On devices · · For use in LoadCentre KQ A and B boards · · Thermo-magnetic trip unit technology · · White Colour · · Network type AC

39 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SE10C116 Categories: , , Brand: Part Number: 2500577537

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Recess depth 78.5 mm Rated voltage 240 V Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated current 16 A Number of protected poles 1 Width in number of modular spacings 1 Number of poles (total) 1 Current limiting class 3 Over voltage category 3 Pollution degree 2 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated insulation voltage Ui 440 V Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -25 – 60 °C Suitable for flush-mounted installation No Concurrently switching N-neutral No Additional equipment possible Yes · Technical Data Sheet – Click to Download
