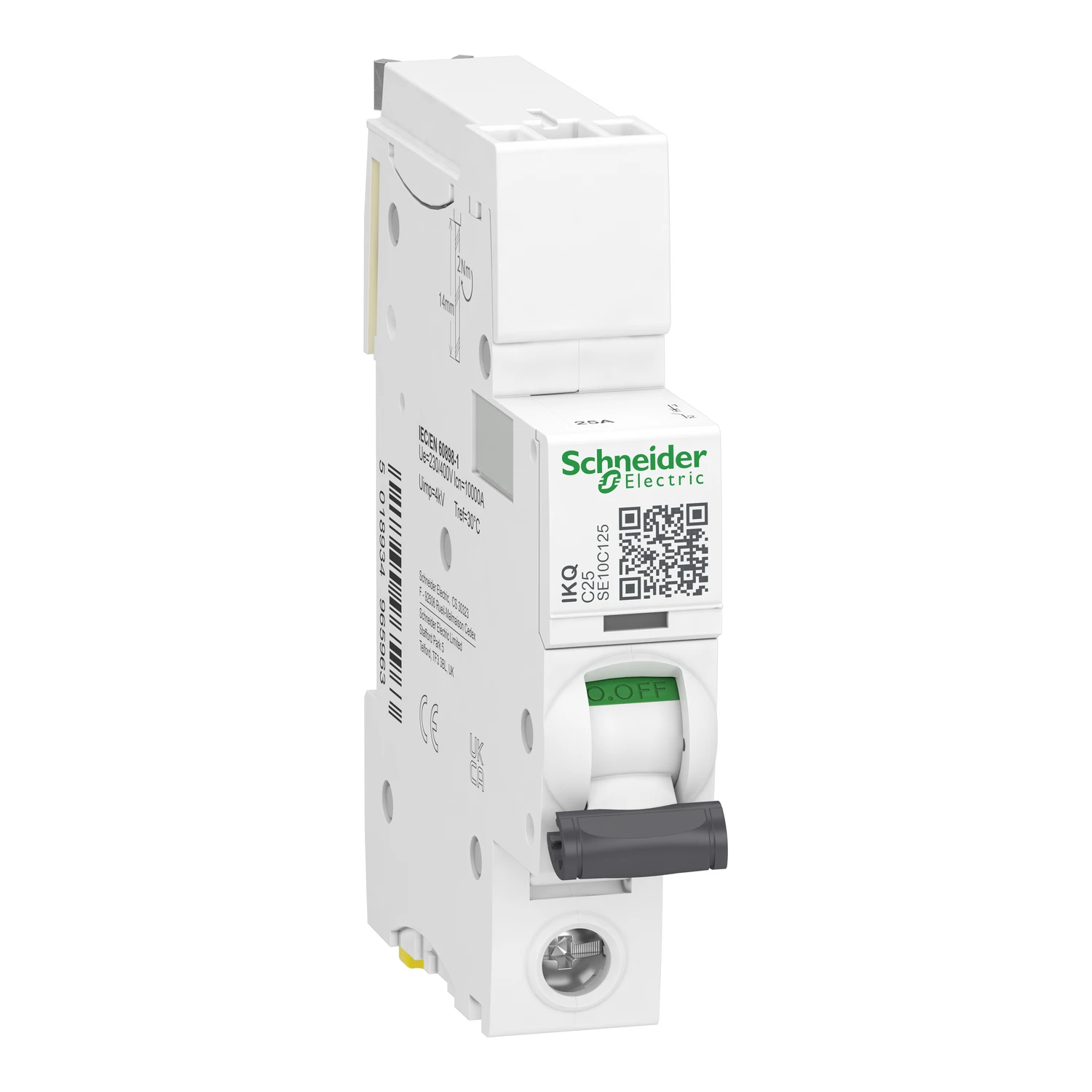

Schneider Electric MCB iKQ Single Pole Type C 25A 10kA
Schneider Electric MCB iKQ Single Pole Type C 25A 10kA
Schneider Electric MCB iKQ Single Pole Type C 25A 10kA - Image 2
Schneider Electric MCB iKQ Single Pole Type C 25A 10kA - Image 3

Schneider Electric MCB iKQ Single Pole Type C 25A 10kA

£19.16 Incl. VAT

This Schneider LoadCentre KQ MCB has a click-in busbar for speed of installation and guaranteed connection, has a 10kA breaking capacity and has a trip free mechanism that operates even when the toggle is locked on. The LoadCentre KQ MCB’s are lockable in the on or off position and is suitable for any Schneider Loadcentre KQ A and B type distribution boards. · · · Trip free mechanism operates even when the toggle is locked on · · Lockable in the ON or OFF position · · Speed of connection of Plug-On devices – guaranteed connection Plug-On devices · · For use in LoadCentre KQ A and B boards · · Network type AC · · Can Be Fitted In Any Spare Outgoing Ways · · Earth & Neutral Terminal Points · · Safety Feature – Throughout Offer · · Let through energy classification of 3 · · The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SE10C125 Categories: , , Brand: Product Code: 2500577539

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated voltage 240 V Width in number of modular spacings 1 Rated current 25 A Recess depth 78.5 mm Rated insulation voltage Ui 440 V Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Over voltage category 3 Current limiting class 3 Number of protected poles 1 Pollution degree 2 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -25 – 60 °C Concurrently switching N-neutral No Additional equipment possible Yes · Technical Data Sheet – Click to Download
