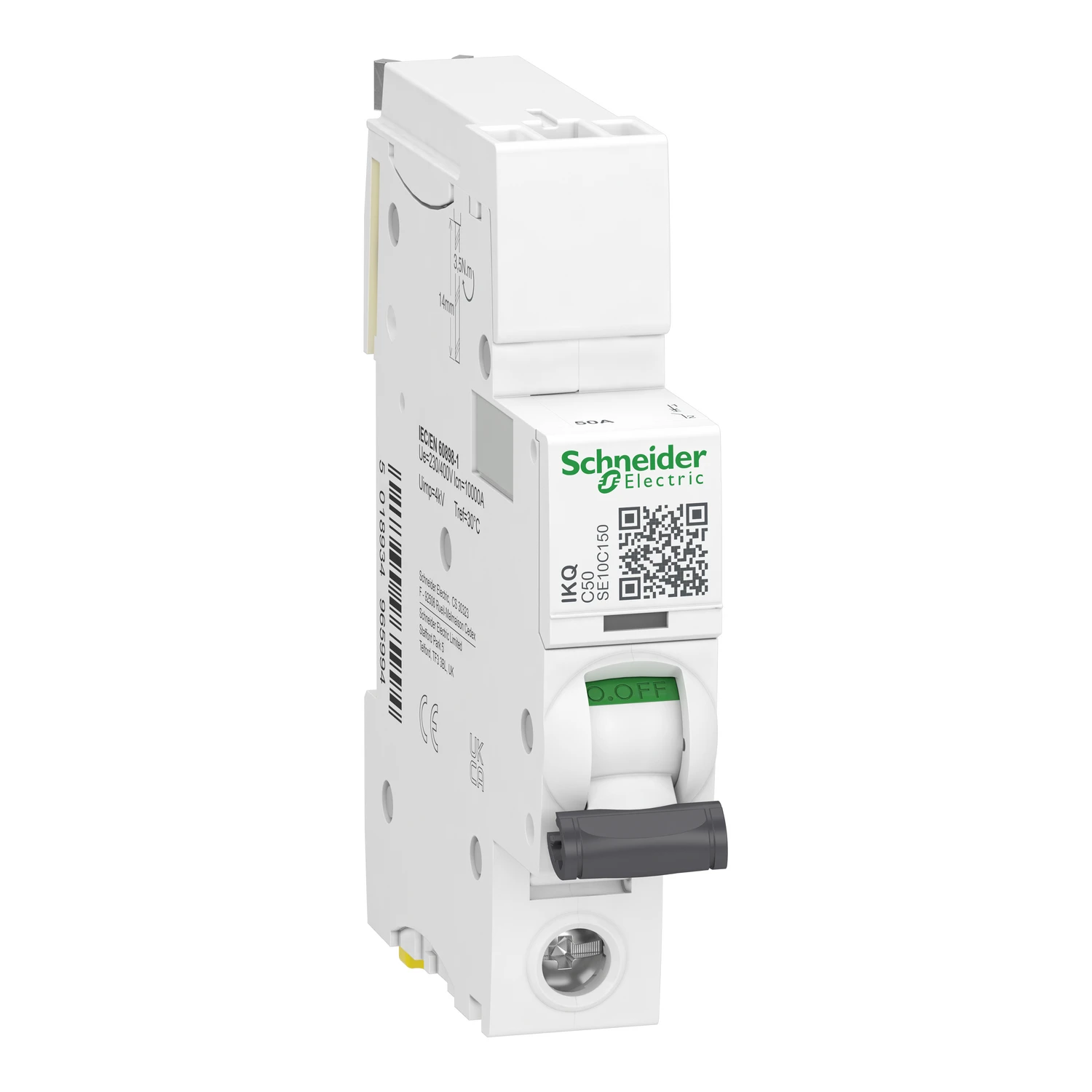

Schneider Electric MCB iKQ Single Pole Type C 50A 10kA

SKU: SE10C150Go Magpie ID: 5060062358457

This Schneider LoadCentre KQ MCB has a click-in busbar for speed of installation and guaranteed connection, has a 10kA breaking capacity and has a trip free mechanism that operates even when the toggle is locked on. The LoadCentre KQ MCB’s are lockable in the on or off position and is suitable for any Schneider Loadcentre KQ A and B type distribution boards. · · · BSEN60898-1 Compliant · · 10kA Breaking Capacity · · Speed of connection of Plug-On devices – guaranteed connection Plug-On devices · · For use in LoadCentre KQ A and B boards · · Network type AC · · Heat only and optical only options · · Well-suited to sensitive environments · · Recommended, in specific modes, for hotel bedrooms and hospital wards · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC.

£22.46inc VAT£18.72 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated current 50 A Recess depth 78.5 mm Rated insulation voltage Ui 440 V Number of poles (total) 1 Number of protected poles 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Current limiting class 3 Rated voltage 240 V Pollution degree 2 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Width in number of modular spacings 1 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 35 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 60 °C Concurrently switching N-neutral No Additional equipment possible Yes · Technical Data Sheet – Click to Download
