Schneider MCB SP Type C 63A 10kA
Schneider MCB SP Type C 63A 10kA
Schneider MCB SP Type C 63A 10kA - Image 2

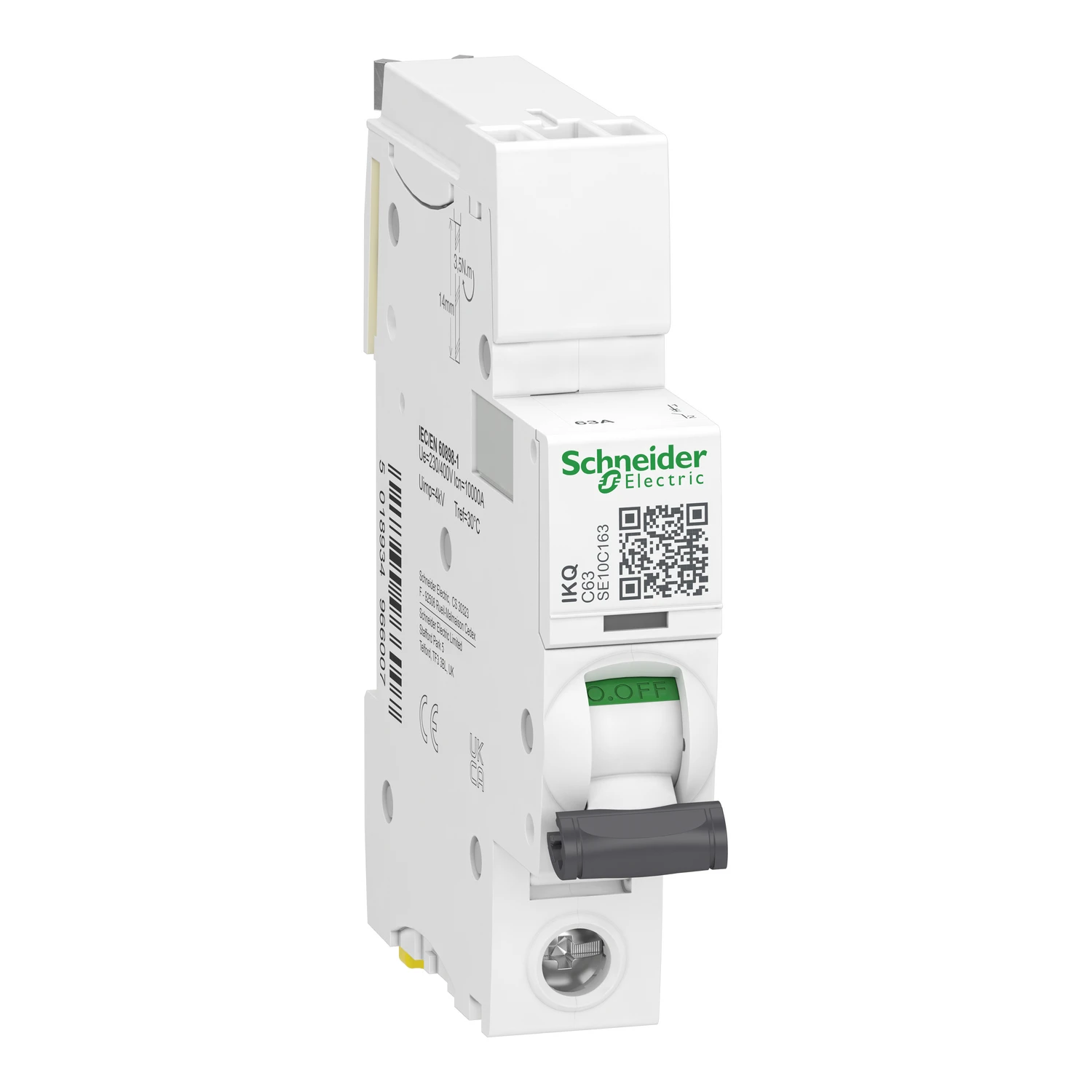

Schneider MCB SP Type C 63A 10kA - Image 3

Schneider MCB SP Type C 63A 10kA

£19.86 Incl. VAT

Acti9 iKQ 1P 63A C Miniature Circuit breaker · · · This Acti9 iKQ product is a low voltage miniature circuit breaker (MCB). · · The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. · · The Icn rated short circuit breaking capacity is up to 10000A at 240VAC conforming to EN/IEC 60898-1 standard. · · This product is compliant with EN/IEC 60898-1 standard. · · This miniature circuit breaker protects circuit against short circuit and overload current. · · The trip free mechanism operates even when the toggle is locked on. · · There is a positive contact indication to be guaranteed with on/off indication. · · Safety Feature – Throughout Offer · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC.

18 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SE10C163 Categories: , , Brand: Part Number: 2500577543

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 240 V Tripping characteristic (type/curve) C Rated insulation voltage Ui 440 V Number of protected poles 1 Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated current 63 A Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 1 Pollution degree 2 Over voltage category 3 Current limiting class 3 Recess depth 78.5 mm Frequency 50 – 60 Hz Connectable conductor cross section multi-wired 1 – 25 mm² Connectable conductor cross section solid-core 1 – 35 mm² Ambient temperature during operating -25 – 60 °C Suitable for flush-mounted installation No Concurrently switching N-neutral No Additional equipment possible Yes · Technical Data Sheet – Click to Download
