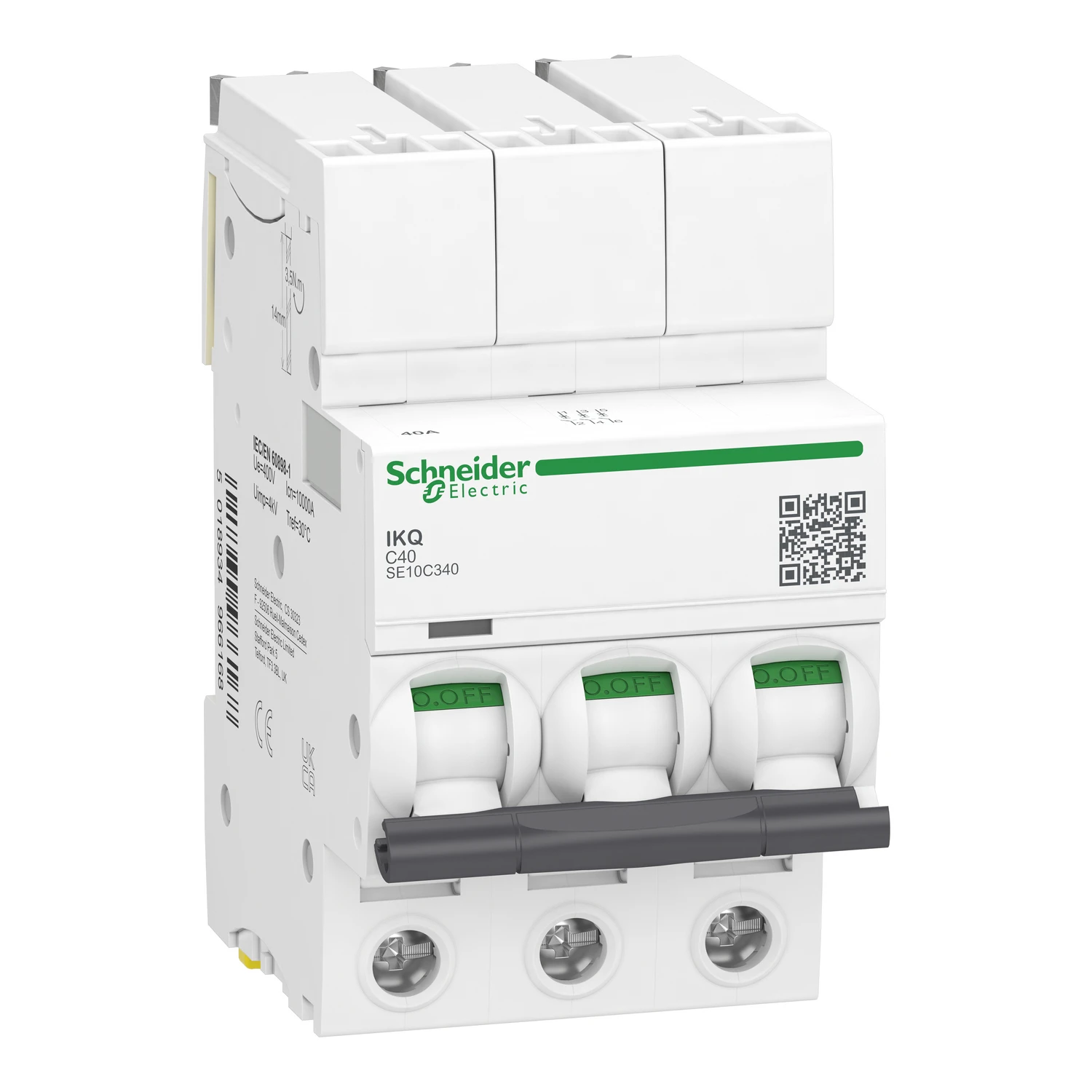

Schneider Electric MCB iKQ Triple Pole Type C 40A 10kA
£87.22 Incl. VAT
This Schneider LoadCentre KQ MCB has a click-in busbar for speed of installation and guaranteed connection, has a 10kA breaking capacity and has a trip free mechanism that operates even when the toggle is locked on. The LoadCentre KQ MCB’s are lockable in the on or off position and is suitable for any Schneider Loadcentre KQ A and B type distribution boards. · · · BSEN60898-1 Compliant · · 10kA Breaking Capacity · · Speed of connection of Plug-On devices – guaranteed connection Plug-On devices · · For use in LoadCentre KQ A and B boards · · Network type AC · · The trip free mechanism operates even when the toggle is locked on. · · There is a positive contact indication to be guaranteed with on/off indication. · · Trip free mechanism operates even when the toggle is locked on · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 440VAC.
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Recess depth 78.5 mm Rated insulation voltage Ui 440 V Over voltage category 3 Rated voltage 415 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Number of protected poles 3 Pollution degree 2 Current limiting class 3 Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Width in number of modular spacings 3 Rated current 40 A Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated impulse-withstand voltage (Uimp) 4 kV Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 35 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 60 °C Concurrently switching N-neutral No Additional equipment possible Yes · Technical Data Sheet – Click to Download
