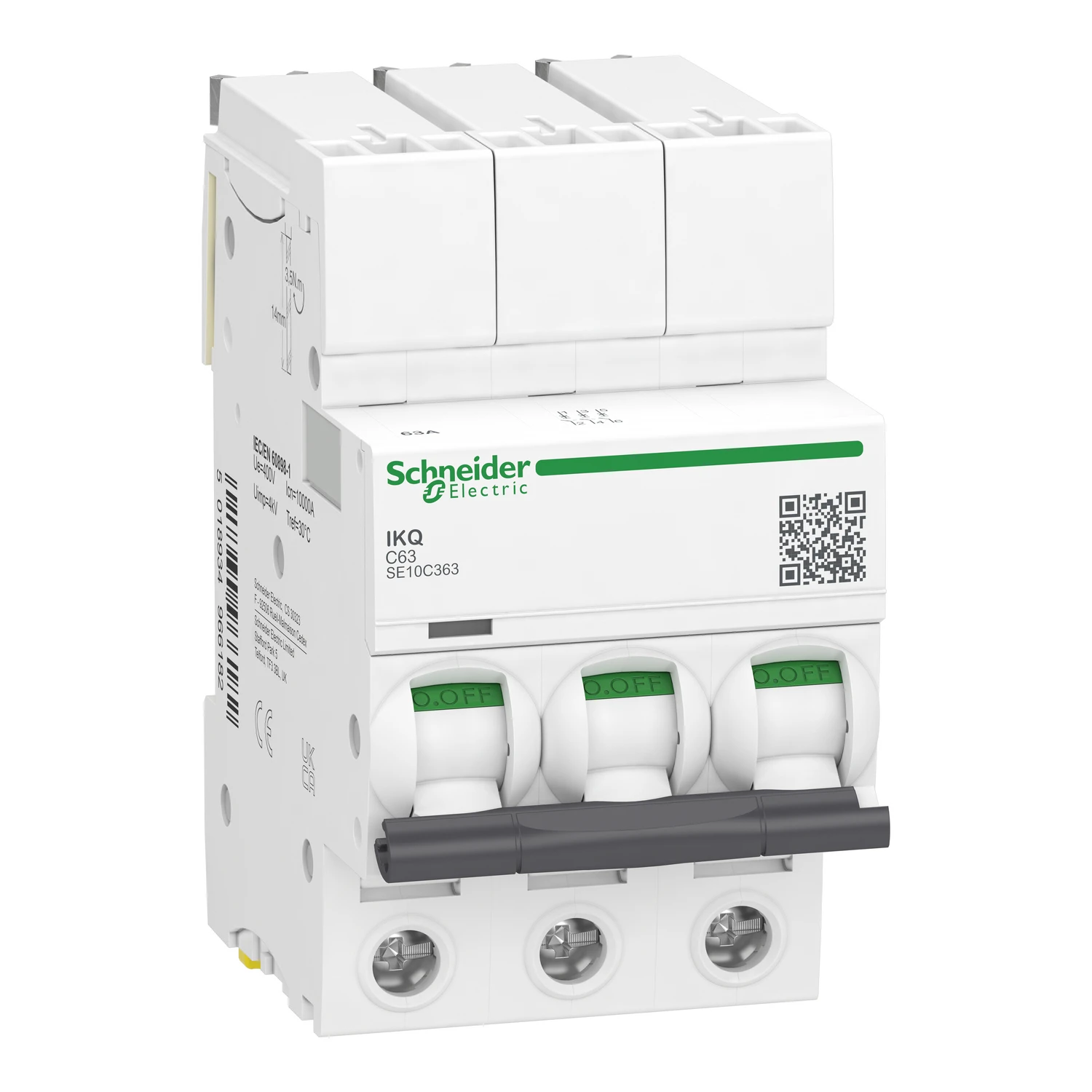

Schneider MCB TP Type C 63A 10kA
Schneider MCB TP Type C 63A 10kA
Schneider MCB TP Type C 63A 10kA - Image 2
Schneider MCB TP Type C 63A 10kA - Image 3

Schneider MCB TP Type C 63A 10kA

£74.89 Incl. VAT

Acti9 iKQ 3P 63A C Miniature Circuit breaker · · · This Acti9 iKQ product is a low voltage miniature circuit breaker (MCB). · · The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 440VAC. · · The Icn rated short circuit breaking capacity is up to 10000A at 415VAC conforming to EN/IEC 60898-1 standard. · · This product is compliant with EN/IEC 60898-1 standard. · · This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. · · The trip free mechanism operates even when the toggle is locked on. · · There is a positive contact indication to be guaranteed with on/off indication. · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 440VAC.

48 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SE10C363 Categories: , , Brand: Part Number: 2500577561

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 63 A Recess depth 78.5 mm Tripping characteristic (type/curve) C Rated voltage 415 V Rated insulation voltage Ui 440 V Width in number of modular spacings 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Frequency 50 – 60 Hz Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 3 Current limiting class 3 Number of protected poles 3 Pollution degree 2 Connectable conductor cross section solid-core 1 – 35 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 60 °C Suitable for flush-mounted installation No Concurrently switching N-neutral No Additional equipment possible Yes · Technical Data Sheet – Click to Download
