Schneider Merlin Trip Unit 3P 40A
Schneider Merlin Trip Unit 3P 40A
Schneider Merlin Trip Unit 3P 40A - Image 2
Schneider Merlin Trip Unit 3P 40A - Image 3
Schneider Merlin Trip Unit 3P 40A - Image 4

Schneider Merlin Trip Unit 3P 40A

£338.34 Incl. VAT

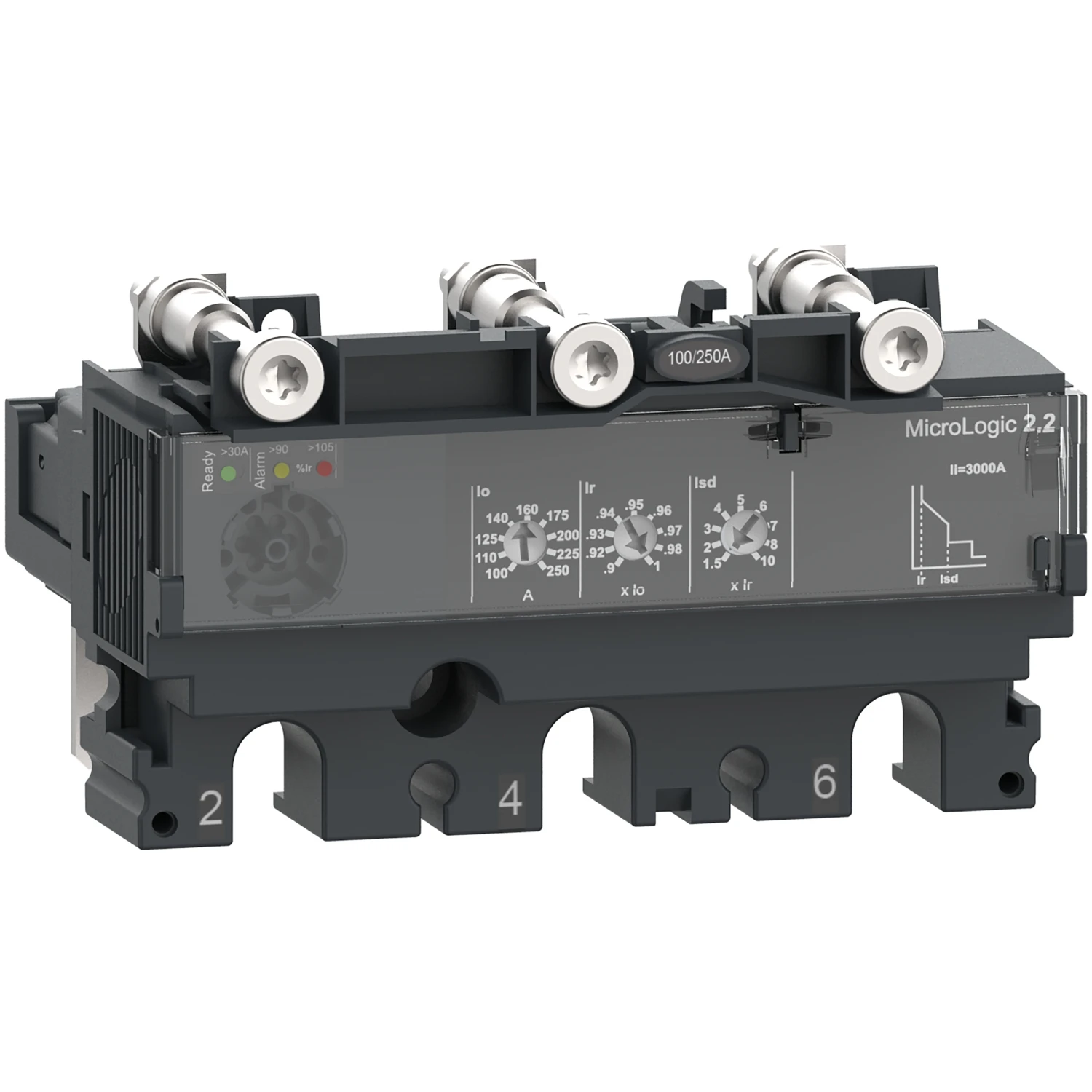

This MicroLogic 2.2 is a 3 poles 3d electronic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 40A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 2.2 indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame. · · · Schneider Electric green signature style for the entire ComPacT range · · Estimated 40% reduction of wiring time for panel builders · · Experience easier installation thanks to a new ergonomic front-plate design · · Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating · · Ergonomic new toggle for easier breaker manual operation

2 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: C1032D040 Categories: , , Brand: Part Number: 2501491418

Description

Technical Specifications  Technical Specifications Trip block for power circuit-breaker Short-circuit release function Delayed Voltage type (operating voltage) AC Type of motor protection Electronic release Width 104.7 mm Rated permanent current Iu 40 A Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally closed contact 0 Rated switch current 40 A Number of poles 3 Depth 89.4 mm Height 59.7 mm Current setting undelayed short-circuit release 600 – 600 A Operating voltage at DC – – – V Operating voltage at AC 60 Hz 690 – 690 V Operating voltage at AC 50 Hz 690 – 690 V Supply voltage DC – – – V Supply voltage AC 60 Hz – – – V Overload release current setting 18 – 40 A Current setting delayed short-circuit release 27 – 400 A External power supply required No With ground fault protection function No · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205403
