Schneider Electric Merlin Trip Unit 4P 25A
Schneider Electric Merlin Trip Unit 4P 25A
Schneider Electric Merlin Trip Unit 4P 25A - Image 2
Schneider Electric Merlin Trip Unit 4P 25A - Image 3
Schneider Electric Merlin Trip Unit 4P 25A - Image 4

Schneider Electric Merlin Trip Unit 4P 25A

£154.36 Incl. VAT

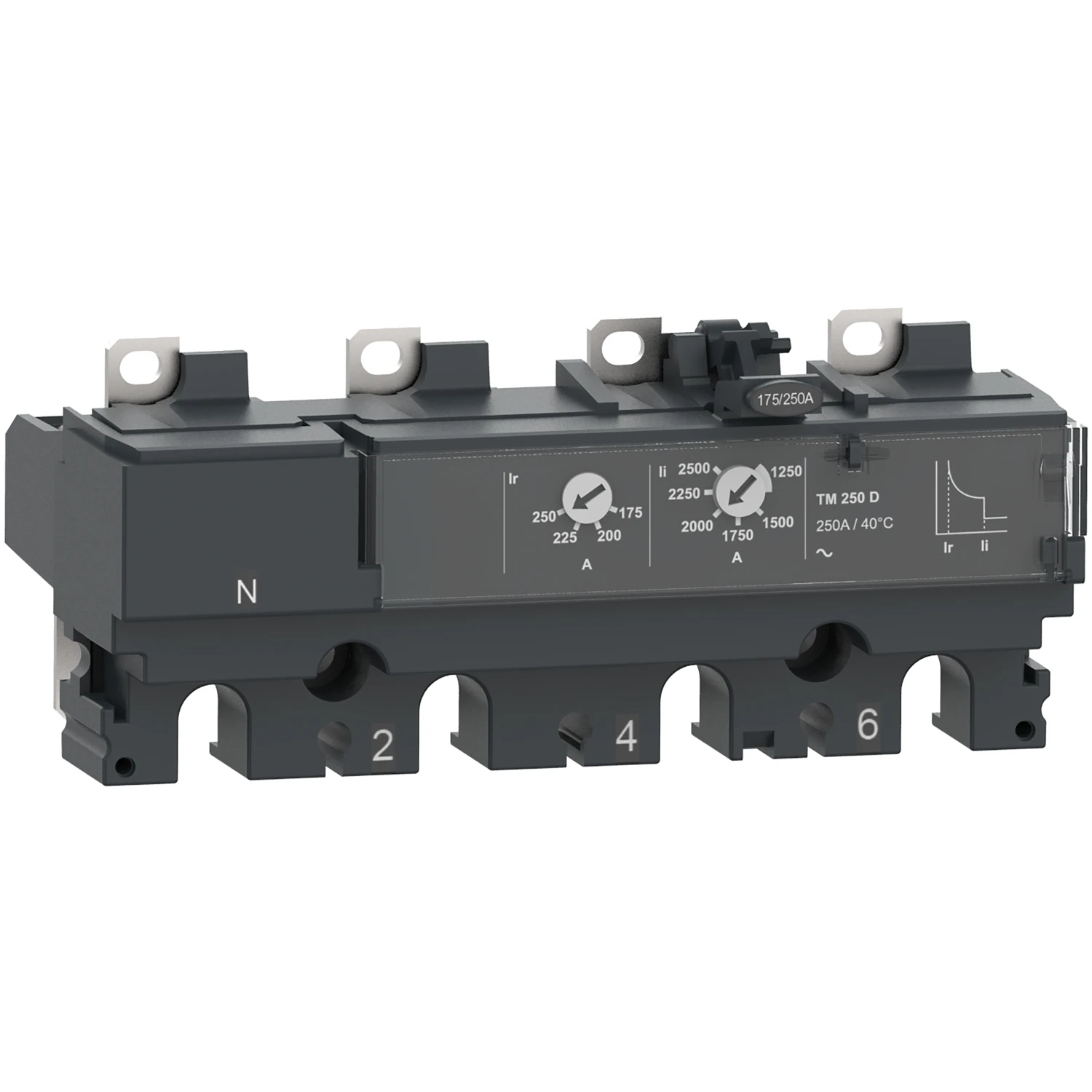

This TM25D is a 4 poles 4d thermal-magnetic trip unit used on ComPacT NSX 100 circuit breakers. This 25A rating thermal-magnetic trip unit is an optimum choice for all distribution applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame. · · · Schneider Electric green signature style for the entire ComPacT range · · Estimated 40% reduction of wiring time for panel builders · · Experience easier installation thanks to a new ergonomic front-plate design · · Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating · · Ergonomic new toggle for easier breaker manual operation

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: C104TM025 Categories: , , Brand: Product Code: 2501491485

Description

Technical Specifications  Technical Specifications Trip block for power circuit-breaker Type of motor protection Thermal/magnetic release Short-circuit release function Undelayed Voltage type (operating voltage) AC Width 139.7 mm Rated permanent current Iu 25 A Number of auxiliary contacts as normally open contact 0 Rated switch current 25 A Number of auxiliary contacts as normally closed contact 0 Number of poles 4 Number of auxiliary contacts as change-over contact 0 Height 60.6 mm Depth 88.2 mm Overload release current setting 17.5 – 25 A Supply voltage AC 50 Hz – – – V Supply voltage AC 60 Hz – – – V Supply voltage DC – – – V Operating voltage at AC 50 Hz 690 – 690 V Operating voltage at AC 60 Hz 690 – 690 V Operating voltage at DC – – – V Current setting undelayed short-circuit release 300 – 300 A Current setting delayed short-circuit release – – – A External power supply required No With ground fault protection function No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205407
