Schneider Merlin Trip Unit 4P 80A
£259.43 Incl. VAT

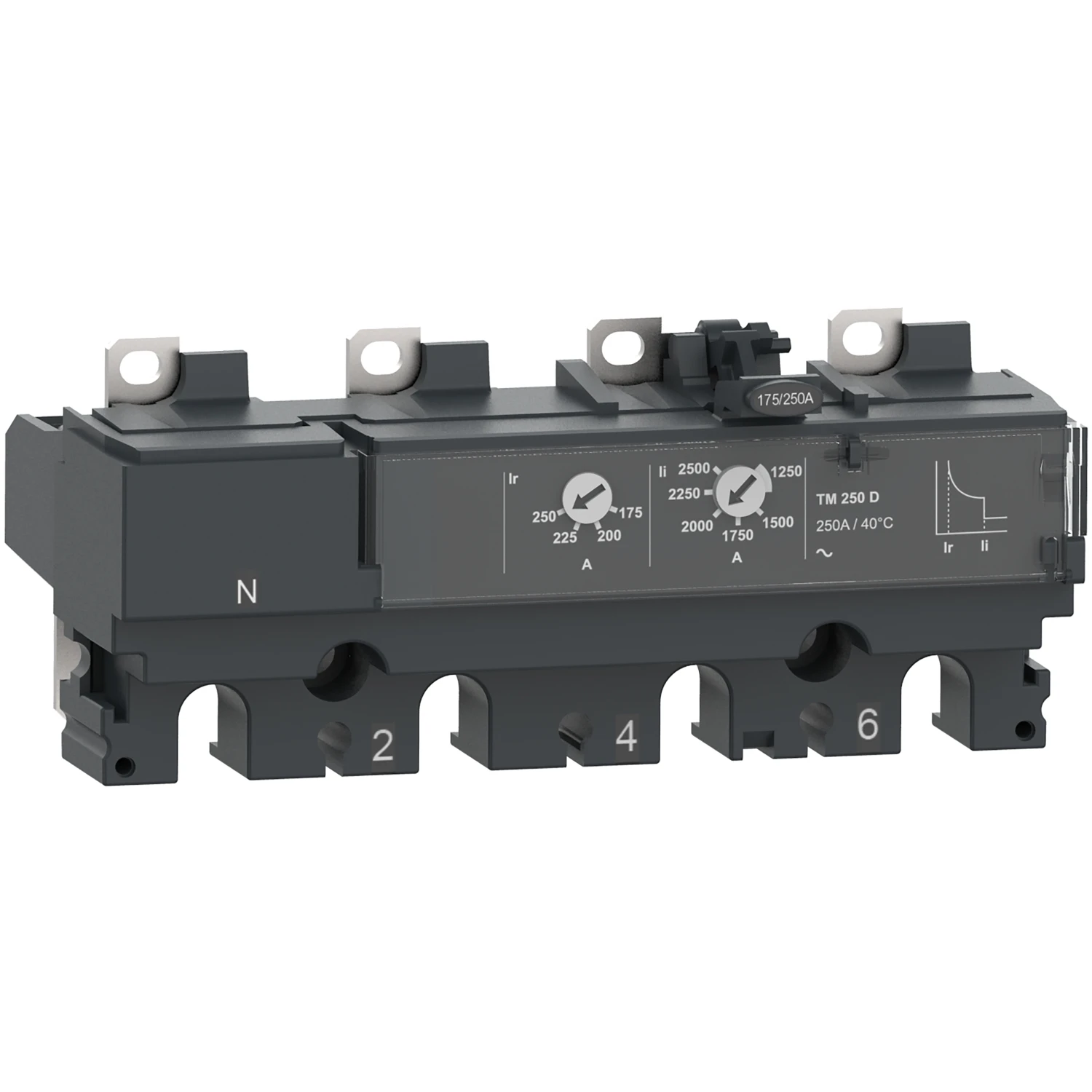

This TM80D is a 4 poles 4d thermal-magnetic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 80A rating thermal-magnetic trip unit is an optimum choice for all distribution applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame. · · · Schneider Electric green signature style for the entire ComPacT range · · Estimated 40% reduction of wiring time for panel builders · · Experience easier installation thanks to a new ergonomic front-plate design · · Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating · · Ergonomic new toggle for easier breaker manual operation
2 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Trip block for power circuit-breaker Type of motor protection Thermal/magnetic release Short-circuit release function Undelayed Voltage type (operating voltage) AC Width 139.7 mm Rated permanent current Iu 80 A Number of auxiliary contacts as change-over contact 0 Depth 88.2 mm Supply voltage AC 60 Hz – – – V Overload release current setting 56 – 80 A Height 60.6 mm Number of poles 4 Rated switch current 80 A Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Supply voltage DC – – – V Operating voltage at AC 60 Hz 690 – 690 V Operating voltage at AC 50 Hz 690 – 690 V Operating voltage at DC – – – V Current setting undelayed short-circuit release 640 – 640 A External power supply required No With ground fault protection function No · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205407
