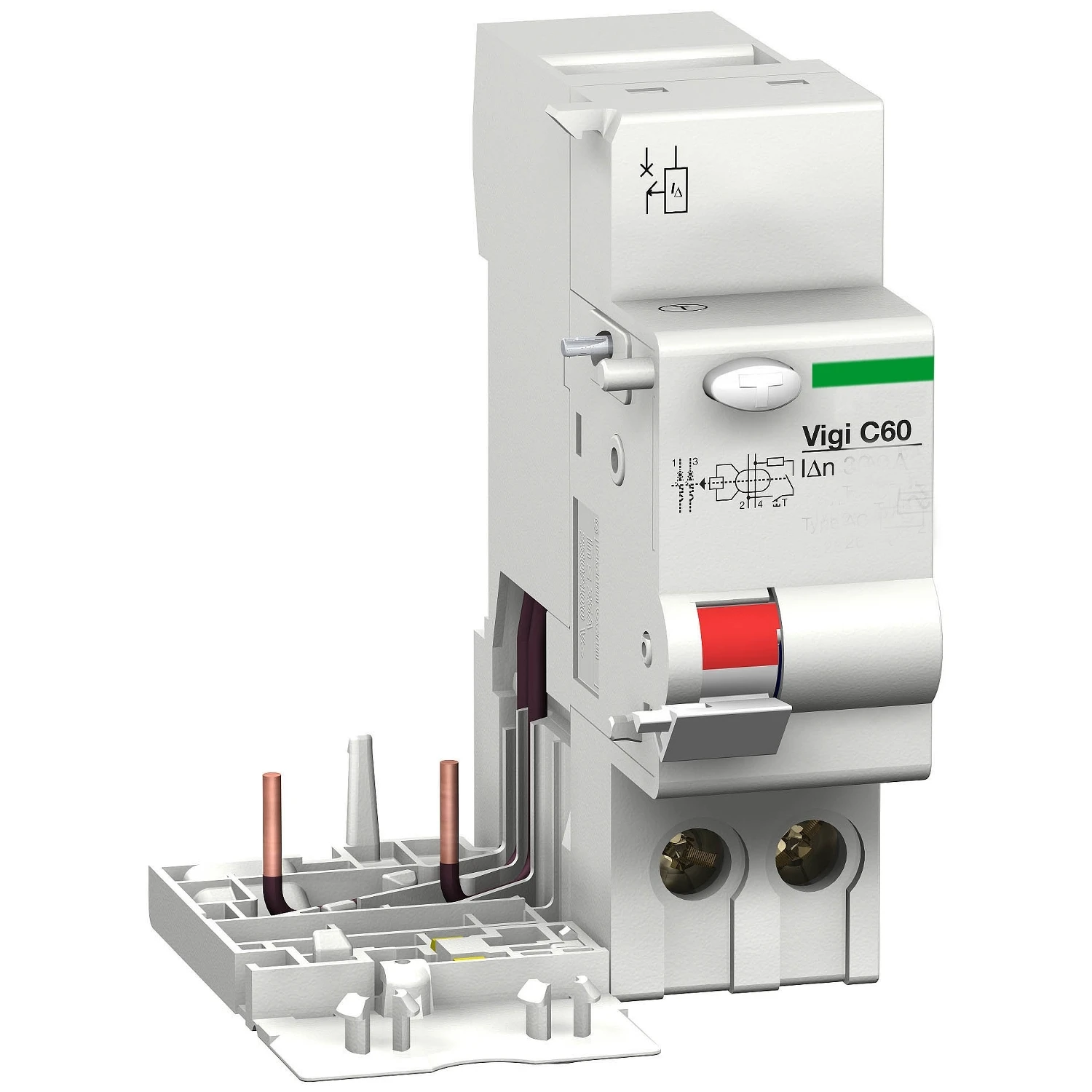

Schneider Electric Multi9 – Vigi C60 – 2P – 63A – class AC – 230/400 V – 30mA

£152.47 Incl. VAT

Multi9 – Vigi C60 – 2P – 63A – class AC – 230/400 V – 30mA · · · Combined with C60 circuit breaker, the Vigi C60 provide: · · protection of persons against electric shock by direct contact (30 mA), · · protection of persons against electric shock by indirect contact (300 mA), · · protection of installations against the risk of fire (300 mA). The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments · · This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. · · The Ue rated operational voltage is 230VAC or 240VAC. · · The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: M9V11263 Categories: , , Brand: Product Code: 2501543224

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) module Rated insulation voltage Ui 500 V Pollution degree 3 Surge current capacity 0.25 kA Max. delay time 0 ms Rated impulse-withstand voltage (Uimp) 4 kV Number of poles 2 Nominal current 63 A Nominal voltage 230 – 240 V Connectable conductor cross section solid-core 1 – 35 mm² Rated fault current 0.03 – 0.03 A Ambient temperature during operating 5 – 60 °C Connectable conductor cross section multi-wired 1 – 25 mm² With interlocking device No Delay adjustable No Rated fault current adjustable No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
