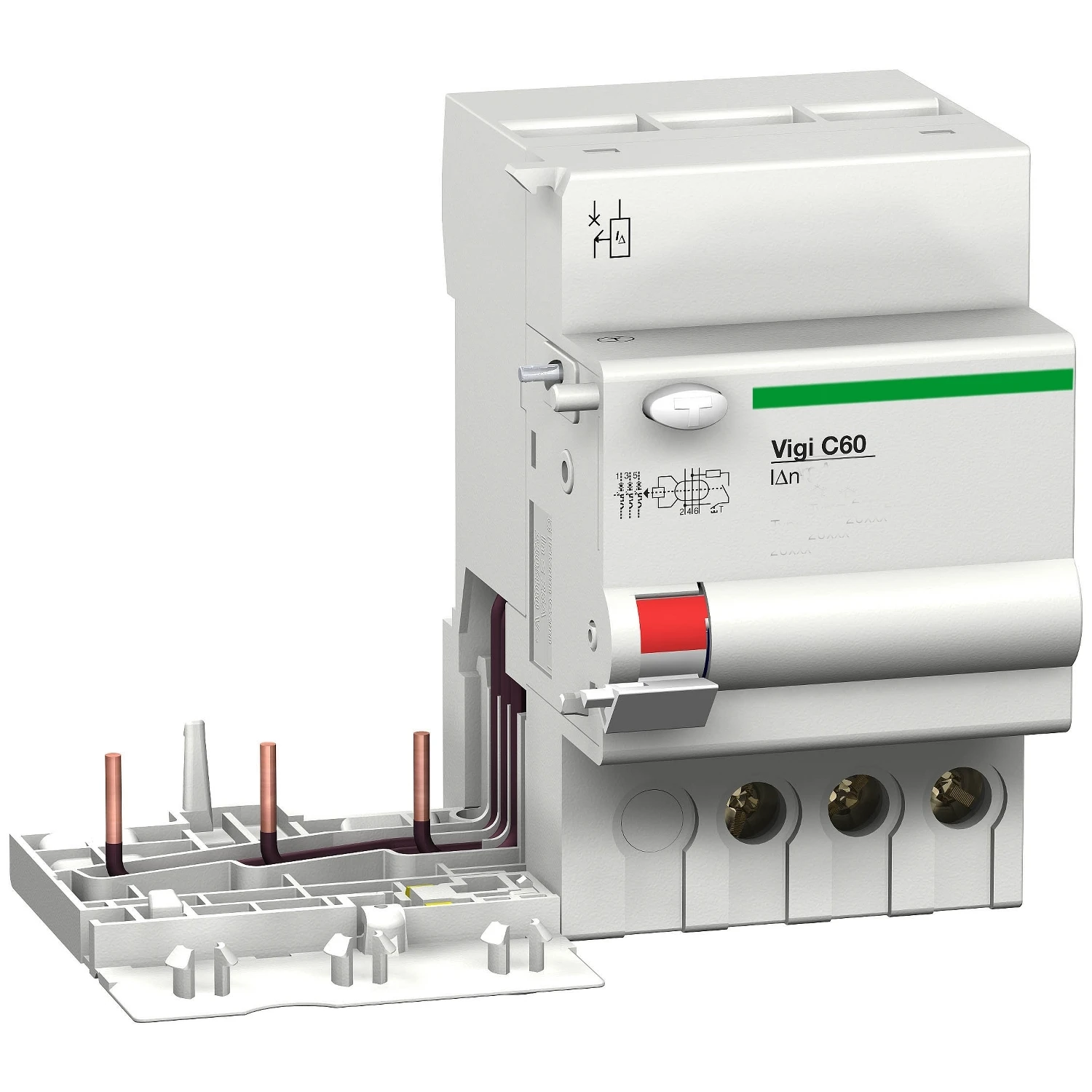

Schneider Multi9 – Vigi C60 – 3P – 63A – class A SI – 230/400 V – 30mA

£182.77 Incl. VAT

· · This Vigi C60 is a modular add-on residual current devices. · · It is a 3P and rated current is 63A. · · The earth leakage protection class is A-SI type with a sensitivity of 30mA and a voltage independent technology. · · This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. · · The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments. · · This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. · · The Ue rated operational voltage is 400VAC or 415VAC. · · The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: M9V31363 Categories: , , Brand: Part Number: 2501543228

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) module Degree of protection (IP rating) IP20 Leakage current type A Frequency 50 Hz Number of poles 3 Max. delay time 0 ms Rated impulse-withstand voltage (Uimp) 4 kV Surge current capacity 3 kA Rated insulation voltage Ui 500 V Nominal current 63 A Pollution degree 3 Anti-nuisance tripping version Yes With interlocking device No Ambient temperature during operating 25 – 60 °C Connectable conductor cross section multi-wired 1 – 25 mm² Connectable conductor cross section solid-core 1 – 35 mm² Rated fault current 0.03 – 0.03 A Nominal voltage 400 – 415 V Delay adjustable No Rated fault current adjustable No · Technical Data Sheet – Click to Download
