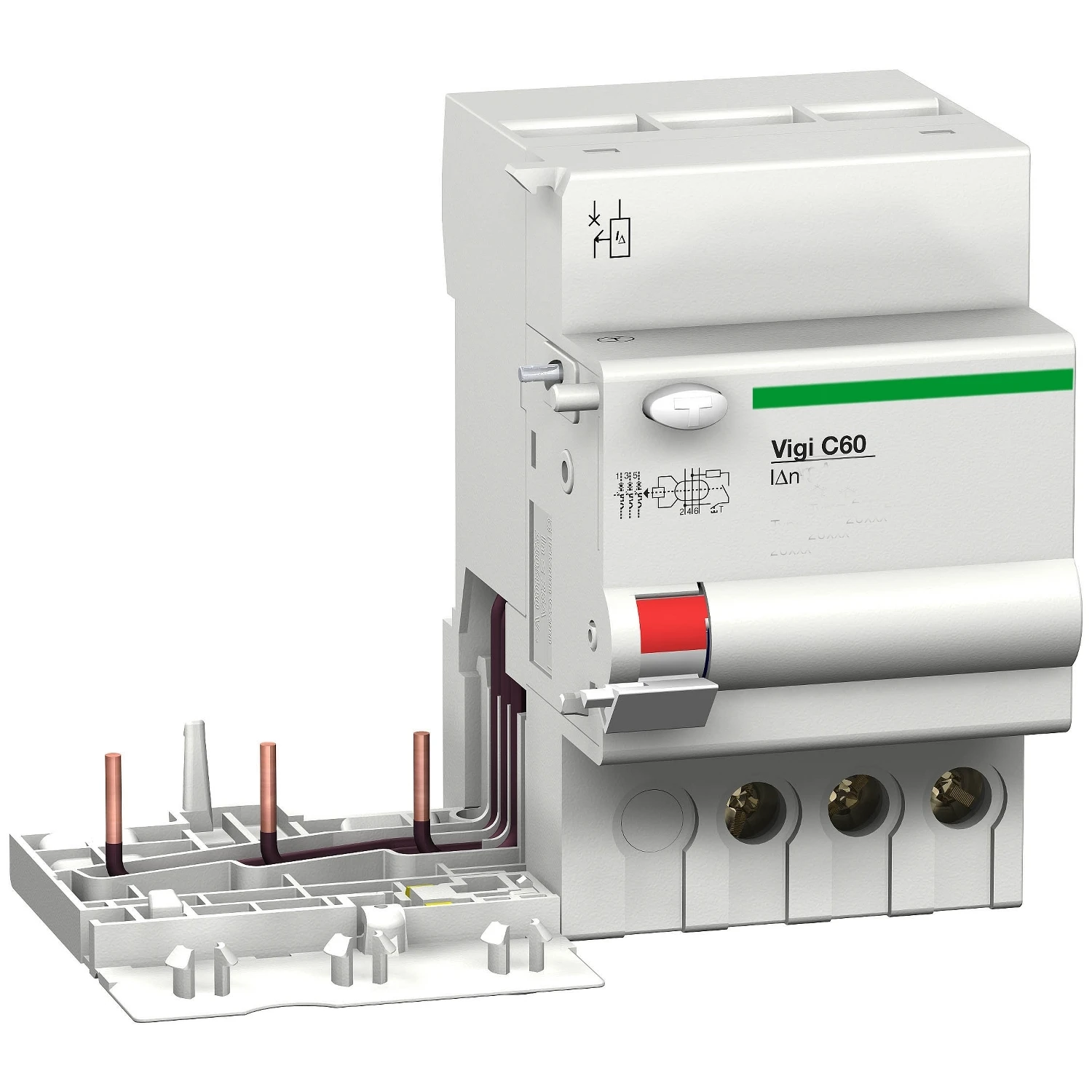

Schneider Electric Multi9 – Vigi C60 – 3P – 63A – Class AC – 230/400 V – 300mA

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) module Frequency 50 Hz Degree of protection (IP rating) IP20 Nominal current 63 A Leakage current type AC Number of poles 3 Pollution degree 3 Rated insulation voltage Ui 500 V Rated impulse-withstand voltage (Uimp) 4 kV Max. delay time 0 ms Surge current capacity 0.25 kA Nominal voltage 400 – 415 V Rated fault current 0.3 – 0.3 A Connectable conductor cross section solid-core 1 – 35 mm² Ambient temperature during operating 5 – 60 °C Connectable conductor cross section multi-wired 1 – 25 mm² Anti-nuisance tripping version No With interlocking device No Delay adjustable No Rated fault current adjustable No · Technical Data Sheet – Click to Download
