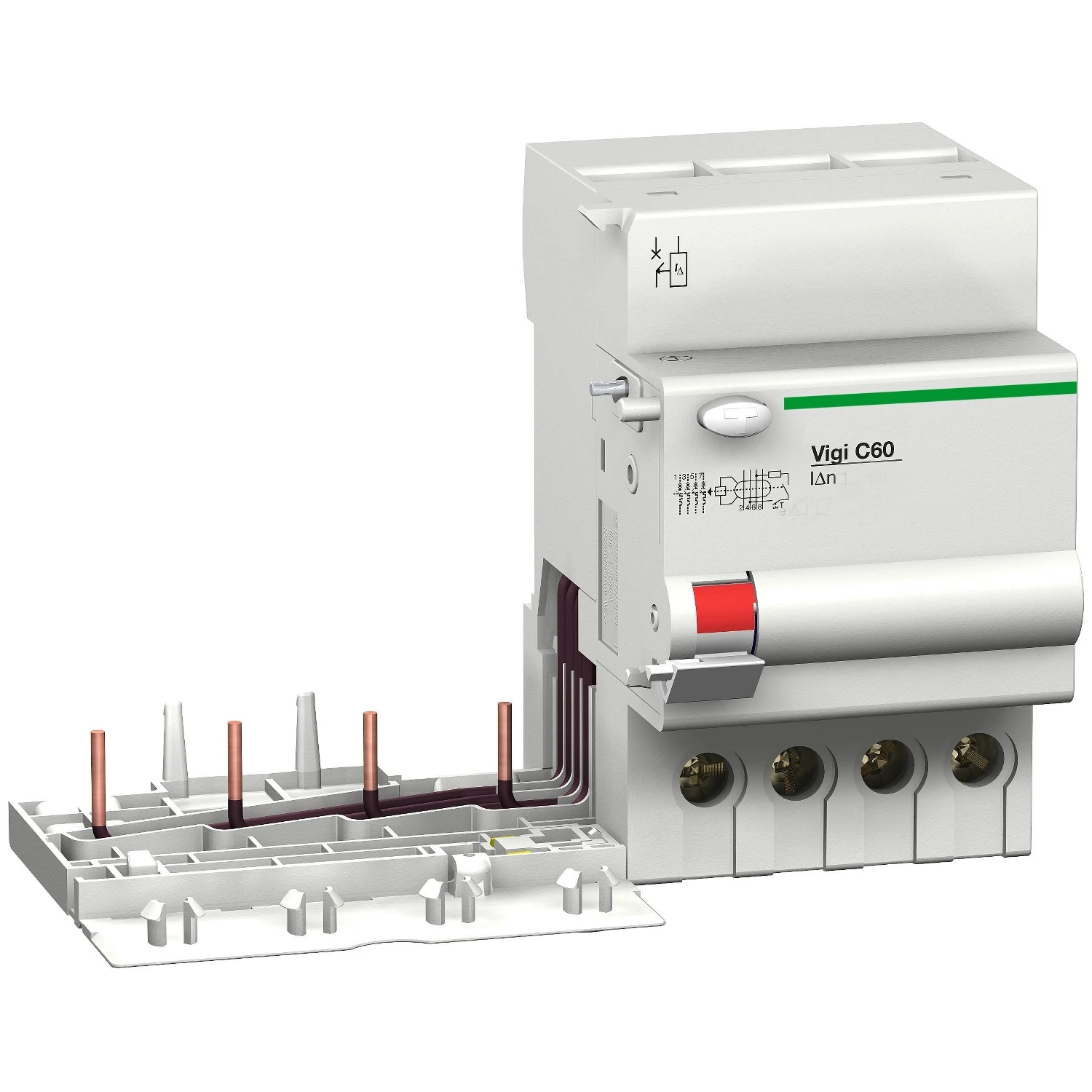

Schneider Multi9 – Vigi C60 – 4P – 63A – class A SI – 230/400 V – 30mA
£226.32 Incl. VAT
· · This Vigi C60 is a modular add-on residual current devices. · · It is a 4P and rated current is 63A. · · The earth leakage protection class is A-SI type with a sensitivity of 30mA and a voltage independent technology. · · This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. · · The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments. · · This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. · · The Ue rated operational voltage is 400VAC or 415VAC. · · The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV.
Out of stock
Description
Technical Specifications Technical Specifications Residual current circuit breaker (RCCB) module Frequency 50 Hz Leakage current type A Degree of protection (IP rating) IP20 Nominal current 63 A Nominal voltage 400 – 415 V Surge current capacity 3 kA Max. delay time 0 ms Rated impulse-withstand voltage (Uimp) 4 kV Pollution degree 3 Rated insulation voltage Ui 500 V Number of poles 4 Rated fault current 0.03 – 0.03 A Connectable conductor cross section solid-core 1 – 35 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating 25 – 60 °C Anti-nuisance tripping version Yes With interlocking device No Delay adjustable No Rated fault current adjustable No · Technical Data Sheet – Click to Download
