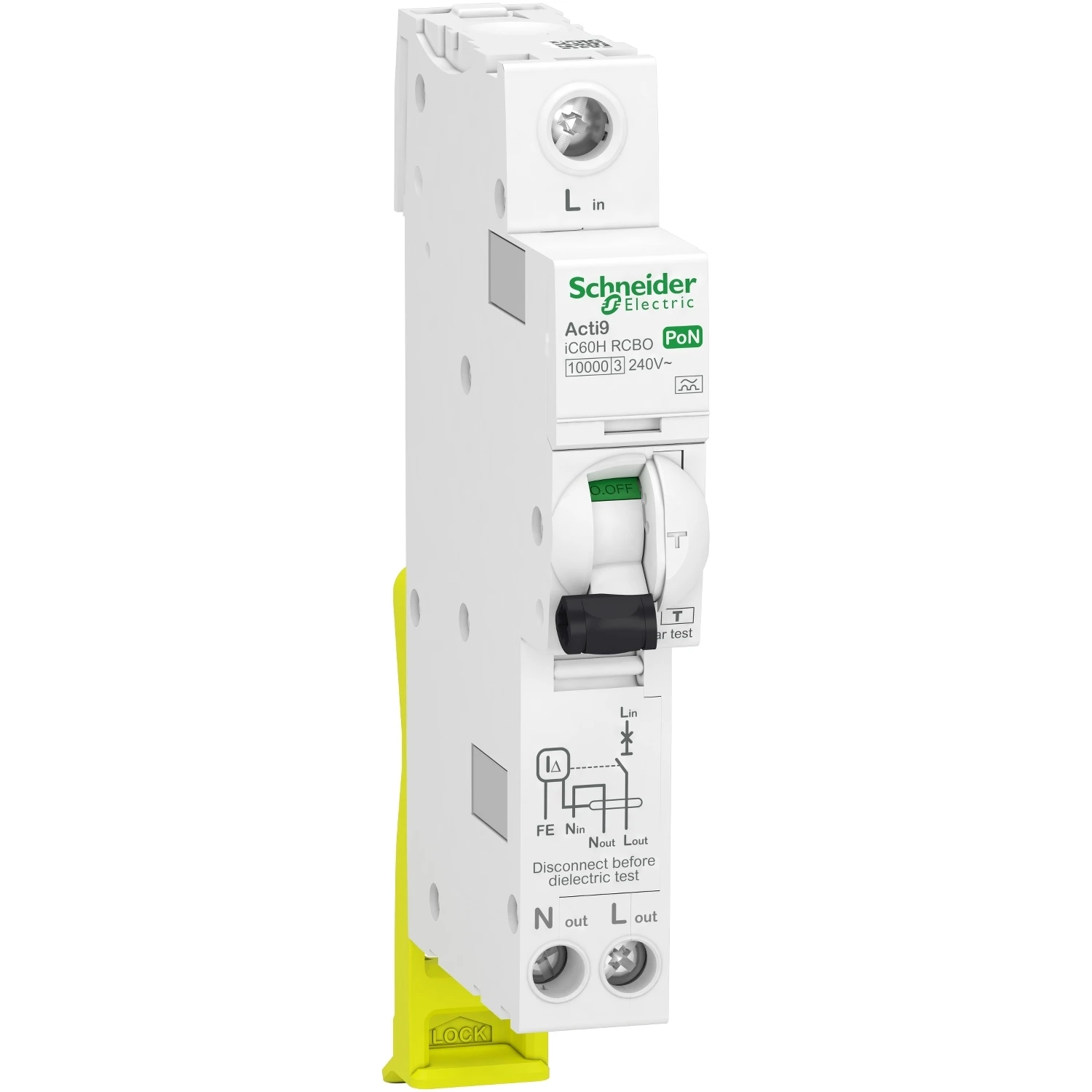

Schneider RCBO Acti9 Isobar P iC60H 1P+Ns 6A 10kA 10mA – Curve C – Type A

£240.08 Incl. VAT

The Schneider Electric Acti9 ic60H PoN RCBO is designed to be install to the Schneider Acti9 Isobar P PoN Distribution Boards only. This 6Amp 10mA C Type single pole, 240 volt RCBO has a 10KA rating (In) with a ‘Plug on Neutral’ and earth that reduces installation time and is available in 10 & 100mA. · · · Plug on neutral cuts installation time by 50% and provides enhanced safety and reliability · · Compact design is perfect for space-saving solutions · · Padlockable in ON/OFF positions · · Clip-on DIN rail mounting mode · · 20000 cycle mechanical durability · · 5000 cycle electrical durability · · Green Premium Product

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9D01806 Categories: , , Brand: Part Number: 2501108948

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated current 6 A Recess depth 72 mm Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Tripping characteristic (type/curve) C Rated fault current 0.01 A Rated voltage 240 V Number of protected poles 1 Current limiting class 3 Surge current capacity 0.25 kA Number of poles (total) 2 Over voltage category 2 Pollution degree 3 Rated insulation voltage Ui 400 V Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Width in number of modular spacings 1 Ambient temperature during operating -15 – 60 °C Concurrently switching N-neutral No Suitable for flush-mounted installation No Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205383
