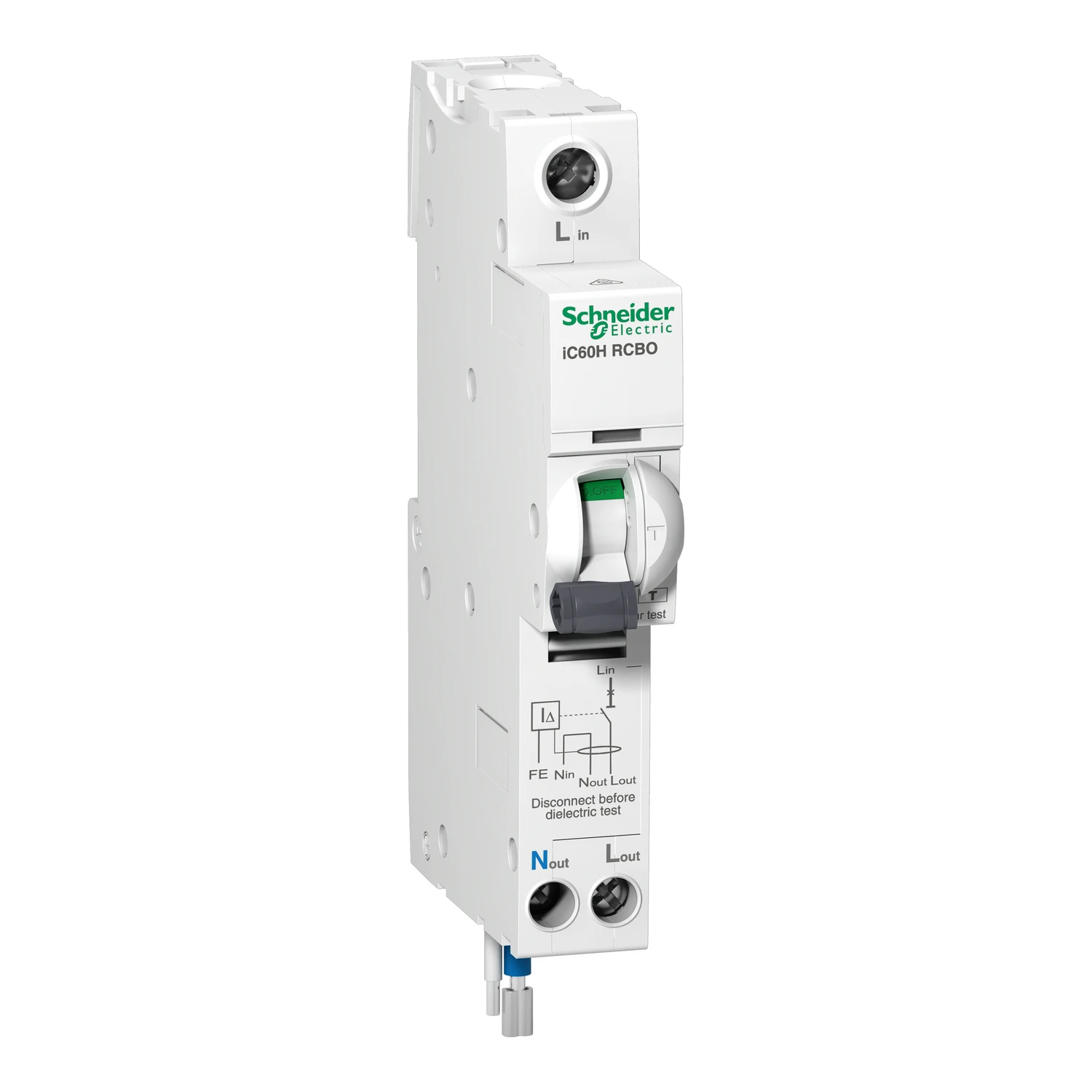

Schneider RCBO iC60H Single Pole+Neutral Class A Type C 32A 30mA 10kA

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). Protects against short-circuits and cable overloads Protects people against electric shock by direct or indirect contact Protects equipment against fires set by leakage currents IP20 Insulated terminals Test push-button Visi-Trip window: Fault tripping is indicated by a red mechanical indicator on the front face Positive contact indication: The green strip guarantees physical opening of the contacts and permits Optional accessories: contacts The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 110mm x (D) 77.5mm. The weight is 205g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C. · · · Compatible with Isobar P distribution boards · · Protects against short-circuits and cable overloads · · Protects people against electric shock by direct or indirect contact · · Protects equipment against fires set by leakage currents · · IP20 Insulated terminals · · Test push-button · · Visi-Trip window: Fault tripping is indicated by a red mechanical indicator on the front face · · Positive contact indication: The green strip guarantees physical opening of the contacts and permits · · Optional accessories: contacts · · The Ue operational voltage is 240VAC.
