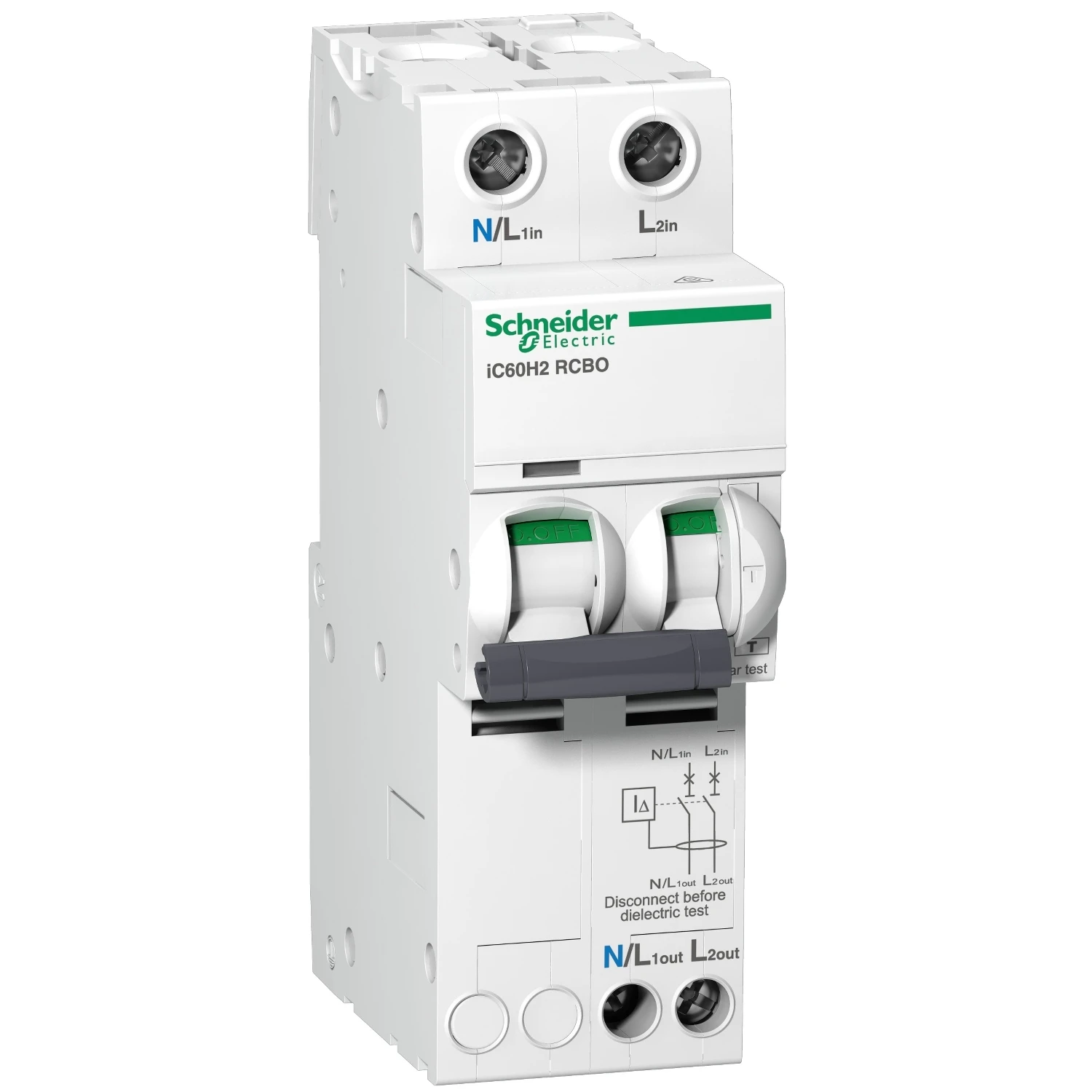

Schneider Electric RCBO Ic60H2 Double Pole Curve C Typea 16A 110V Overcurrent Protect

Brand: Schneider ElectricProduct code: A9D19216Go Magpie Ref: 5060062327051

A9iC60H2 2P 16A C 30mA 110v RCBO · · · This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). · · It is a 2P circuit breaker with 1 protected pole and 16A In rated current and C tripping curve. · · The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. · · The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. · · Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. · · Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. · · Its fast closing mechanism independent of manual operation improves its service life. · · This product is compliant with AS/NZS 61009.1 and IEC 61009-2-2 standard. · · It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 110VAC.

£225.29inc VAT£187.74 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Pollution degree 3 Current limiting class 3 Over voltage category 4 Surge current capacity 0.25 kA Number of poles (total) 2 Rated fault current 0.03 A Number of protected poles 2 Rated current 16 A Width in number of modular spacings 2 Rated voltage 110 V Rated insulation voltage Ui 400 V Recess depth 45 mm Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -15 – 60 °C Concurrently switching N-neutral Yes With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2199805
