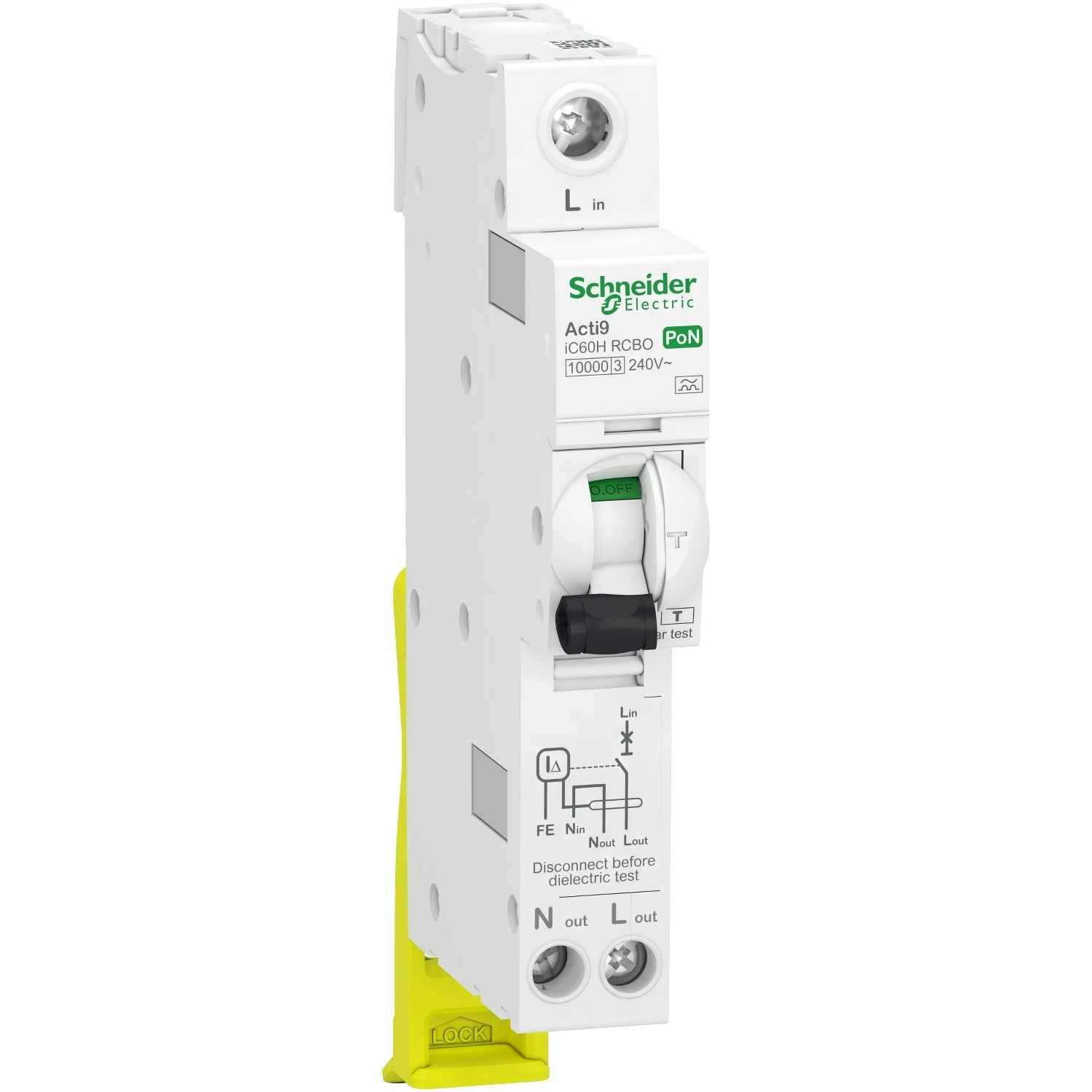

Schneider Electric RCBO Plug On Neutral Ic60H Single Pole + Neutral Class A Type C 10A 10mA 10kA
Schneider Electric RCBO Plug On Neutral Ic60H Single Pole + Neutral Class A Type C 10A 10mA 10kA
Schneider Electric RCBO Plug On Neutral Ic60H Single Pole + Neutral Class A Type C 10A 10mA 10kA - Image 2
Schneider Electric RCBO Plug On Neutral Ic60H Single Pole + Neutral Class A Type C 10A 10mA 10kA - Image 3

Schneider Electric RCBO Plug On Neutral Ic60H Single Pole + Neutral Class A Type C 10A 10mA 10kA

£107.47 Incl. VAT

The Schneider Electric Acti9 ic60H PoN RCBO is designed to be install to the Schneider Acti9 Isobar P PoN Distribution Boards only. This 10Amp 10mA C Type single pole, 240 volt RCBO has a 10KA rating (In) with a ‘Plug on Neutral’ and earth that reduces installation time and is available in 10 & 100mA. · · · Plug on neutral cuts installation time by 50% and provides enhanced safety and reliability · · Compact design is perfect for space-saving solutions · · Padlockable in ON/OFF positions · · Clip-on DIN rail mounting mode · · 20000 cycle mechanical durability · · 5000 cycle electrical durability · · Green Premium Product

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9D01810 Categories: , , Brand: Product Code: 2501108977

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated voltage 240.00 V Tripping characteristic (type/curve) C Current limiting class 3.00 Number of poles (total) 2.00 Number of protected poles 1.00 Pollution degree 3.00 Surge current capacity 0.25 kA Over voltage category 2.00 Rated insulation voltage Ui 400.00 V Rated fault current 0.01 A Recess depth 72.00 mm Rated impulse-withstand voltage (Uimp) 4.00 kV Rated current 10.00 A Rated short-circuit breaking capacity Icn according to EN 61009-1 10.00 kA Width in number of modular spacings 1.00 Connectable conductor cross section solid-core 1.00 – 25.00 mm² Connectable conductor cross section multi-wired 1.00 – 16.00 mm² Ambient temperature during operating -15.00 – 60.00 °C Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205383
