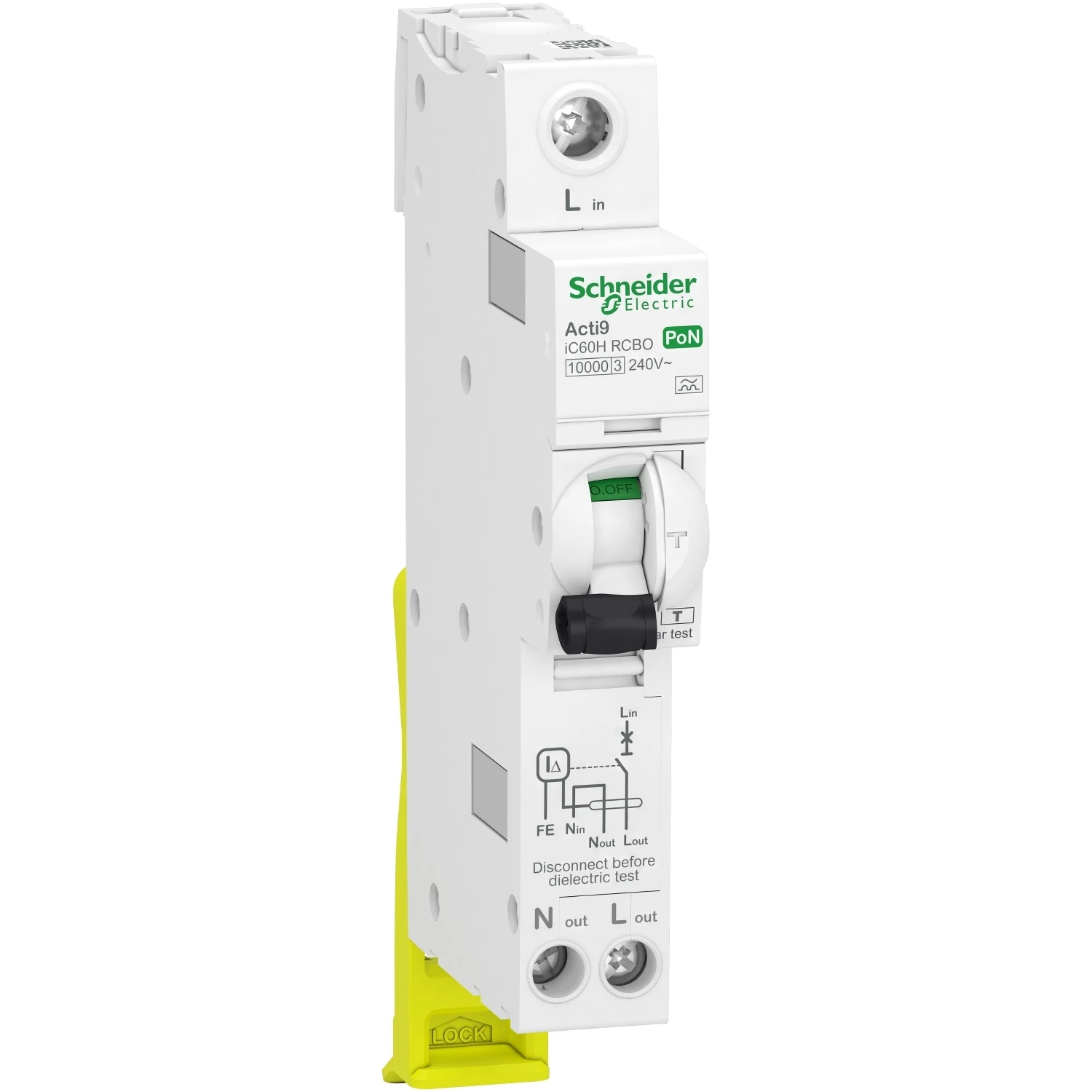

Schneider RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 16A 10mA 10kA
Schneider RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 16A 10mA 10kA
Schneider RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 16A 10mA 10kA - Image 2
Schneider RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 16A 10mA 10kA - Image 3

Schneider RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 16A 10mA 10kA

£238.26 Incl. VAT

The Schneider Electric Acti9 ic60H PoN RCBO is designed to be install to the Schneider Acti9 Isobar P PoN Distribution Boards only. This 16Amp 10mA C Type single pole, 240 volt RCBO has a 10KA rating (In) with a ‘Plug on Neutral’ and earth that reduces installation time and is available in 10 & 100mA. · · · Plug on neutral cuts installation time by 50% and provides enhanced safety and reliability · · Compact design is perfect for space-saving solutions · · Padlockable in ON/OFF positions · · Clip-on DIN rail mounting mode · · 20000 cycle mechanical durability · · 5000 cycle electrical durability · · Green Premium Product

26 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9D01816 Categories: , , Brand: Part Number: 2501108988

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Number of poles (total) 2.00 Number of protected poles 1.00 Tripping characteristic (type/curve) C Rated insulation voltage Ui 400.00 V Current limiting class 3.00 Rated fault current 0.01 A Pollution degree 3.00 Over voltage category 2.00 Surge current capacity 0.25 kA Width in number of modular spacings 1.00 Rated voltage 240.00 V Ambient temperature during operating -15.00 – 60.00 °C Connectable conductor cross section multi-wired 1.00 – 16.00 mm² Connectable conductor cross section solid-core 1.00 – 25.00 mm² Rated short-circuit breaking capacity Icn according to EN 61009-1 10.00 kA Rated impulse-withstand voltage (Uimp) 4.00 kV Recess depth 72.00 mm Rated current 16.00 A With interlocking device No Suitable for flush-mounted installation No Anti-nuisance tripping version No Concurrently switching N-neutral No · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205383
