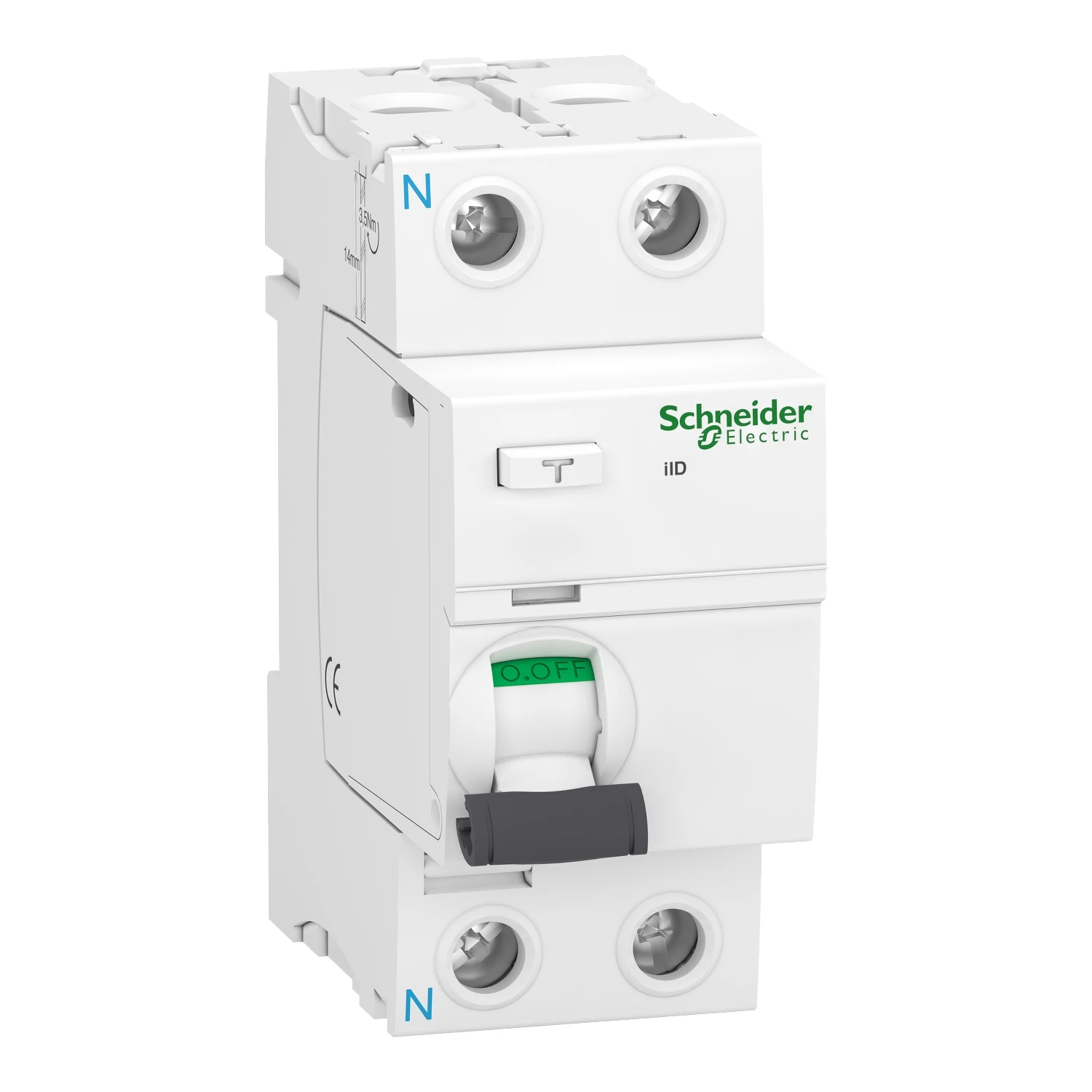

Schneider RCCB Double Pole 100A 300mA 36 x 91 x 73.5mm

Discover Act 9 iID DIN rail Residual Current Circuit-Breaker (RCCB) up to 100 A · · · This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). · · It is a 2P circuit breaker with 100A In rated current, a sensitivity of 300mA with a AC type protection class. · · This product protects against electrical shock by indirect contact and fire hazards. · · It performs the function of disconnection of electrical circuits in case of earth fault. · · Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. · · This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance · · This product is compliant with EN/IEC 61008-1 standard. · · The (Im/I?m) rated breaking and making short circuit capacity is 1500A. The (Inc/I?c) conditional rated short circuit current is 10kA. · · The mechanical endurance is going up to 20000 cycles and electrical endurance going up to 10000 cycles. · · The Ue operational voltage is 220VAC to 240VAC.
