Schneider RCCB Double Pole 100A 300Ma Time Delayed
£326.76 Incl. VAT

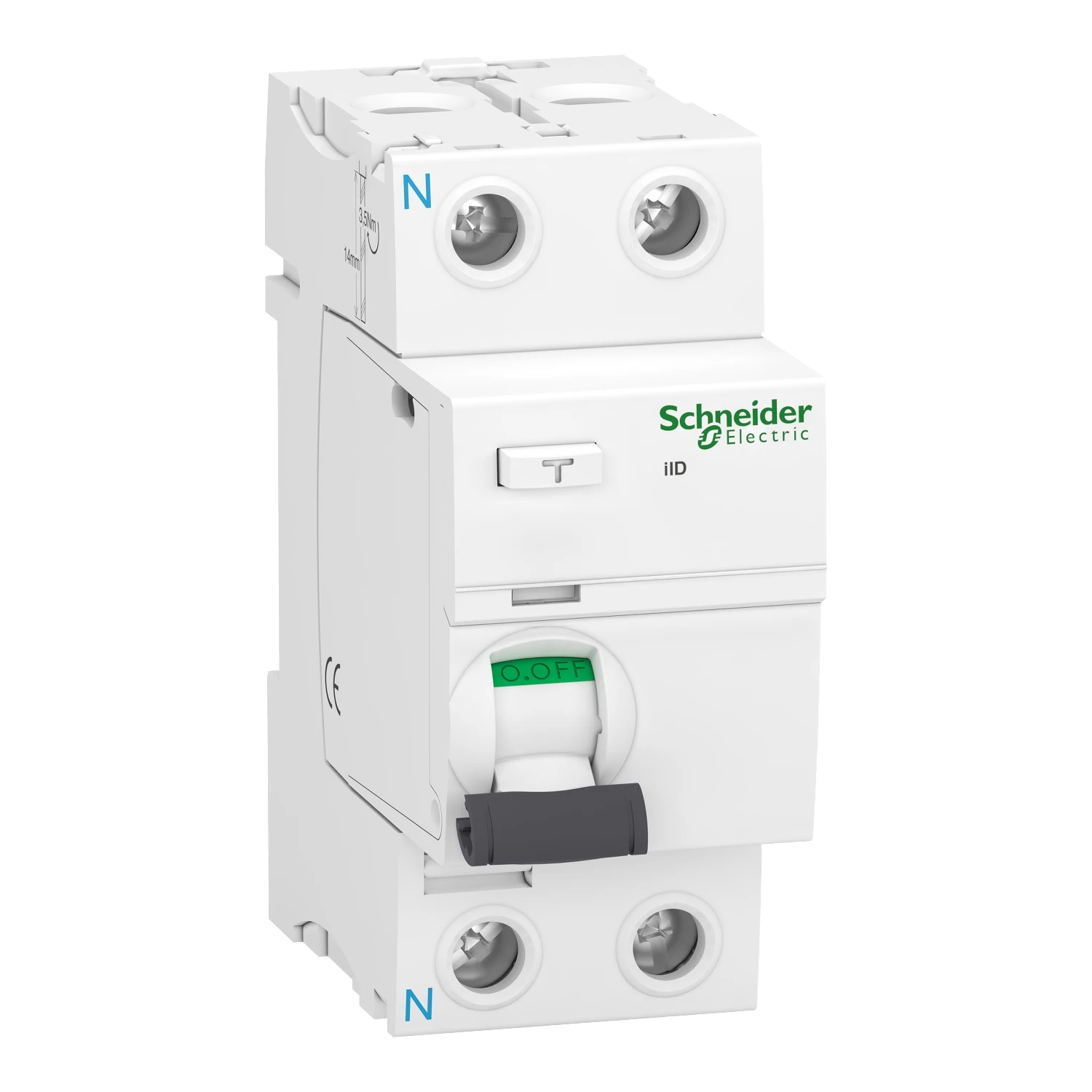

Acti9 2P 100A 300mA S Type RCD for Isoba · · · This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). · · It is a 2P circuit breaker with In rated current of 100A, AC type protection class and a 300mA earth leakage sensitivity. · · This product protects against electrical shock by indirect contact and fire hazards. · · It performs the function of disconnection of electrical circuits in case of earth fault. · · Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. · · This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance · · This product is compliant with EN/IEC 61008-1 standard. · · The (Im/I?m) rated breaking and making short circuit capacity is 1500A. The (Inc/I?c) conditional rated short circuit current is 10kA. · · The electrical endurance is up to 10000 cycles. The mechanical endurance is up to 20000 cycles. · · The Ue operational voltage is 220VAC to 240VAC.
Out of stock
Description
Technical Specifications Technical Specifications Residual current circuit breaker (RCCB) Rated fault current 300 A Pollution degree 3 Short-circuit breaking capacity (Icw) – kA Surge current capacity 3 kA Rated insulation voltage Ui 500 V Rated impulse-withstand voltage (Uimp) 6 kV Number of poles 2 Rated current 100 A Recess depth 73.5 mm Short-time delayed tripping Yes Additional equipment possible Yes Ambient temperature during operating 5 – 60 °C Connectable conductor cross section multi-wired 1 – 25 mm² Connectable conductor cross section solid-core 1 – 35 mm² Rated voltage 230 V Width in number of modular spacings 2 With interlocking device Yes Selective protection Yes
