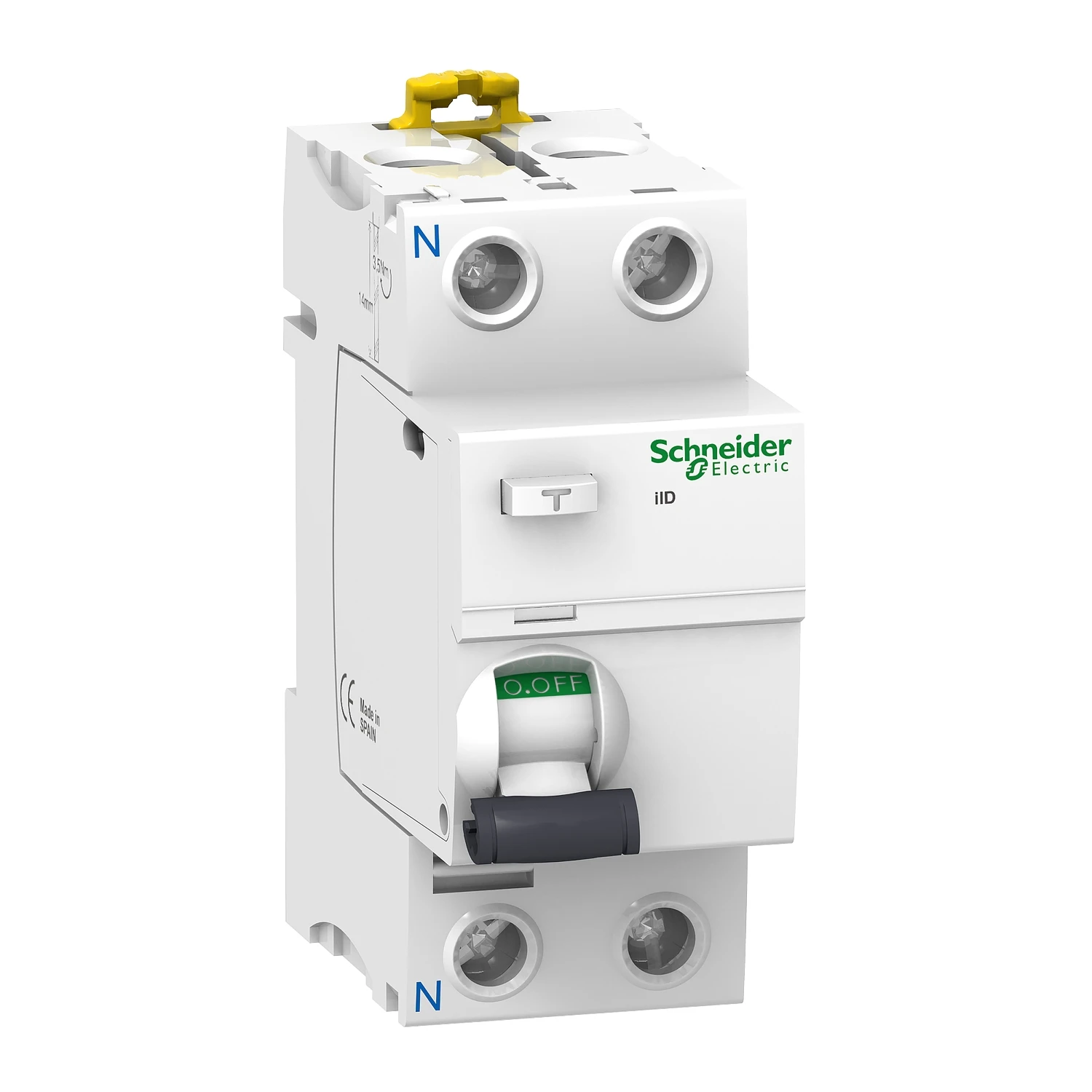

Schneider RCCB Double Pole Class AC 25A 30mA 36 x 91 x 73.5mm
£155.21 Incl. VAT
This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, 30mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 91mm x (D) 73.5mm. The weight is 0.21kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 85°C. · · · This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). · · It is a 2P circuit breaker with 25A In rated current, 30mA earth leakage sensitivity and AC type protection class. · · This product protects against electrical shock by direct or indirect contact and fire hazards. · · It performs the function of disconnection of electrical circuits in case of earth fault. · · Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. · · This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance · · This product is compliant with EN/IEC 61008-1 standard. · · The (Im/I?m) rated breaking and making short circuit capacity is 1500A. The (Inc/I?c) conditional rated short circuit current is 10kA. · · It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 220VAC to 240VAC.
10 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Residual current circuit breaker (RCCB) Recess depth 73.5 mm Width in number of modular spacings 2 Rated insulation voltage Ui 500 V Rated fault current 30 A Number of poles 2 Pollution degree 3 Connectable conductor cross section multi-wired 1 – 25 mm² Connectable conductor cross section solid-core 1 – 35 mm² Rated impulse-withstand voltage (Uimp) 6 kV Rated current 25 A Rated voltage 240 V Surge current capacity 0.25 kA Short-circuit breaking capacity (Icw) 10 kA Ambient temperature during operating -5 – 60 °C Selective protection No Short-time delayed tripping No With interlocking device No Additional equipment possible Yes · Technical Data Sheet – Click to Download
