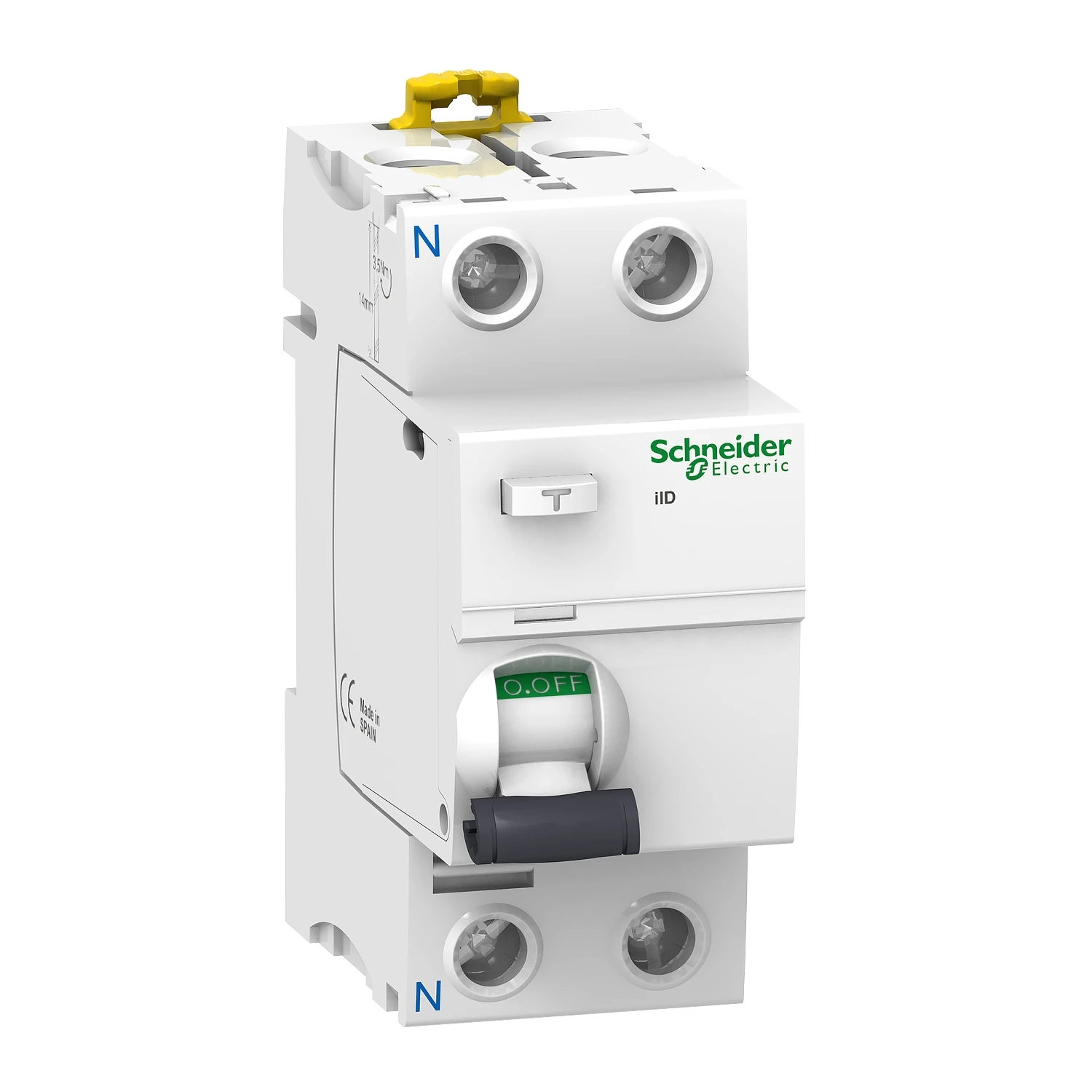

Schneider Electric RCCB Iid Double Pole A Type 63A 110V 30Ma
Schneider Electric RCCB Iid Double Pole A Type 63A 110V 30Ma
Schneider Electric RCCB Iid Double Pole A Type 63A 110V 30Ma - Image 2
Schneider Electric RCCB Iid Double Pole A Type 63A 110V 30Ma - Image 3

Schneider Electric RCCB Iid Double Pole A Type 63A 110V 30Ma

£225.50 Incl. VAT

ACTI 9 IID 63A 2P 30MA A-TYPE 110V RESID · · · This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). · · It is a 2P circuit breaker with 63A In rated current, 30mA earth leakage sensitivity and A type protection class. · · This product protects against electrical shock by direct or indirect contact and fire hazards. · · It performs the function of disconnection of electrical circuits in case of earth fault. · · Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. · · This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance · · This product is compliant with EN/IEC 61008-1 standard. · · The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. · · It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 110VAC.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9R08263 Category: Brand: Product Code: 2500867039

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) Pollution degree 3 Rated impulse-withstand voltage (Uimp) 6 kV Number of poles 2 Rated current 63 A Rated insulation voltage Ui 500 V Width in number of modular spacings 2 Surge current capacity 0.25 kA Rated fault current 30 A Rated voltage 230 V Short-circuit breaking capacity (Icw) 10 kA Connectable conductor cross section solid-core 1 – 35 mm² Recess depth 73.5 mm Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 60 °C Selective protection No Additional equipment possible Yes With interlocking device No Short-time delayed tripping No · Technical Data Sheet – Click to Download
