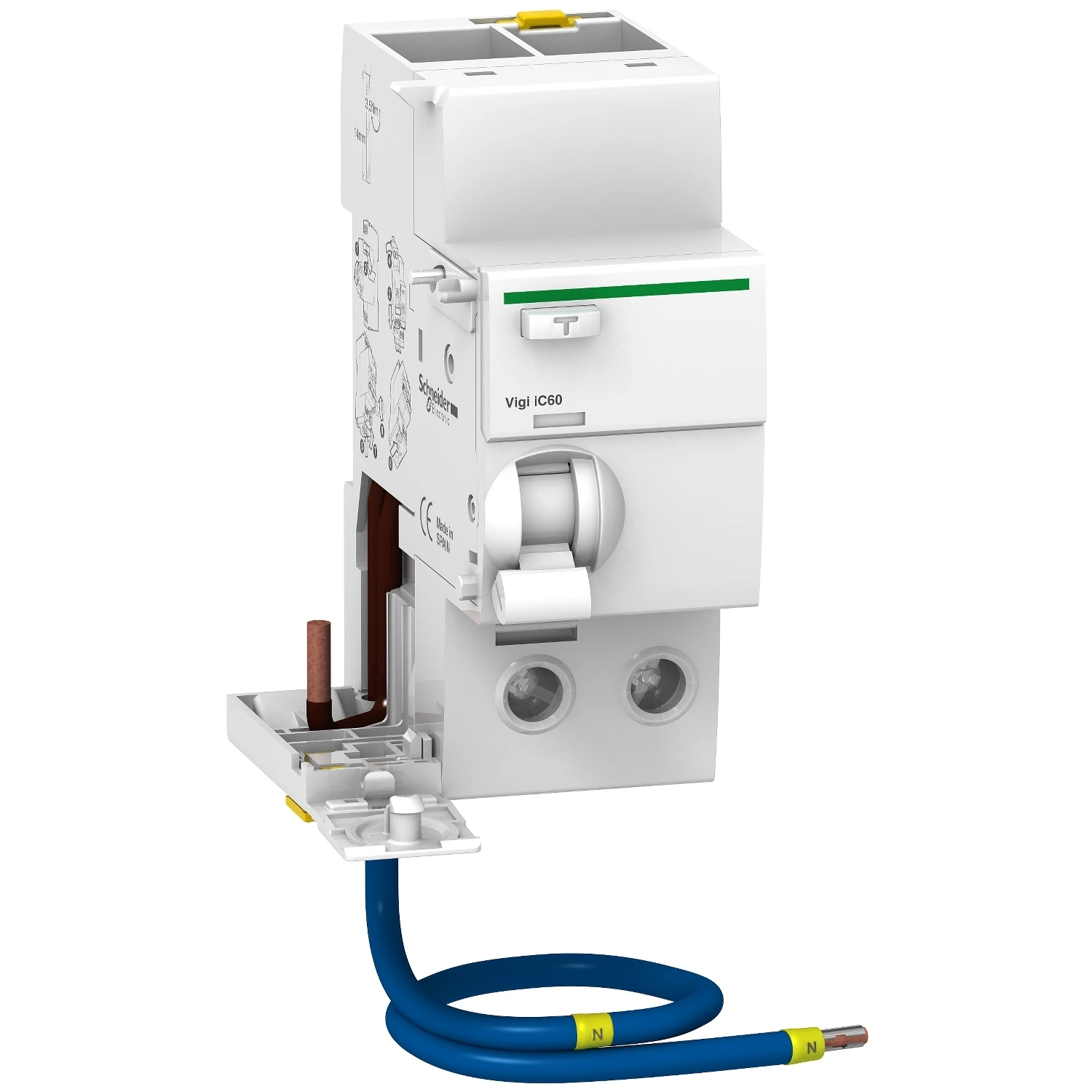

Schneider Electric RCD Vigi Ic60 Add-On Double Pole Type A 63A 30Ma 110V
£160.60 Incl. VAT
ACTI 9 VIGI IC60 63A 2P 30MA Type A 110v · · · This Acti9 Vigi iC60 is a modular add-on residual current devices. · · It is a 1P + N, rated current is 63A, operating voltage is 110VAC according to EN/IEC 61009-1. · · The earth leakage protection class is A type with a sensitivity of 30mA and a voltage independent technology. · · This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. · · A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face. · · It can be combined with Acti 9 iC60 circuit breaker to provide protection of persons and protection of installations. · · This product is compliant with EN 61009-1 and IEC 61009-1 standard. · · The Ue rated operational voltage is 120VAC. · · The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV.
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Residual current circuit breaker (RCCB) module Rated impulse-withstand voltage (Uimp) 6 kV Pollution degree 3 Rated insulation voltage Ui 500 V Surge current capacity 0.25 kA Number of poles 2 Max. delay time 0 ms Nominal current 63 A Nominal voltage 120 – 120 V Rated fault current 0.03 – 0.03 A Connectable conductor cross section multi-wired 1 – 25 mm² Connectable conductor cross section solid-core 1 – 35 mm² Ambient temperature during operating 5 – 60 °C With interlocking device No Delay adjustable No Rated fault current adjustable No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
