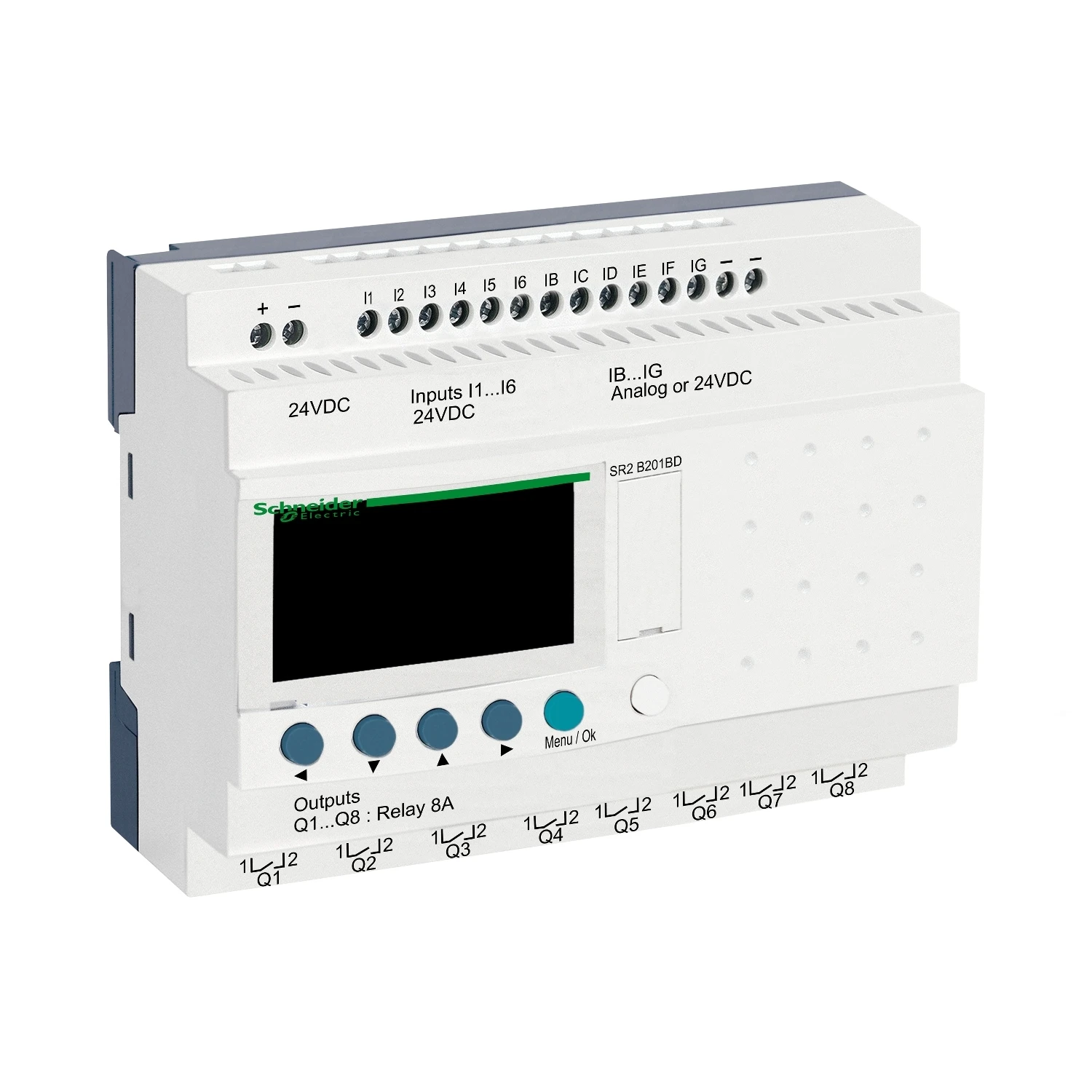

Schneider Zelio Logic Relay Smart Compact 12 Discrete Input 24V 8 Relay Output
Schneider Zelio Logic Relay Smart Compact 12 Discrete Input 24V 8 Relay Output
Schneider Zelio Logic Relay Smart Compact 12 Discrete Input 24V 8 Relay Output - Image 2
Schneider Zelio Logic Relay Smart Compact 12 Discrete Input 24V 8 Relay Output - Image 3

Schneider Zelio Logic Relay Smart Compact 12 Discrete Input 24V 8 Relay Output

£275.81 Incl. VAT

This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 20 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists. · · · This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 24V direct current. · · It has 20 inputs / outputs with screw-clamp terminals. · · It has compact design, allowing installation on DIN rail. · · It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. · · Its simple ladder programming makes it adapted for non-specialists. · · 24 DC supply voltage

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SR2B201BD Categories: , , Brand: Part Number: 2500237788

Description

Technical Specifications  Technical Specifications Logic module Number of digital outputs 8 Number of analogue outputs 0 Width 124.6 mm Number of analogue inputs 6 Number of HW-interfaces industrial Ethernet 0 Number of digital inputs 12 Switching current 8 A Number of HW-interfaces RS-485 0 Number of HW-interfaces RS-422 0 Number of HW-interfaces serial TTY 0 Number of HW-interfaces PROFINET 0 Depth 59.5 mm Height 90 mm Number of HW-interfaces Wireless 0 Number of HW-interfaces other 1 Number of HW-interfaces RS-232 1 Number of HW-interfaces USB 0 Number of HW-interfaces parallel 0 Supply voltage AC 50 Hz 0 – 0 V Supply voltage AC 60 Hz 0 – 0 V Supply voltage DC 24 – 24 V Suitable for safety functions No Display Yes With timer Yes Expandable No Supporting protocol for TCP/IP No Supporting protocol for ASI No Supporting protocol for MODBUS No Supporting protocol for Data-Highway No Supporting protocol for INTERBUS No With optical interface No Supporting protocol for KNX No Supporting protocol for PROFIBUS No Supporting protocol for CAN No Basic device Yes Front built-in possible Yes Appendant operation agent (Ex ib) No Rack-assembly possible No Appendant operation agent (Ex ia) No Wall mounting/direct mounting Yes Redundancy No Expansion device No Radio standard GSM No Radio standard WLAN 802.11 No Radio standard GPRS No Radio standard UMTS No Supporting protocol for other bus systems No Rail mounting possible Yes With relay output Yes IO link master No Radio standard Bluetooth No Supporting protocol for SafetyBUS p No Supporting protocol for PROFIsafe No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for EtherNet/IP No Supporting protocol for DeviceNet Safety No Supporting protocol for INTERBUS-Safety No Supporting protocol for Foundation Fieldbus No Supporting protocol for SERCOS No Supporting protocol for PROFINET CBA No Supporting protocol for LON No Supporting protocol for PROFINET IO No Supporting protocol for DeviceNet No Supporting protocol for SUCONET No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192633
