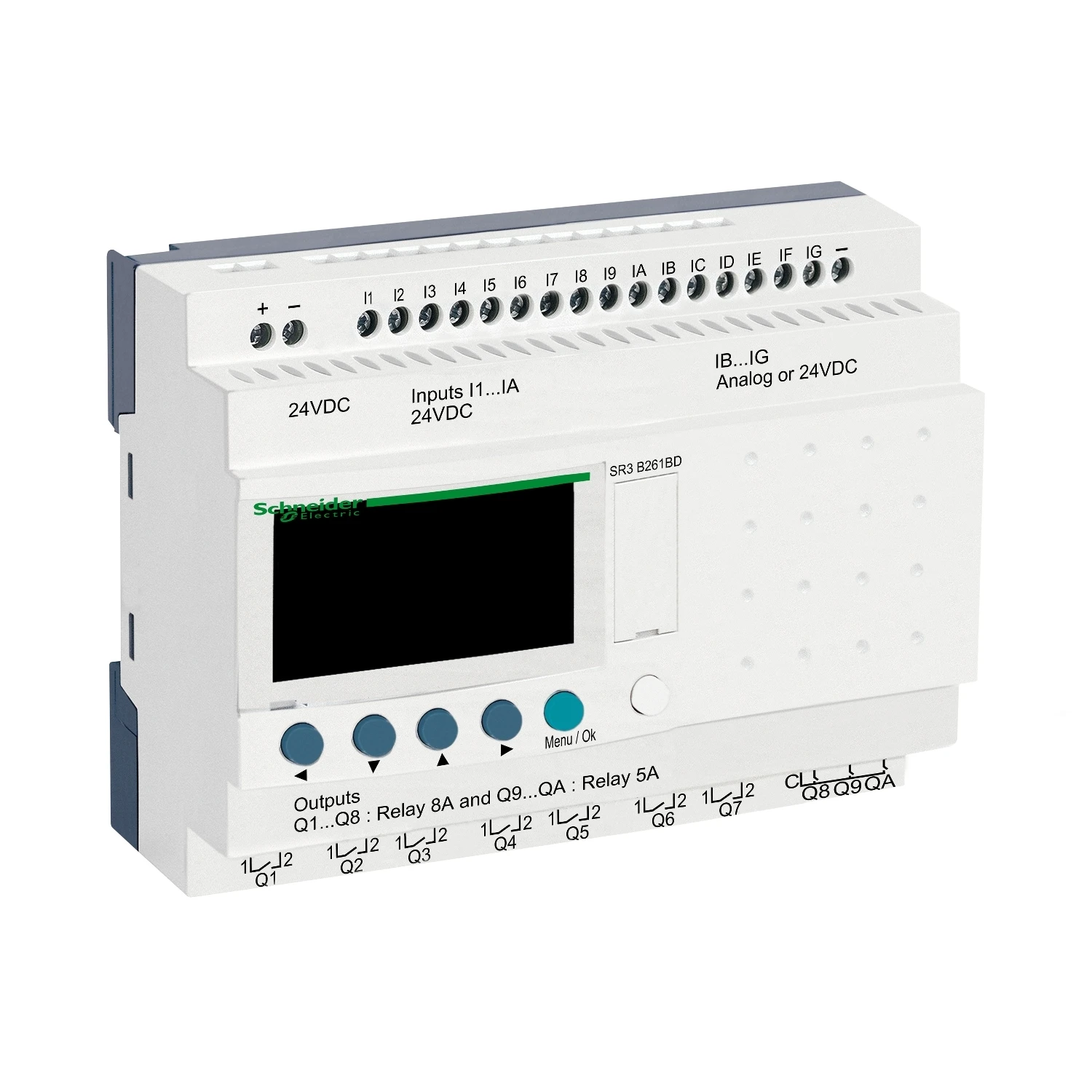

Schneider Zelio Logic Relay Smart Modular 16 Discrete Input 24Vdc 10 Relay
Schneider Zelio Logic Relay Smart Modular 16 Discrete Input 24Vdc 10 Relay
Schneider Zelio Logic Relay Smart Modular 16 Discrete Input 24Vdc 10 Relay - Image 2
Schneider Zelio Logic Relay Smart Modular 16 Discrete Input 24Vdc 10 Relay - Image 3

Schneider Zelio Logic Relay Smart Modular 16 Discrete Input 24Vdc 10 Relay

£330.94 Incl. VAT

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists. · · · This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. · · It has 26 inputs / outputs with screw-clamp terminals. · · It has compact design, allowing installation on DIN rail. · · It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. · · Its simple ladder programming makes it adapted for non-specialists.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SR3B261BD Categories: , , Brand: Part Number: 2500238025

Description

Technical Specifications  Technical Specifications Logic module Width 124.6 mm Height 90 mm Depth 59.5 mm Number of HW-interfaces RS-422 0 Number of analogue inputs 6 Number of HW-interfaces serial TTY 0 Number of HW-interfaces USB 0 Number of digital inputs 16 Number of digital outputs 10 Number of analogue outputs 0 Number of HW-interfaces other 1 Number of HW-interfaces RS-485 0 Number of HW-interfaces RS-232 1 Number of HW-interfaces parallel 0 Switching current 8 A Number of HW-interfaces industrial Ethernet 0 Supply voltage AC 50 Hz – – – V Suitable for safety functions No Display Yes Expandable Yes Supply voltage DC 24 – 24 V Supply voltage AC 60 Hz – – – V Number of HW-interfaces PROFINET 0 Number of HW-interfaces Wireless 0 Supporting protocol for KNX No Supporting protocol for ASI No Supporting protocol for CAN No With optical interface No With timer Yes Supporting protocol for TCP/IP No Supporting protocol for PROFIBUS No Supporting protocol for PROFINET IO No Supporting protocol for SUCONET No Radio standard GPRS No Radio standard GSM No Radio standard WLAN 802.11 No Supporting protocol for Data-Highway No Supporting protocol for INTERBUS No Supporting protocol for DeviceNet No Supporting protocol for MODBUS No Radio standard Bluetooth No Supporting protocol for SafetyBUS p No Supporting protocol for PROFIsafe No Supporting protocol for INTERBUS-Safety No Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for EtherNet/IP No Supporting protocol for Foundation Fieldbus No Supporting protocol for LON No With relay output Yes Expansion device No Basic device Yes Appendant operation agent (Ex ib) No Front built-in possible Yes Supporting protocol for PROFINET CBA No Supporting protocol for SERCOS No Rack-assembly possible No Appendant operation agent (Ex ia) No Rail mounting possible Yes Wall mounting/direct mounting Yes Supporting protocol for other bus systems No Redundancy No IO link master No Radio standard UMTS No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192633
