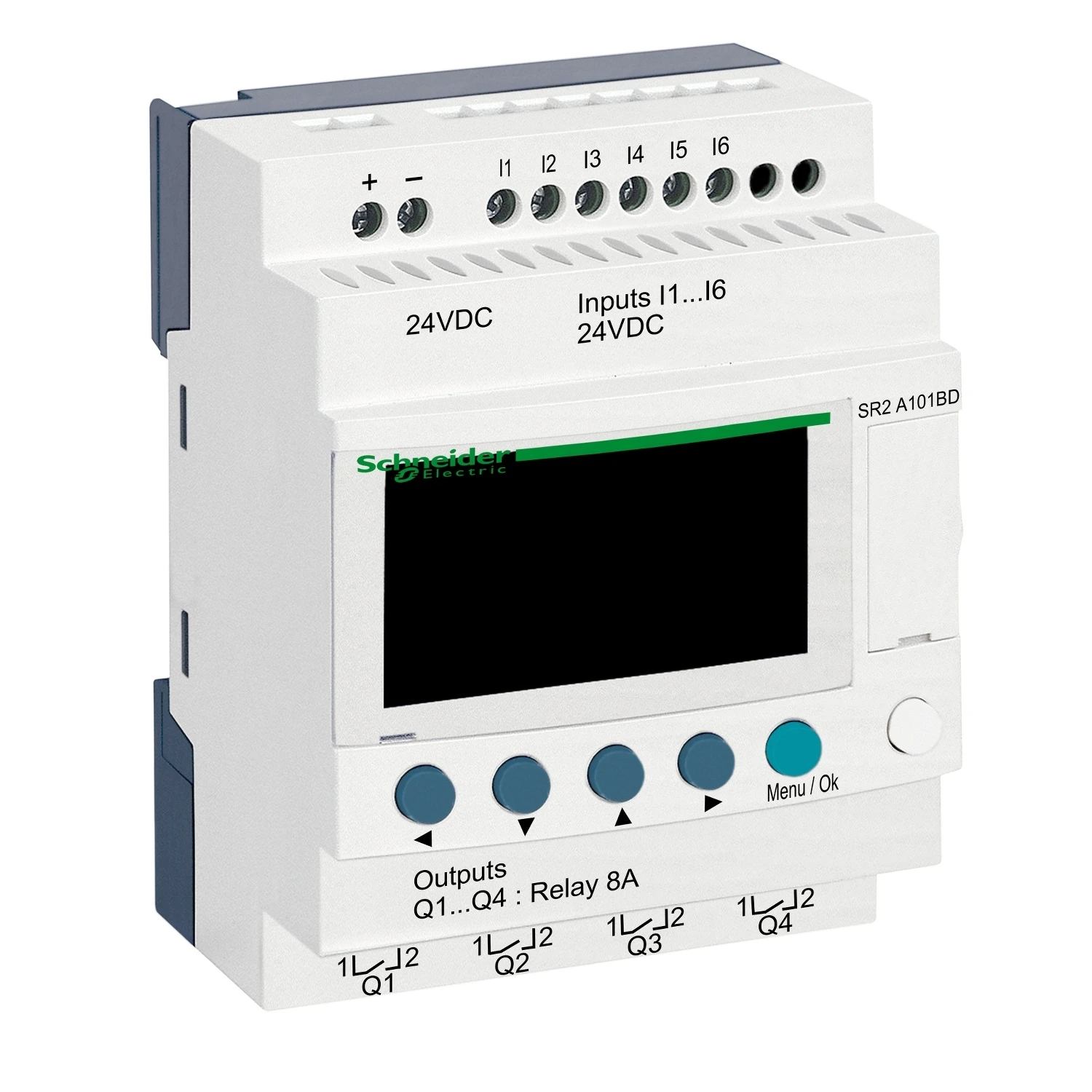

Schneider Zelio Logic Standard 6-In/4-Out Module Smart Relay 24V DC

£181.79 Incl. VAT

This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 10 inputs / outputs with screw-clamp terminals and has an integrated LCD display. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists. · · · Zelio Logic Compact range: 3 monobloc models with 10, 12 or 20 I/O and · · versions available with or without display and buttons. · · Modular range: 2 bases with 10 or 26 I/O that can be extended. · · 6, 10 or 14 discrete I/O and 4 analog I/O extension modules. · · Extreme compactness: up to 26 I/O within 124.6 x 90 x 59 mm. · · Supply voltage of bases: 12VDC, 24VDC, 24VAC, 100… 240VAC. · · Large back-lit LCD display: 4 lines of 18 characters and 1 line of icons, contextual navigation using 6 buttons. · · Serial or USB connecting cables for smart relay/PC connection. · · Connection interface (smart relay/PC) for Bluetooth wireless connection. · · Remote monitoring and control of installations using Modem Communication Interface (Analog or GSM).

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SR2A101BD Categories: , , Brand: Part Number: 2500239361

Description

Technical Specifications  Technical Specifications Logic module Height 90 mm Width 71.2 mm Number of HW-interfaces Wireless 0 Number of digital inputs 6 Number of digital outputs 4 Depth 59.5 mm Number of HW-interfaces industrial Ethernet 0 Number of analogue inputs 0 Number of analogue outputs 0 Switching current 8 A Number of HW-interfaces RS-422 0 Number of HW-interfaces RS-485 0 Number of HW-interfaces serial TTY 0 Number of HW-interfaces USB 0 Number of HW-interfaces other 1 With timer No Supply voltage DC 24 – 24 V Supply voltage AC 60 Hz – – – V Supply voltage AC 50 Hz – – – V Number of HW-interfaces PROFINET 0 Number of HW-interfaces RS-232 1 Number of HW-interfaces parallel 0 Expandable No Suitable for safety functions No With optical interface No Supporting protocol for TCP/IP No Display Yes Supporting protocol for PROFIBUS No Supporting protocol for ASI No Supporting protocol for CAN No Front built-in possible Yes Supporting protocol for KNX No Basic device Yes Appendant operation agent (Ex ib) No Expansion device No With relay output Yes Rack-assembly possible No Appendant operation agent (Ex ia) No Supporting protocol for other bus systems No Radio standard GPRS No Radio standard GSM No Radio standard UMTS No IO link master No Redundancy No Wall mounting/direct mounting Yes Rail mounting possible Yes Radio standard Bluetooth No Supporting protocol for EtherNet/IP No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for DeviceNet Safety No Supporting protocol for INTERBUS-Safety No Supporting protocol for PROFIsafe No Supporting protocol for SafetyBUS p No Radio standard WLAN 802.11 No Supporting protocol for Foundation Fieldbus No Supporting protocol for SERCOS No Supporting protocol for PROFINET CBA No Supporting protocol for LON No Supporting protocol for PROFINET IO No Supporting protocol for SUCONET No Supporting protocol for DeviceNet No Supporting protocol for INTERBUS No Supporting protocol for Data-Highway No Supporting protocol for MODBUS No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192633
