FULL-5958
4 product images available
Connector Blocks

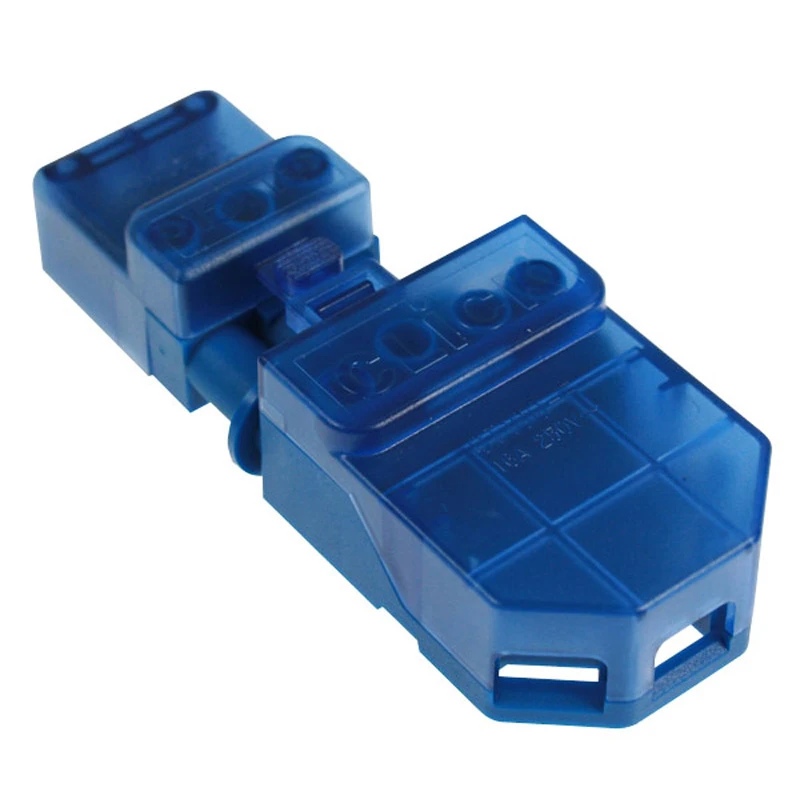

Click Flow Connector 3 Pin Pull Apart 20A 250V

Brand: ClickProduct code: CT101CGo Magpie Ref: 5060062295254

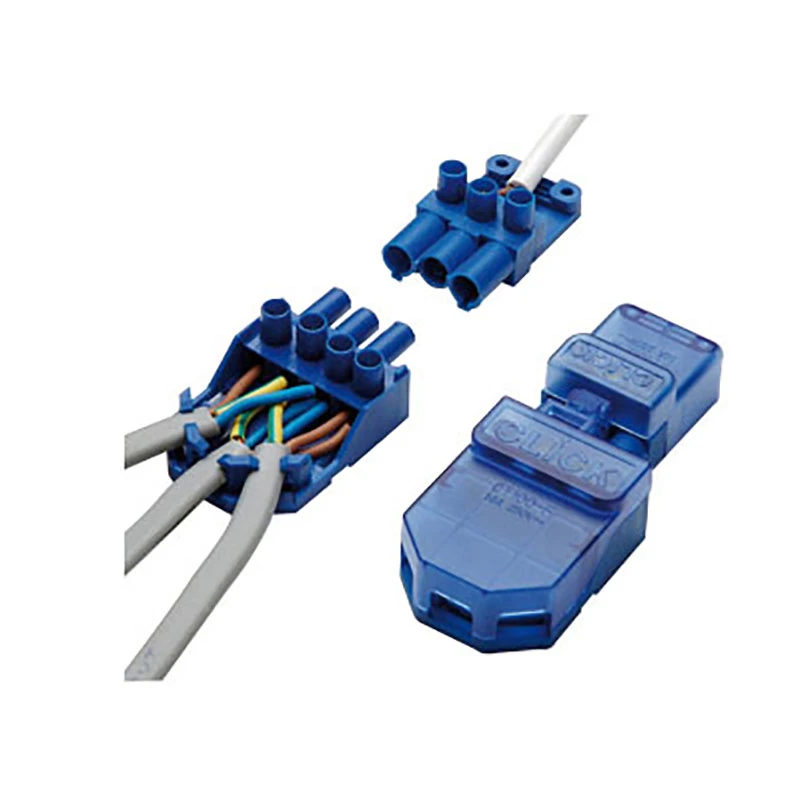

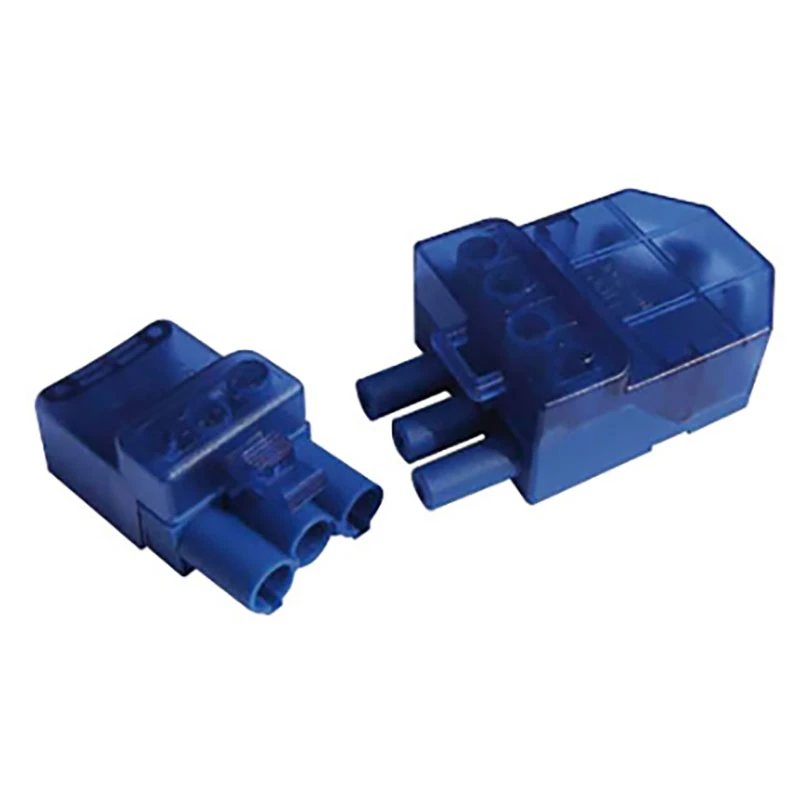

CT101C is a plug-in connector with increased load handling that has been designed specially to help contractors create more complex lighting installations quickly, easily and safely. It features quick connection, configuration and re-configuration of circuits, primarily intended for lighting. · · · Male and female connector · · LSOH Fire Resistant silicone insulation · · LSOH Fire Resistant silicone insulation · · Plain annealed solid copper conductors 1.0mm – 2.5mm · · Plain annealed stranded copper conductors for 4.0mm

£3.91inc VAT£3.26 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Plug-in connector for plug-in building installation Height 23 mm Number of connections per pole 3 Rated surge voltage 4 kV Width 40 mm Number of poles 3 Rated current 20 A Rated voltage 250 V Length 105 mm Connection cross section (fine-strand) 0.75 – 2.5 mm² With strain relief No Connection cross section (solid-core) 0.75 – 2.5 mm² Halogen free No Mechanical coding No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
