Selector Switch Illuminable 22mm
£13.00 Incl. VAT

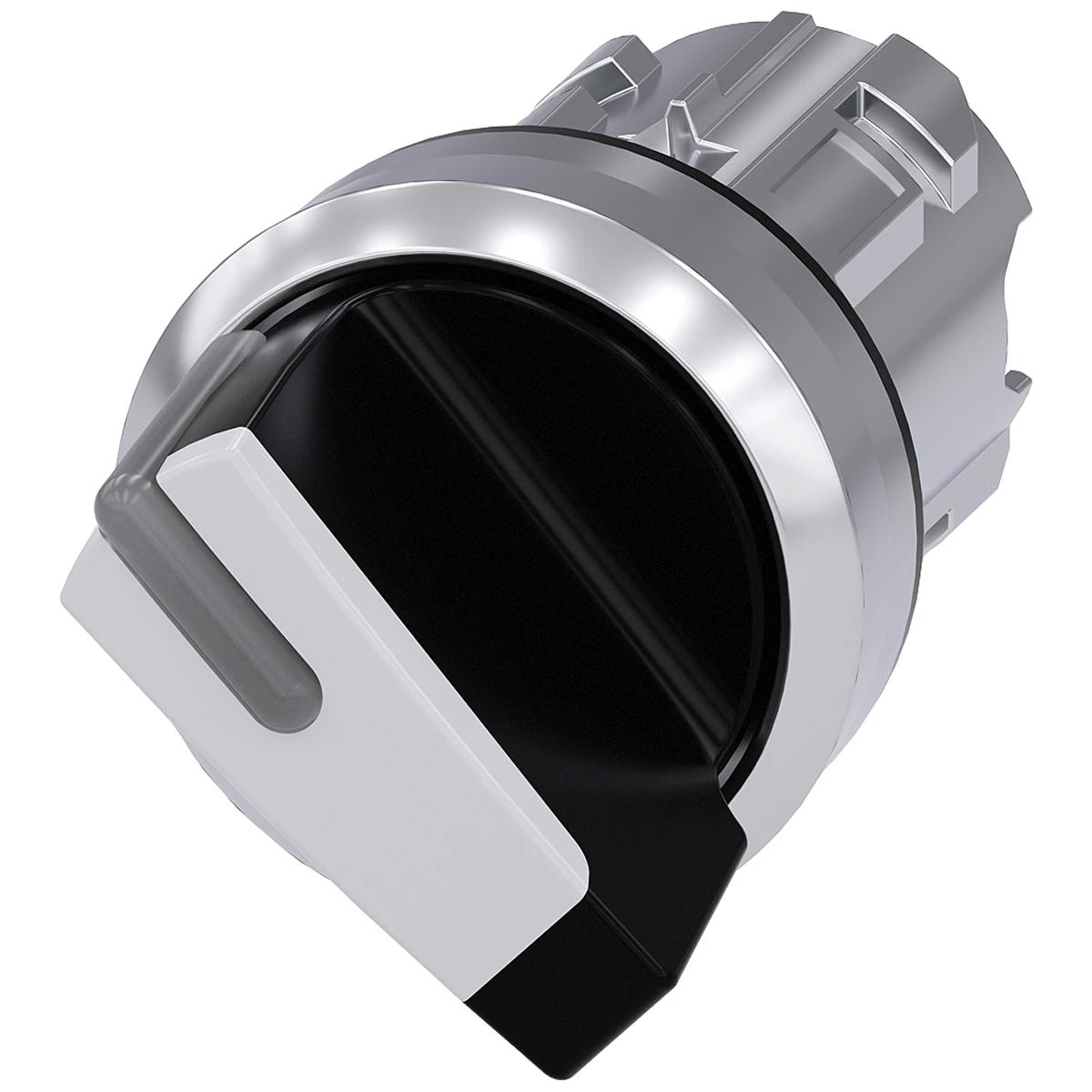

Siemens standard round illuminable selector switch made up of a plastic actuator and handle surrounded by a high gloss silver colour metal ring. The mounting diameter is 22.3mm whereas the actuating element has a 32.3mm diameter. · · · Manner of function: Maintained · · Actuating angle: 90° · · Number of switching positions: 2 · · Mechanical sevice life: 300000 cycles · · Maximum operating frequency: 1800 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C
Out of stock
Description
Technical Specifications Technical Specifications Front element for selector switch Construction type lens Rectangular Colour indicator light cap White Colour control element White Material front ring Metal Hole diameter 22.3 mm Type of control element Toggle Width opening 32.3 mm Height opening 28.8 mm Number of switch positions 2 Spring-return No With front ring Yes Switching function latching No Suitable for illumination Yes · Technical Data Sheet – Click to Download
