Sensor Inductive Plastic Normally Open+Normally Closed Flush Mountd
Sensor Inductive Plastic Normally Open+Normally Closed Flush Mountd
Sensor Inductive Plastic Normally Open+Normally Closed Flush Mountd - Image 2
Sensor Inductive Plastic Normally Open+Normally Closed Flush Mountd - Image 3
Sensor Inductive Plastic Normally Open+Normally Closed Flush Mountd - Image 4

Sensor Inductive Plastic Normally Open+Normally Closed Flush Mountd

£99.34 Incl. VAT

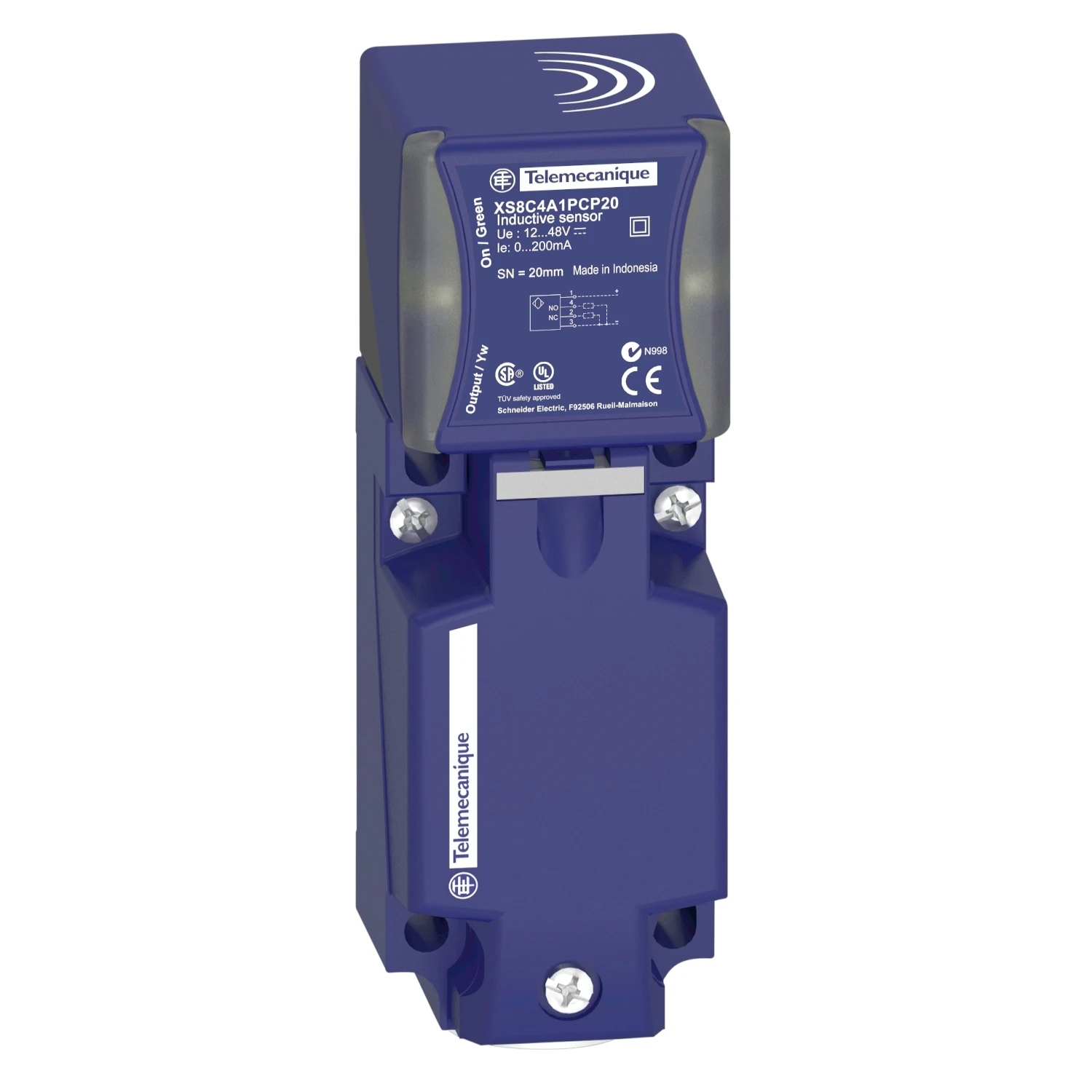

This XS turret head (40 x 40 x 117 mm) with an inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 48V DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. It can operate in very cold (-25°C) and hot environments (+70°C). Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified. · · · This XS turret head (40 x 40 x 117 mm) with an inductive proximity sensor has a PBT case. · · It has a supply voltage of 12V to 48V DC. · · This general purpose flat inductive proximity sensor has an increased range. · · It is mountable directly on a surface, thanks to 4 screws fixing points. · · It provides mechanical resistance and chemical withstand thanks to PBT case. · · It has a yellow LED for output status indication for easier sensor setup and troubleshooting. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. · · It is CCC, ECOLAB, CSA, UL certified.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS8C4A1PCP20 Categories: , , Brand: Part Number: 2500681104

Description

Technical Specifications  Technical Specifications Inductive proximity switch SIL according to IEC 61508 None Interface type None Explosion safety category for gas None Type of interface for safety communication None Performance level acc. to EN ISO 13849-1 None Explosion safety category for dust None Interference resistance to magnetic fields Immune against magnetic DC-field Type of electric connection Screw connection Voltage type AC/DC Type of actuation Metallic Target Type of switching output PNP/PNP Mechanical mounting condition for sensor Concise Construction type housing Cuboid Housing material Plastic Number of protected semiconductor outputs 2 Number of contact energized outputs with signalling function 0 Switching frequency 300 Hz Height of sensor 40 mm Length of sensor 40 mm Number of protected contact energized outputs 0 Diameter sensor – mm Max. output current at protected output 200 mA Number of semiconductor outputs with signalling function 2 Width sensor 117 mm Switching distance 20 mm Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 48 V Rated control supply voltage at DC 12 – 48 V Compression-resistant No Suitable for safety functions No With monitoring function downstream switching devices No Cascadable No · Technical Data Sheet – Click to Download
