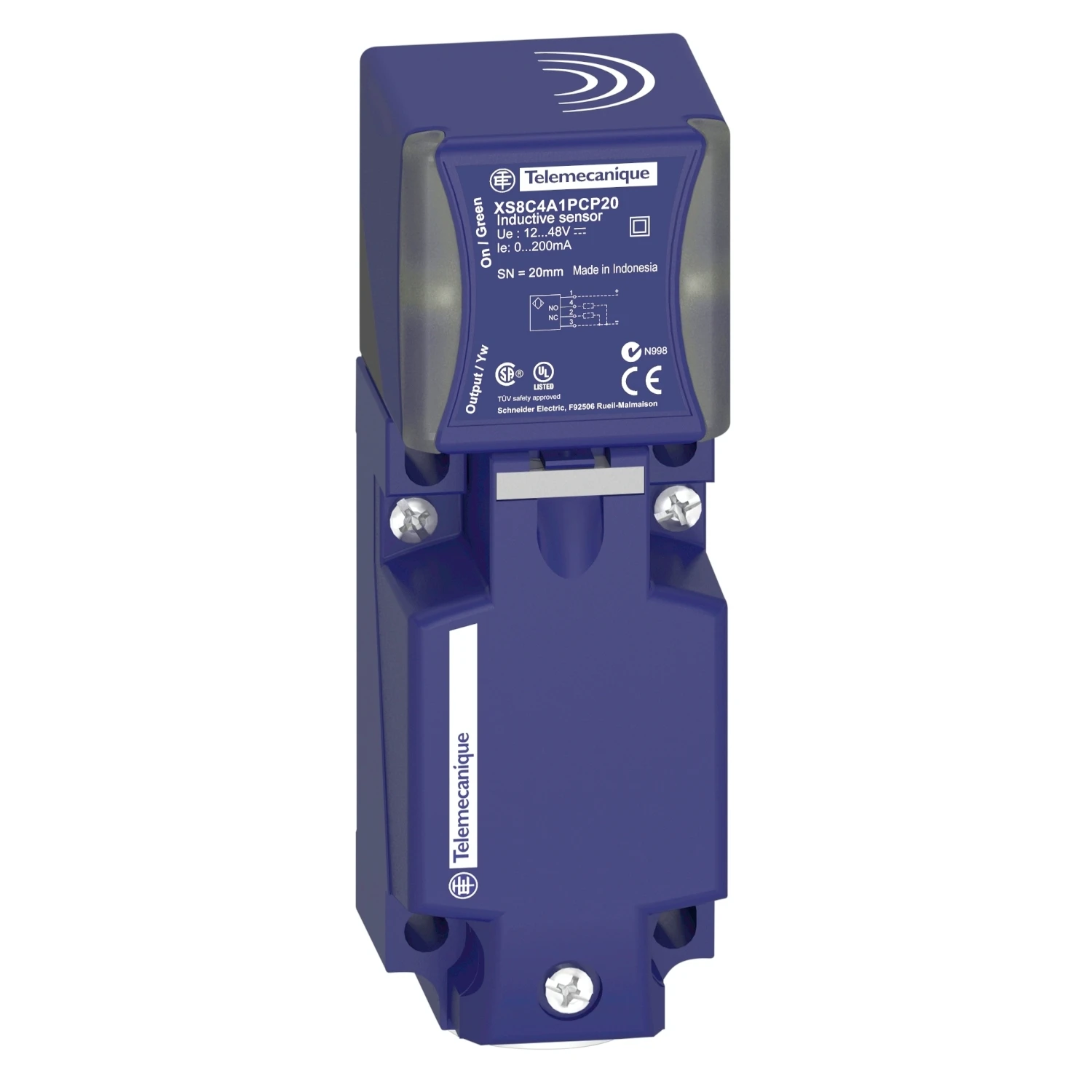

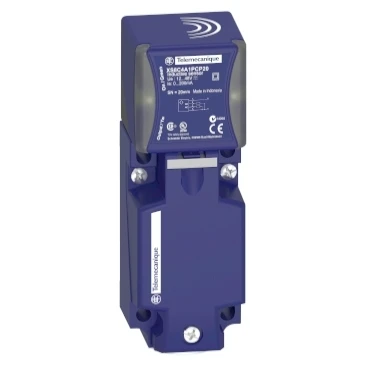

Telemecanique Sensors Sensor Inductive Proximity 2 Wire 15mm 117mm 24-240V AC/DC
Telemecanique Sensors Sensor Inductive Proximity 2 Wire 15mm 117mm 24-240V AC/DC
Telemecanique Sensors Sensor Inductive Proximity 2 Wire 15mm 117mm 24-240V AC/DC - Image 2
Telemecanique Sensors Sensor Inductive Proximity 2 Wire 15mm 117mm 24-240V AC/DC - Image 3
Telemecanique Sensors Sensor Inductive Proximity 2 Wire 15mm 117mm 24-240V AC/DC - Image 4

Telemecanique Sensors Sensor Inductive Proximity 2 Wire 15mm 117mm 24-240V AC/DC

£91.97 Incl. VAT

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a 40mm x 40mm x 117mm format sensor, flush mountable in metal. It features a plastic case with a plug-in 5 position turret head and a ISO M20 cable entry. It has a sensing distance of 15mm. Two-wire, AC and DC supply, 24V to 240V, NO or NC function programmable. · · · The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. · · The advantages of inductive detection are numerous, no physical contact with the object to be detected. · · Thus avoiding wear and enabling detection of fragile or freshly painted objects. · · High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). · · This product is a 40mm x 40mm x 117mm format sensor, flush mountable in metal. · · It features a plastic case with a plug-in 5 position turret head and a ISO M20 cable entry. · · It has a sensing distance of 15mm. · · Two-wire, AC and DC supply, 24V to 240V, NO or NC function programmable.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS7C4A1MPP20 Categories: , , , , , Brand: Product Code: 2500683785

Description

Technical Specifications  Technical Specifications Inductive proximity switch SIL according to IEC 61508 None Explosion safety category for gas None Interface type None Type of interface for safety communication None Performance level acc. to EN ISO 13849-1 None Explosion safety category for dust None Housing material Plastic Mechanical mounting condition for sensor Concise Type of switch function Programmable/configurable Construction type housing Cuboid Type of switching output 2-wire Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of actuation Metallic Target Voltage type AC/DC Type of electric connection Screw connection Switching frequency 50 Hz Number of contact energized outputs with signalling function 0 Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Diameter sensor – mm Width sensor 40 mm Number of semiconductor outputs with signalling function 1 Length of sensor 117 mm Height of sensor 40 mm Max. output current at protected output 200 mA Switching distance 15 mm Supply voltage 24 – 240 V Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Rated control supply voltage at DC 24 – 240 V Suitable for safety functions No With monitoring function downstream switching devices No Cascadable No Compression-resistant No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224949
