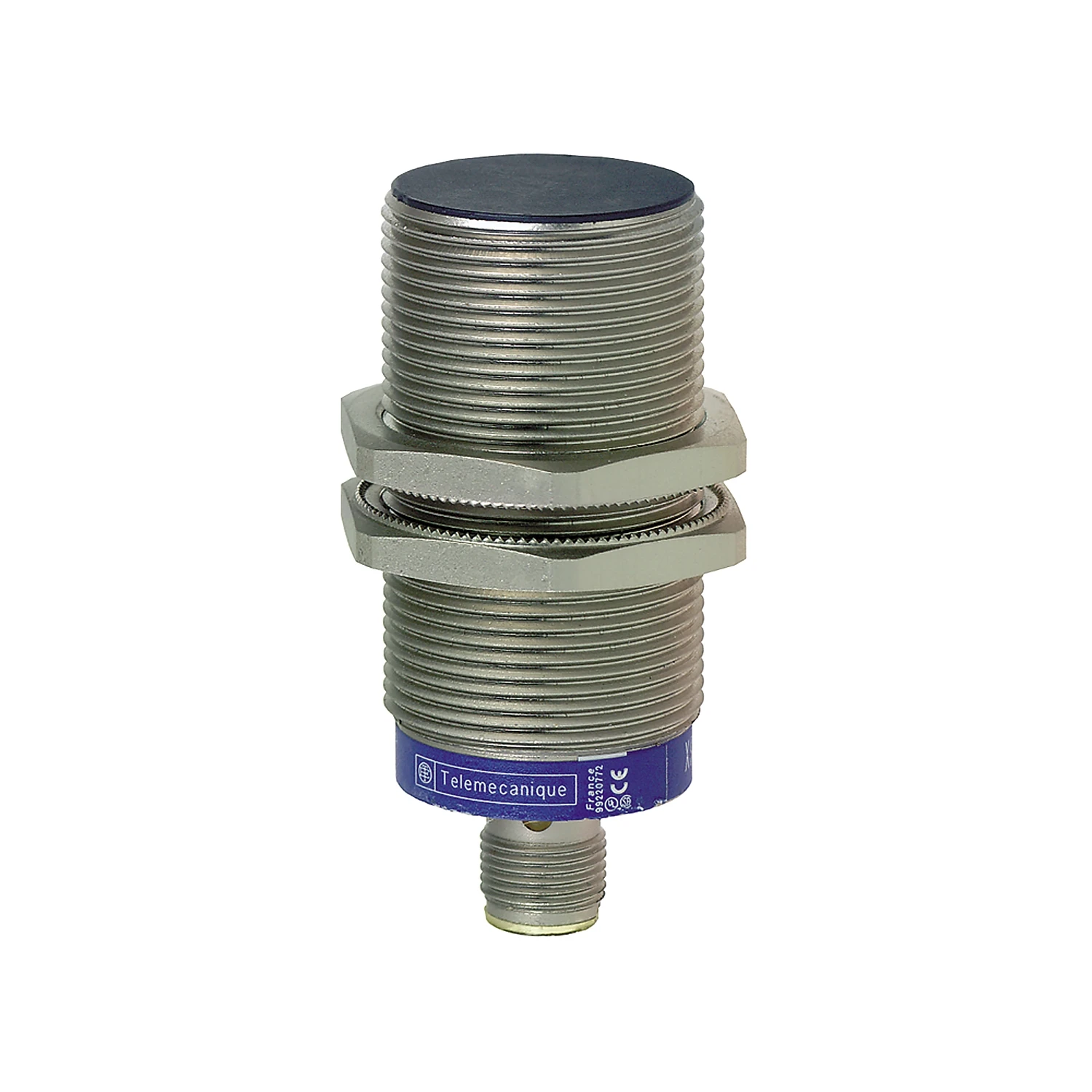

Sensor Proximity M30 Pnp NO 15mm M12 Connector
Sensor Proximity M30 Pnp NO 15mm M12 Connector
Sensor Proximity M30 Pnp NO 15mm M12 Connector - Image 2
Sensor Proximity M30 Pnp NO 15mm M12 Connector - Image 3
Sensor Proximity M30 Pnp NO 15mm M12 Connector - Image 4

Sensor Proximity M30 Pnp NO 15mm M12 Connector

£81.13 Incl. VAT

This XS cylindrical (M30 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CSA, UL certified. · · · This XS cylindrical (M30 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 12V to 48V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. · · IP65, IP67 and IP69K protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · It has a standard M12 connector, compatible with all existing market sensor cabling. · · It is CSA, UL certified.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS630B1PAM12 Categories: , , Brand: Part Number: 2500135970

Description

Technical Specifications  Technical Specifications Inductive proximity switch Type of interface for safety communication None SIL according to IEC 61508 None Explosion safety category for gas None Interface type None Explosion safety category for dust None Performance level acc. to EN ISO 13849-1 None Coating housing Nickel-plated Construction type housing Cylinder, screw-thread Mechanical mounting condition for sensor Concise Type of electric connection Connector M12 Housing material Metal Type of switching output PNP/PNP Width sensor – mm Number of protected semiconductor outputs 0 Number of semiconductor outputs with signalling function 1 Switching frequency 500 Hz Voltage type AC/DC Type of actuation Metallic Target Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of switch function Normally open contact Diameter sensor 30 mm Rated control supply voltage at AC 50 Hz – V Length of sensor 73.3 mm Max. output current at protected output 200 mA Switching distance 15 mm Height of sensor – mm Number of contact energized outputs with signalling function 0 Number of protected contact energized outputs 0 Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 48 V Rated control supply voltage at DC 12 – 48 V Cascadable No With monitoring function downstream switching devices No Compression-resistant No Suitable for safety functions No · Technical Data Sheet – Click to Download
