Sensor Proximity NO 2 Wire Flush 15mm Pre-Cabled 2m Cable
£108.31 Incl. VAT

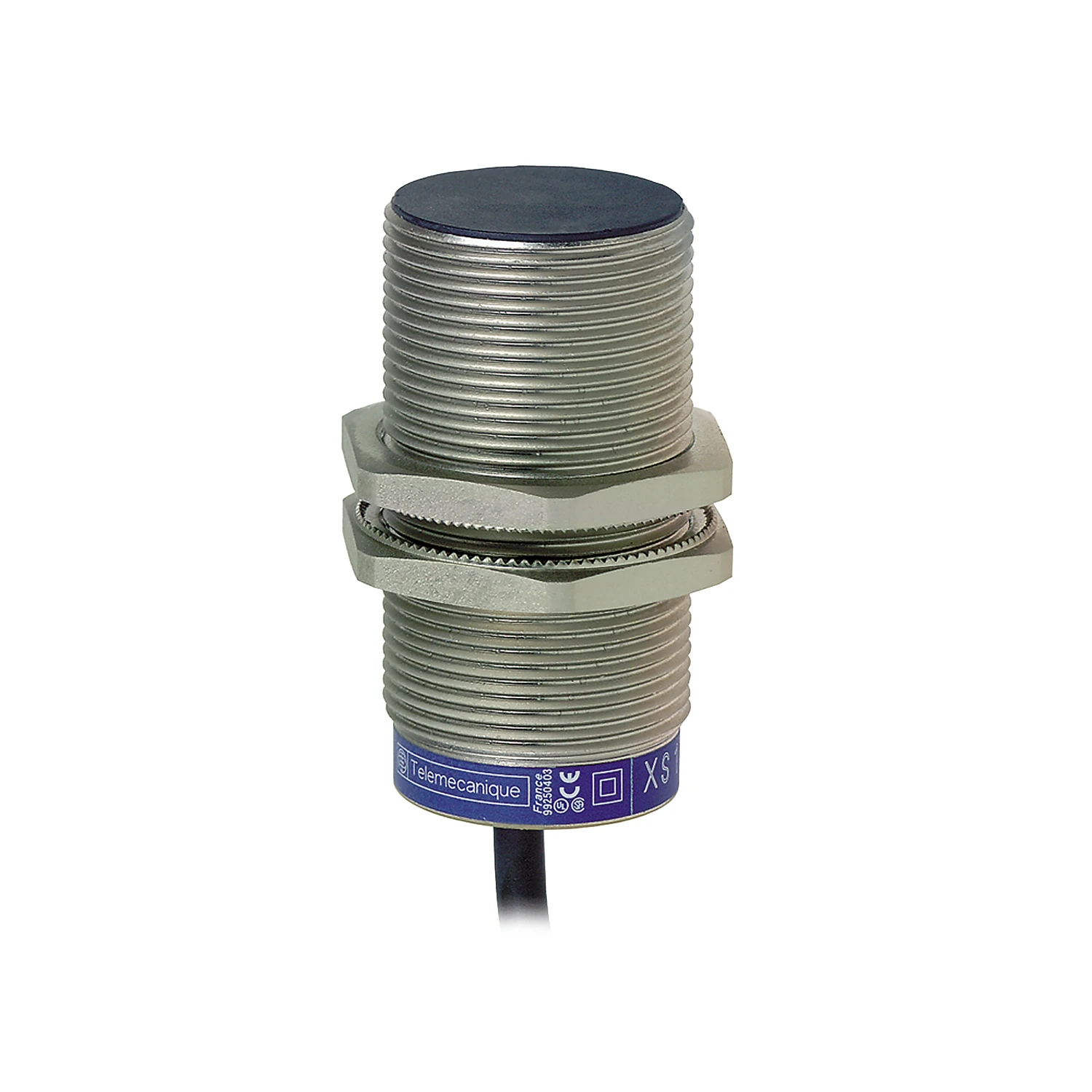

This XS cylindrical (M30 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 24V to 240V AC/DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65 and IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is CSA, UL certified. · · · This XS cylindrical (M30 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 24V to 240V AC/DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · It has an annular LED for easy sensor status viewing, setup and troubleshooting. · · IP65 and IP68 protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · It features double insulation for better people and system protection from electrical shocks. · · It is CSA, UL certified.
5 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Inductive proximity switch Performance level acc. to EN ISO 13849-1 None Type of interface for safety communication None SIL according to IEC 61508 None Interface type None Explosion safety category for dust None Explosion safety category for gas None Type of switching output 2-wire Coating housing Nickel-plated Mechanical mounting condition for sensor Concise Housing material Metal Number of protected semiconductor outputs 0 Type of electric connection Cable radial Type of actuation Metallic Target Voltage type AC/DC Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of switch function Normally open contact Construction type housing Cylinder, screw-thread Diameter sensor 30 mm Switching frequency 500 Hz Number of protected contact energized outputs 0 Max. output current at protected output 200 mA Length of sensor 61.6 mm Number of semiconductor outputs with signalling function 0 Number of contact energized outputs with signalling function 0 Height of sensor – mm Width sensor – mm Switching distance 15 mm Supply voltage 24 – 240 V Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Rated control supply voltage at DC 24 – 240 V With monitoring function downstream switching devices No Compression-resistant No Cascadable No Suitable for safety functions No · Technical Data Sheet – Click to Download
